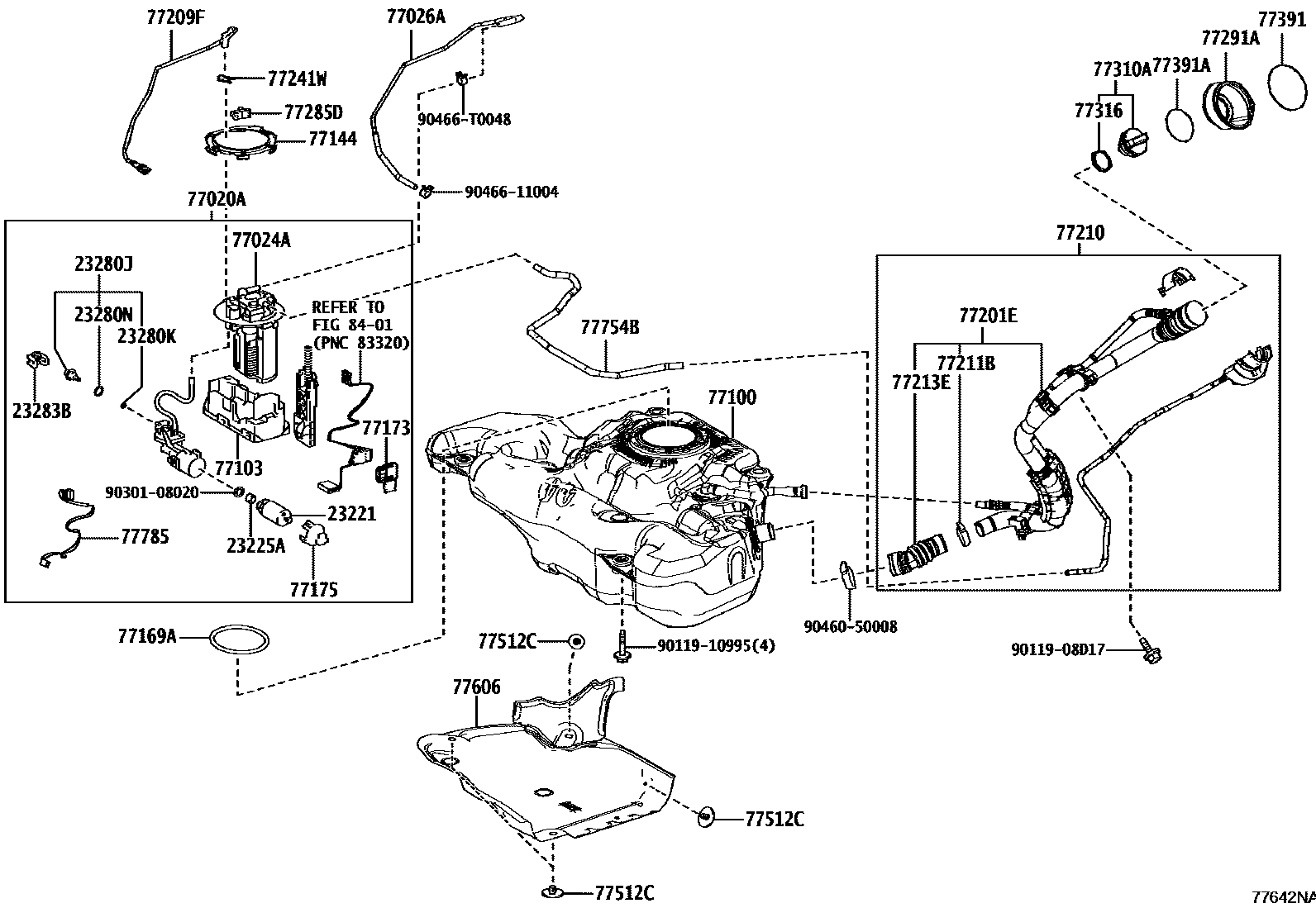

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1FUEL LID OPENER

23221PUMP, FUEL

main23221-37040i2ZRFE..ZSG10202402

main23221-47031i2ZRFXE..ZVG10202312

23225ASPACER, FUEL PUMP

main23225-21020i2ZR#..ZSG10,ZVG10202312

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2ZR#..ZSG10,ZVG10202312

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2ZR#..ZSG10,ZVG10202312

23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2

main90301-15024i2ZR#..ZSG10,ZVG10202312

23283BHOLDER, FUEL PRESSURE REGULATOR

main23283-37010i2ZR#..ZSG10,ZVG10202312

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0A030iZVG10202312

main77020-0A040iZSG10202402

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-16010iZSG10,ZVG10202312

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-0A030iZVG10202312

main77026-0A040iZSG10202402

77100TANK ASSY, FUEL

main77001-0A030iZVG10202312

main77001-0A040iZSG10202402

77103SUB-TANK SUB-ASSY, FUEL

main77103-12150iZSG10,ZVG10202312

77144RETAINER, FUEL PUMP GAUGE

main77144-0K040iZSG10,ZVG10202312

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0K030iZSG10,ZVG10202312

77173BRACKET, FUEL GAGE

main77173-12010iZVG10202312

main77173-12020iZSG10202402

77175SUPPORT, FUEL SUCTION, NO.2

main77175-12040iZSG10,ZVG10202312

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-0A030iZSG10,ZVG10202312

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0A030iZVG10202312

main77209-0A040iZSG10202402

77210PIPE ASSY, FUEL TANK FILLER

main77210-0A030iZSG10,ZVG10202312

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-46005iZSG10,ZVG10202312

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-0A030iZSG10,ZVG10202312

77241WCLIP, TUBE JOINT

main77241-0K010iZSG10,ZVG10202312

77285DCLAMP, FUEL TUBE, NO.1

main77285-06570iZSG10202402

main77285-0A060iZVG10202312

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0A090iZSG10,ZVG10202312

77310ACAP ASSY, FUEL TANK

main77300-0K010iZSG10,ZVG10202312

77316GASKET, FUEL TANK CAP

main77316-0K020iZSG10,ZVG10202312

77391RING, FUEL INLET BOX

main77391-0A010iZSG10,ZVG10202312

77391ARING, FUEL INLET BOX

main77391-02020iZSG10,ZVG10202312

77512CBRACKET, FUEL TANK

main77512-35140iZVG10202312

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0A050iZSG10202402

main77606-0A080iZVG10202312

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-0A030iZVG10202312

main77754-0A040iZSG10202402

77785HARNESS, FUEL PUMP

main77785-12050iZSG10,ZVG10202312

8401

9011908D17

main90119-08D17

9011910995

main90119-10995

9030108020

main90301-08020

9046050008

main90460-50008

9046611004

main90466-11004

90466T0048

main90466-T0048

38 parts on this diagram · 5 diagrams in section
