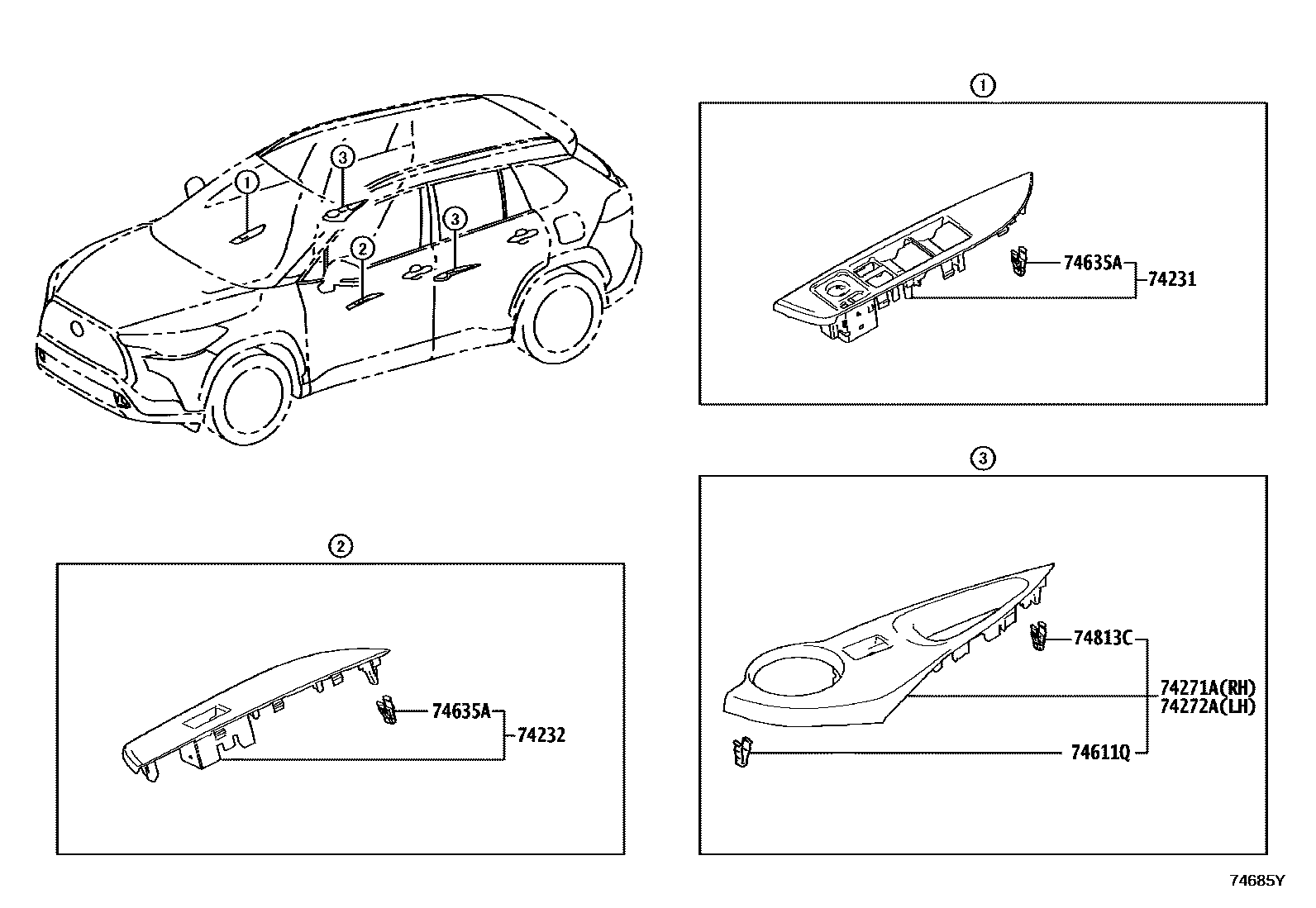

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0A060iZSG10,ZVG10202312

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0A050iZSG10,ZVG10202312

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-0A070iZSG10,ZVG10202312

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-0A070iZSG10,ZVG10202312

74611QCLIP

main90467-12080iZSG10,ZVG10202312

74635ACLIP

main90467-10203iZSG10,ZVG10202312

74813CCLIP

main90467-T0033iZSG10,ZVG10202312

7 parts on this diagram · 2 diagrams in section
