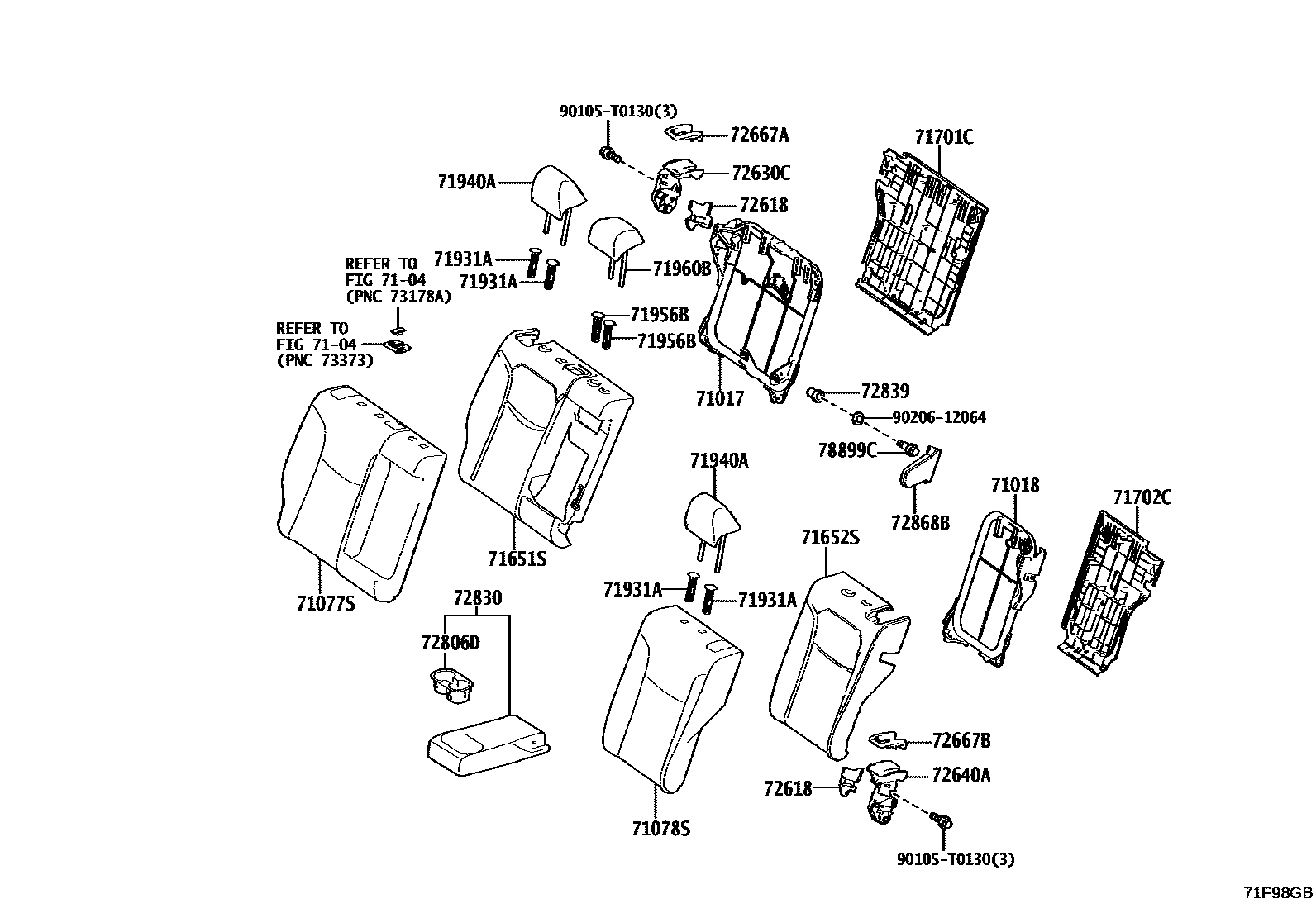

REAR SEAT & SEAT TRACK

0001 1SEAT BACK 0002 1SEAT CUSHION 0003 1FITTING PARTS

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-0A070iZSG10,ZVG10202312

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-0A090iZSG10,ZVG10202312

7104

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-0A230-D0iZSG10,ZVG10..G,N202312

TERRA ROSSA,TRIM3#

main71077-0A420-D0iZSG10,ZVG10..E202312

TERRA ROSSA,TRIM3#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-0A240-D0iZSG10,ZVG10..G,N202312

TERRA ROSSA,TRIM3#

main71078-0A250-D0iZSG10,ZVG10..E202312

TERRA ROSSA,TRIM3#

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-0A050iZSG10,ZVG10202312

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-0A100iZSG10,ZVG10202312

71701CBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-0A080iZSG10,ZVG10202312

71702CBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-0A080iZSG10,ZVG10202312

71931ASUPPORT, REAR SEAT HEADREST

main71930-0K050-D0×2iZSG10,ZVG10202312

W(LOCK),TERRA ROSSA,TRIM3#

main71931-0K040-D0×2iZSG10,ZVG10202312

W/O(LOCK),TERRA ROSSA,TRIM3#

71940AHEADREST ASSY, REAR SEAT

main71940-0A070-D0×2iZSG10,ZVG10..G,N202312

TERRA ROSSA,TRIM3#

main71940-0A220-D0×2iZSG10,ZVG10..E202312

TERRA ROSSA,TRIM3#

71956BSUPPORT, REAR SEAT HEADREST

main71930-0K050-D0iZSG10,ZVG10202312

W(LOCK),TERRA ROSSA,TRIM3#

main71931-0K040-D0iZSG10,ZVG10202312

W/O(LOCK),TERRA ROSSA,TRIM3#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-0A060-D0iZSG10,ZVG10..G,N202312

TERRA ROSSA,TRIM3#

main71960-0A180-D0iZSG10,ZVG10..E202312

TERRA ROSSA,TRIM3#

72618PROTECTOR, REAR SEATBACK LOCK STRIKER

main72618-0A010iZSG10,ZVG10202312

RH

main72618-0A040iZSG10,ZVG10202312

LH

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-0A010-D0iZSG10,ZVG10202312-202412

TERRA ROSSA,TRIM3#

main72630-0A011-D0iZSG10,ZVG10202412

TERRA ROSSA,TRIM3#

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-0A010-D0iZSG10,ZVG10202312-202412

TERRA ROSSA,TRIM3#

main72640-0A011-D0iZSG10,ZVG10202412

TERRA ROSSA,TRIM3#

72667ABEZEL, REAR SEATBACK LOCK, UPPER RH

main72667-0A010-D0iZSG10,ZVG10202312

TERRA ROSSA,TRIM3#

72667BBEZEL, REAR SEATBACK LOCK, UPPER LH

main72667-0A040-D0iZSG10,ZVG10202312

TERRA ROSSA,TRIM3#

72806DHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-0A070-C0iZSG10,ZVG10202312

BLACK,TRIM3#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-0A140-D0iZSG10,ZVG10..G,N202312

TERRA ROSSA,TRIM3#

main72830-0A150-D0iZSG10,ZVG10..E202312

TERRA ROSSA,TRIM3#

72839SHIM, REAR SEAT ARMREST HINGE

main72839-22010iZSG10,ZVG10202312

72868BCOVER, CENTER ARMREST HINGE

main72868-0A010-D0iZSG10,ZVG10202312

TERRA ROSSA,TRIM3#

78899CBOLT, REAR SUB SEAT

main78899-60070iZSG10,ZVG10202312

90105T0130

main90105-T0130

9020612064

main90206-12064
