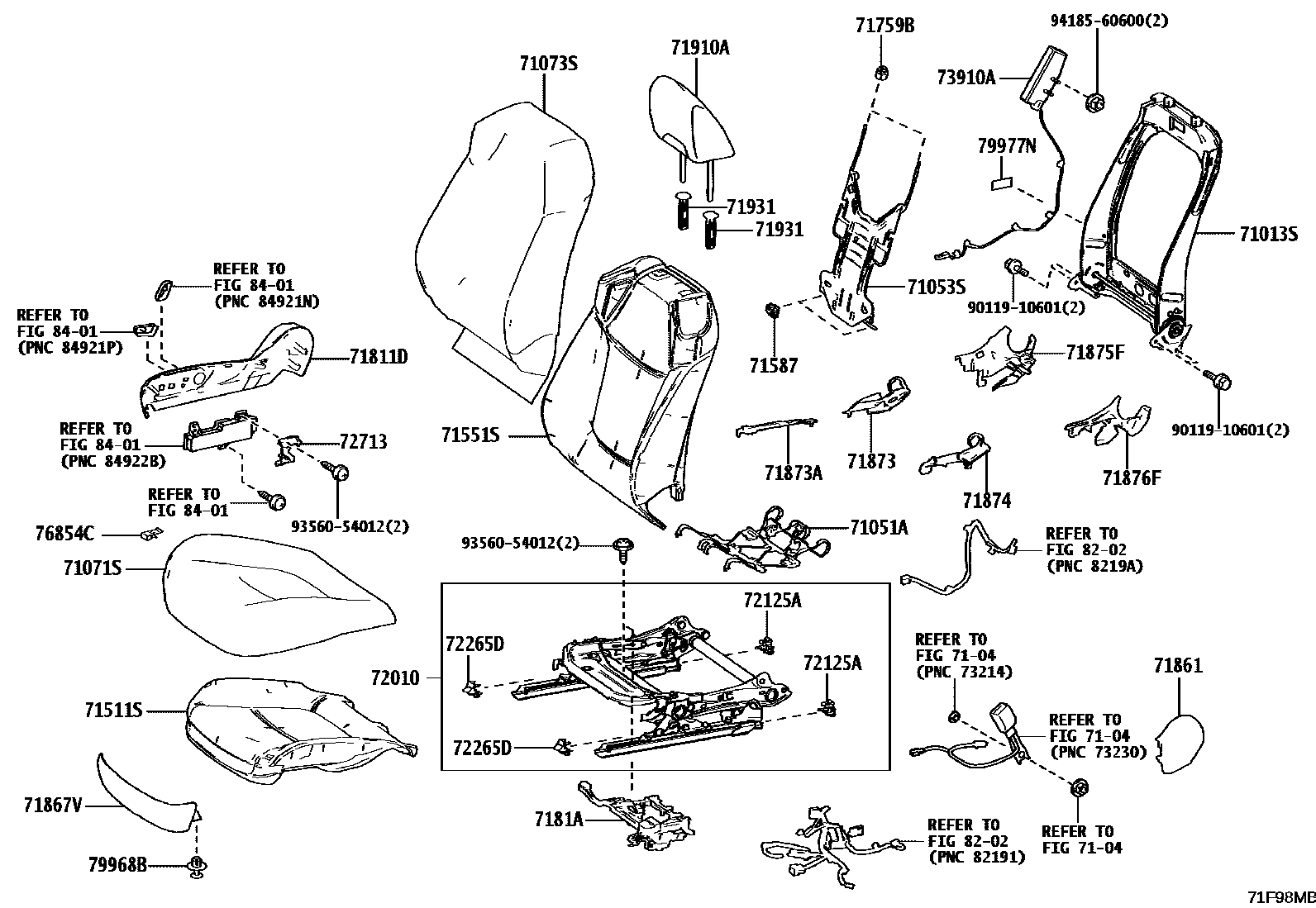

FRONT SEAT & SEAT TRACK

0001 1RH SEAT(POWER SEAT) 0002 1RH SEAT(MANUAL SEAT) 0003 1LH SEAT 0004 1SEAT RAIL COVER

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-0A110iZSG10,ZVG10..G,N202312

main71013-0A120iZSG10,ZVG10..E202312

7104

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-06120iZSG10,ZVG10202312

71053SSPRING SUB-ASSY, FRONT SEATBACK, RH

main71053-06160iZSG10,ZVG10202312

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-0A510-D0iZSG10,ZVG10..G,N202312

TERRA ROSSA,TRIM3#

main71071-0A520-D0iZSG10,ZVG10..E202312

TERRA ROSSA,TRIM3#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-0A250-D0iZSG10,ZVG10..G,N202312

TERRA ROSSA,TRIM3#

main71073-0A270-D0iZSG10,ZVG10..E202312

TERRA ROSSA,TRIM3#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-0A170iZSG10,ZVG10..G,N202312

main71511-0A180iZSG10,ZVG10..E202312

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-0A180iZSG10,ZVG10202312

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-F4030iZSG10,ZVG10202312

71759BHOOK, FRONT SEATBACK

main71759-0K060iZSG10,ZVG10¥130202312

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-0A130-C0iZSG10,ZVG10..G,N202312

BLACK,TRIM3#

main71811-0A140-C0iZSG10,ZVG10..E202312

BLACK,TRIM3#

7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

main7181A-06030iZSG10,ZVG10..E202312

main7181A-0A030iZSG10,ZVG10..G,N202312

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-0A080-C0iZSG10,ZVG10202312

BLACK,TRIM3#

71867VSHIELD, FRONT SEAT CUSHION, FRONT RH

main71867-06190-C0iZSG10,ZVG10..E202312

BLACK,TRIM3#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-06430iZSG10,ZVG10202312

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-06550iZSG10,ZVG10..E202312

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-06620iZSG10,ZVG10202312

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-0A120-C0iZSG10,ZVG10202312

BLACK,TRIM3#

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71875-0A130-C0iZSG10,ZVG10202312

BLACK,TRIM3#

71910AHEADREST ASSY, FRONT SEAT

main71910-0A390-D0iZSG10,ZVG10..G,N202312

TERRA ROSSA,TRIM3#

main71910-0A400-D0iZSG10,ZVG10..E202312

TERRA ROSSA,TRIM3#

71931SUPPORT, FRONT SEAT HEADREST

main71930-0K050-D0iZSG10,ZVG10202312

W(LOCK),TERRA ROSSA,TRIM3#

main71931-0K040-D0iZSG10,ZVG10202312

W/O(LOCK),TERRA ROSSA,TRIM3#

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-0A070iZSG10,ZVG10..G,N202312

main72010-0A080iZSG10,ZVG10..E202312

72125ACOVER, SEAT TRACK, UPPER REAR

main72125-06090iZSG10,ZVG10..E202312

LH SEAT

main72125-06100iZSG10,ZVG10..E202312

RH SEAT

72265DCOVER, SEAT TRACK UPPER RAIL

main72265-06040iZSG10,ZVG10..E202312

RH SEAT

main72265-06060iZSG10,ZVG10..E202312

LH SEAT

72713BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH

main72713-06020iZSG10,ZVG10..E202312

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-16010iZSG10,ZVG10¥20,000202312

76854CRETAINER, FRONT SEAT CUSHION COVER

main76854-44010iZSG10,ZVG10¥40202408

79968BCLIP

main90467-07215iZSG10,ZVG10..E¥80202312

79977NFELT, SEATBACK

main79977-0A010iZSG10,ZVG10..E202312

8202

8401

9011910601

main90119-10601¥90

9356054012

main93560-54012¥60

9418560600

main94185-60600¥70

34 parts on this diagram · 4 diagrams in section
