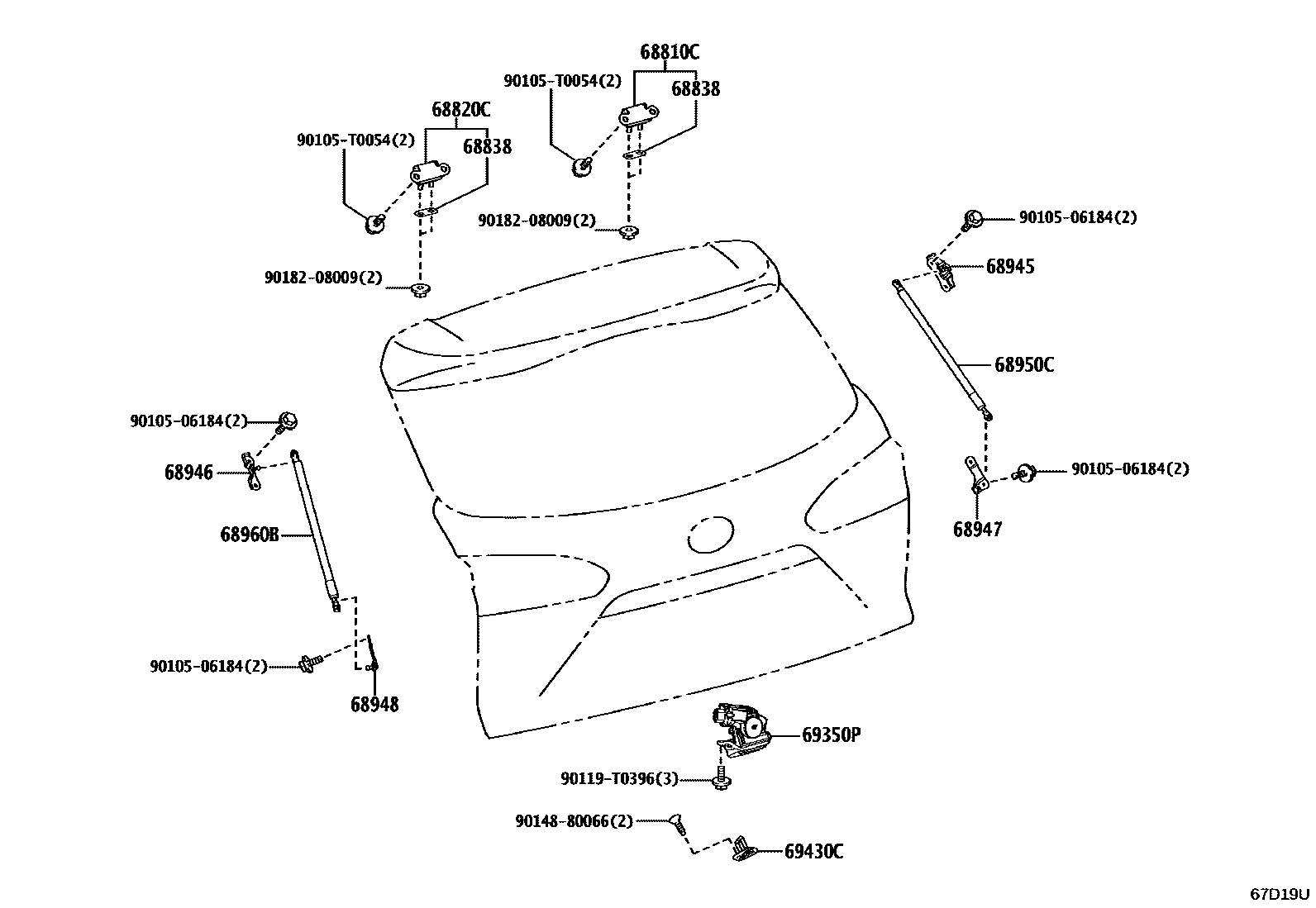

BACK DOOR LOCK & HANDLE

0001 1W/O(POWER BACK DOOR) 0002 1W(POWER BACK DOOR)

68810CHINGE ASSY, BACK DOOR, RH

main68810-16060iZSG10,ZVG10202312

68820CHINGE ASSY, BACK DOOR, LH

main68810-16060iZSG10,ZVG10202312

68838PAD, BACK DOOR HINGE, NO.1

main68838-42030×2iZSG10,ZVG10202312

T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-16010iZSG10;ZVG10..G202312

main68945-16020iZVG10..E202312

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-16010iZSG10;ZVG10..G202312

main68946-16020iZVG10..E202312

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-16030iZSG10,ZVG10202312

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-16030iZSG10,ZVG10202312

68950CSTAY ASSY, BACK DOOR, RH

main68950-0A040iZSG10;ZVG10..G202312

68960BSTAY ASSY, BACK DOOR, LH

main68960-0A040iZSG10;ZVG10..G202312

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0A070iZVG10..E202312

main69350-0K190iZSG10;ZVG10..G202312

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-F4020iZSG10,ZVG10202312

9010506184

main90105-06184

90105T0054

main90105-T0054

90119T0396

main90119-T0396

9014880066

main90148-80066

9018208009

main90182-08009

16 parts on this diagram · 2 diagrams in section
