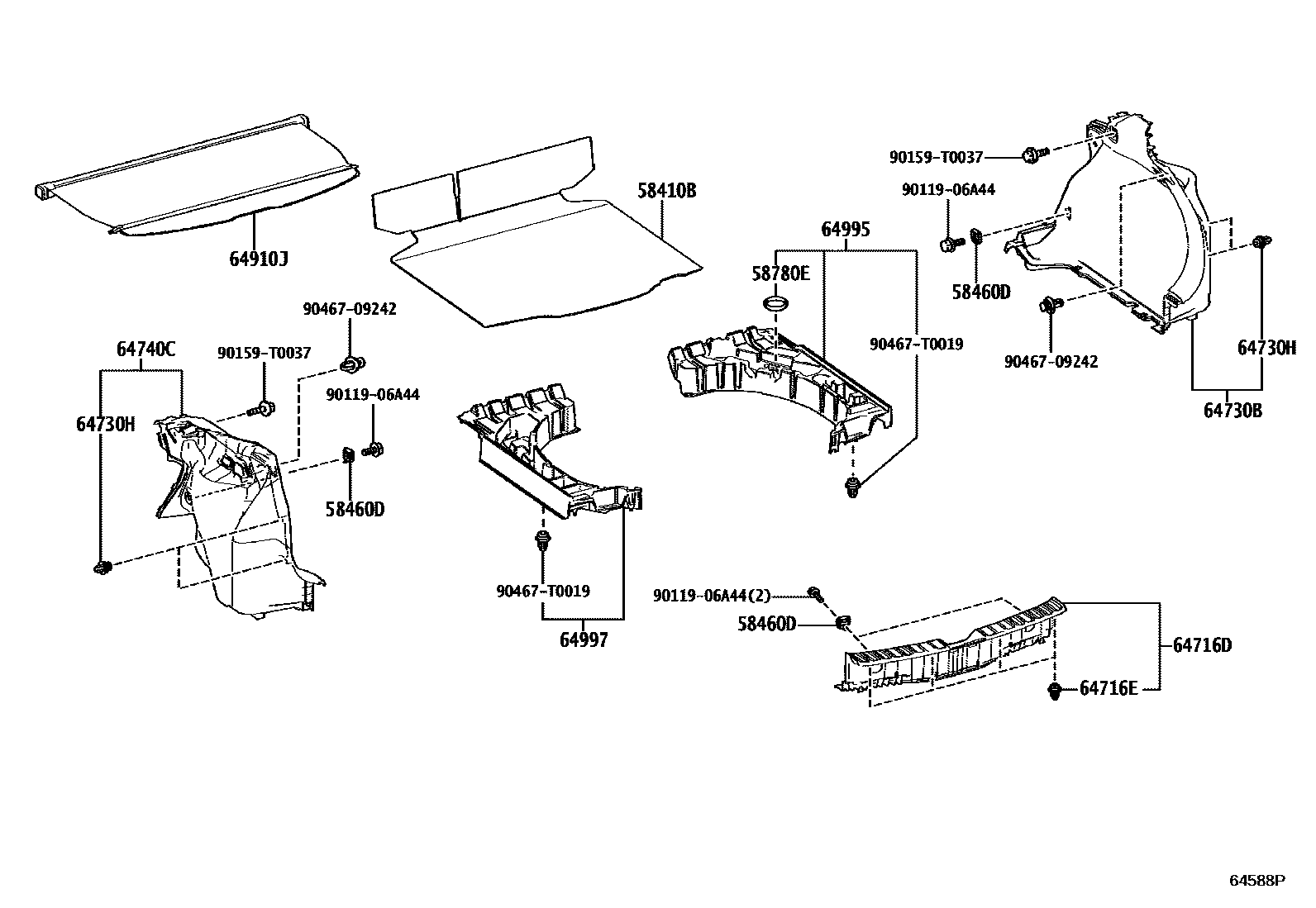

DECK BOARD & DECK TRIM COVER

58410BBOARD ASSY, DECK

main58410-0A070-C0iZSG10,ZVG10202312

BLACK,TRIM3#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020×4iZSG10,ZVG10202312

58780EBAND ASSY, TOOL BOX

main58781-52010iZSG10,ZVG10202312

64716DCOVER, DECK TRIM, REAR

main64716-0A100-C0iZSG10,ZVG10202312

BLACK,TRIM3#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-T0021×4iZSG10,ZVG10202312

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-0A210-C0iZSG10,ZVG10..E,G202312

BLACK,TRIM3#

main64730-0A220-C0iZSG10..N202402

BLACK,TRIM3#

64730HCLIP(FOR DECK TRIM SIDE PANEL)

main90467-T0021×4iZSG10,ZVG10202312

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0A190-C0iZSG10,ZVG10..E,G202312

BLACK,TRIM3#

main64740-0A200-C0iZSG10..N202402

BLACK,TRIM3#

64910JCOVER ASSY, TONNEAU

main64910-0A010-C0iZSG10,ZVG10..E,G202312

BLACK,TRIM3#

64995BOX, DECK FLOOR, RH

main64995-0A190-C0iZSG10,ZVG10202312

BLACK,TRIM3#

64997BOX, DECK FLOOR, LH

main64997-0A160-C0iZSG10,ZVG10202312

BLACK,TRIM3#

9011906A44

main90119-06A44

90159T0037

main90159-T0037

9046709242

main90467-09242

90467T0019

main90467-T0019

15 parts on this diagram · 1 diagram in section
