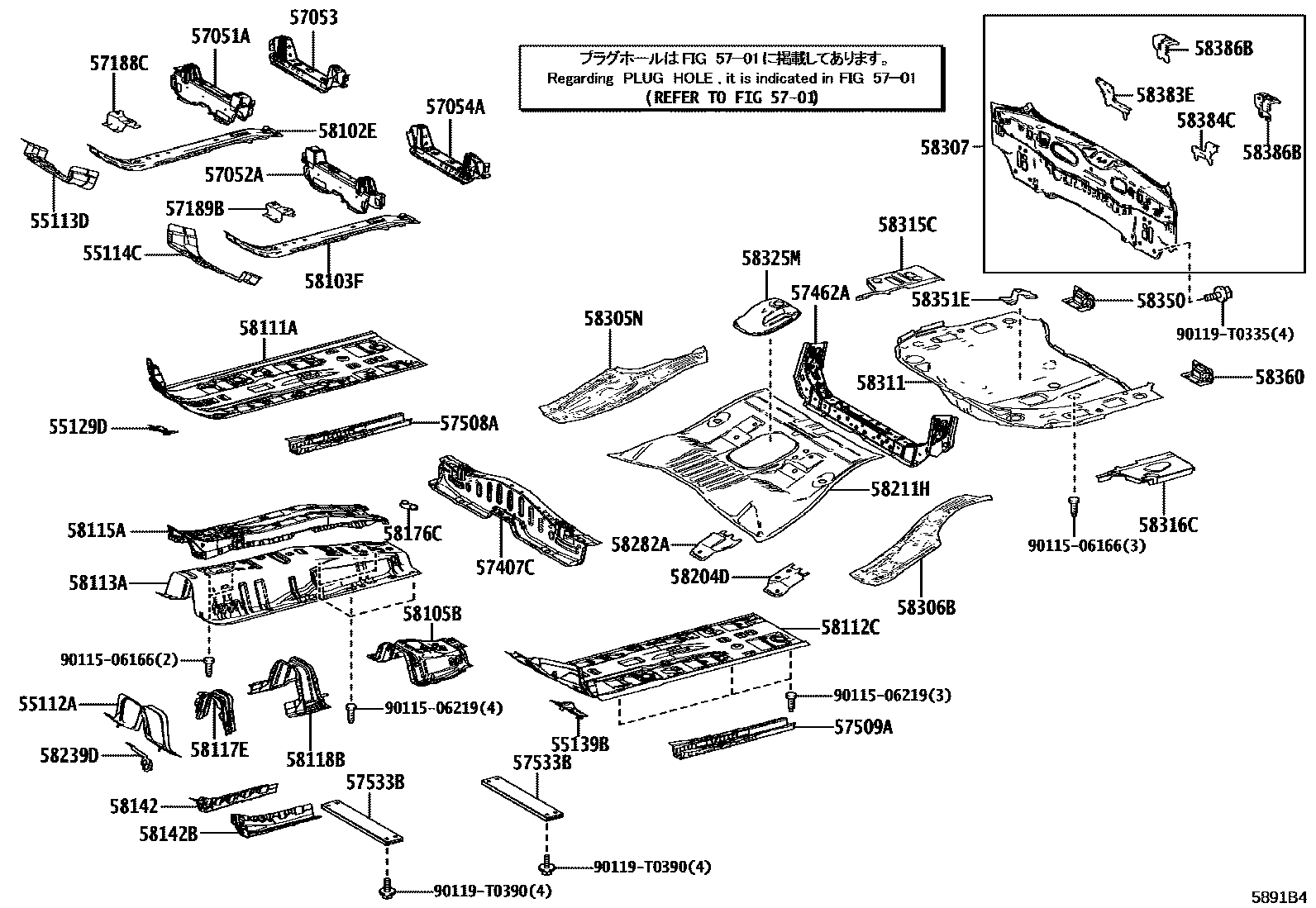

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

55112APANEL, DASH, NO.2

main55112-0A040iZSG10,ZVG10202312

55113DPANEL, DASH, LOWER RH

main55113-02080iZSG10,ZVG10202312-202408

55114CPANEL, DASH, LOWER LH

main55114-02120iZSG10,ZVG10202312-202408

55129DCOVER, DASH PANEL HOLE, RH

main55129-F4020iZSG10,ZVG10202312

55139BCOVER, DASH PANEL HOLE, LH

main55139-F4020iZSG10,ZVG10202312

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-0A050iZSG10,ZVG10202312

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-0A050iZSG10,ZVG10202312

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-0A080iZSG10,ZVG10202312

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-0A080iZSG10,ZVG10202312

57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-02120iZSG10,ZVG10202312

57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

main57189-02100iZSG10,ZVG10202312

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-0A070iZSG10202402

main57407-0A080iZVG10202312

57462AMEMBER, CENTER FLOOR CROSS, NO.2

main57405-0A030iZSG10,ZVG10202312

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-0A050iZSG10,ZVG10202312

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57508-0A050iZSG10,ZVG10202312

57533BBRACE, FRONT FLOOR, CENTER

main57533-F4030×2iZSG10,ZVG10202312

58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main58102-0A030iZSG10,ZVG10202312

58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main58102-0A030iZSG10,ZVG10202312

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-0A060iZSG10,ZVG10202312

58111APAN, FRONT FLOOR, RH

main58111-F4021iZSG10,ZVG10202312

58112CPAN, FRONT FLOOR, LH

main58112-F4021iZSG10,ZVG10202312

58113APANEL, FRONT FLOOR, CENTER

main58113-0A030iZSG10,ZVG10202312

58115AREINFORCEMENT, FRONT FLOOR PANEL

main58115-0A070iZSG10,ZVG10202312

58117EPANEL, FRONT FLOOR SUB COVER

main58117-F4021iZSG10,ZVG10202312

58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2

main58118-F4020iZSG10,ZVG10202312

58142REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN

main58141-02120iZSG10,ZVG10202312

58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH

main58142-02130iZSG10,ZVG10202312

58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2

main58176-02080iZSG10,ZVG10202312

58204DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH

main58204-0A080iZSG10,ZVG10202312

58211HPAN, CENTER FLOOR

main58211-0A070iZSG10202402

main58211-0A081iZVG10202312-202406

sub90333-25003

main58211-0A082iZVG10202406

58239DBRACKET, CABLE CLAMP

main58239-F4020iZSG10,ZVG10202312

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-0A090iZSG10,ZVG10202312

58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH

main58305-02220iZSG10202402

main58305-02230iZVG10202312

58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH

main58306-02230iZSG10202402

main58306-02241iZVG10202312-202402

sub90950-01960

main58306-02242iZVG10202402

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0A020iZSG10,ZVG10202312

58311PAN, REAR FLOOR

main58311-0A060iZSG10,ZVG10202312

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-0A050iZSG10,ZVG10202312

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-0A050iZSG10,ZVG10202312

58325MCOVER, REAR FLOOR SERVICE HOLE, NO.1

main58325-0A170iZSG10202402

main58325-0A180iZVG10202312

58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH

main58350-F4020iZSG10,ZVG10202312

58351EBRACKET, SPARE WHEEL CLAMP

main58351-02070iZSG10,ZVG10202312

58360REINFORCEMENT ASSY, REAR FLOOR PANEL, LH

main58350-F4020iZSG10,ZVG10202312

58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH

main58383-K1010iZSG10,ZVG10202312

58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH

main58384-K1010iZSG10,ZVG10202312

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-02120×2iZSG10,ZVG10202312

9011506166

main90115-06166

9011506219

main90115-06219

90119T0335

main90119-T0335

90119T0390

main90119-T0390

50 parts on this diagram · 2 diagrams in section
