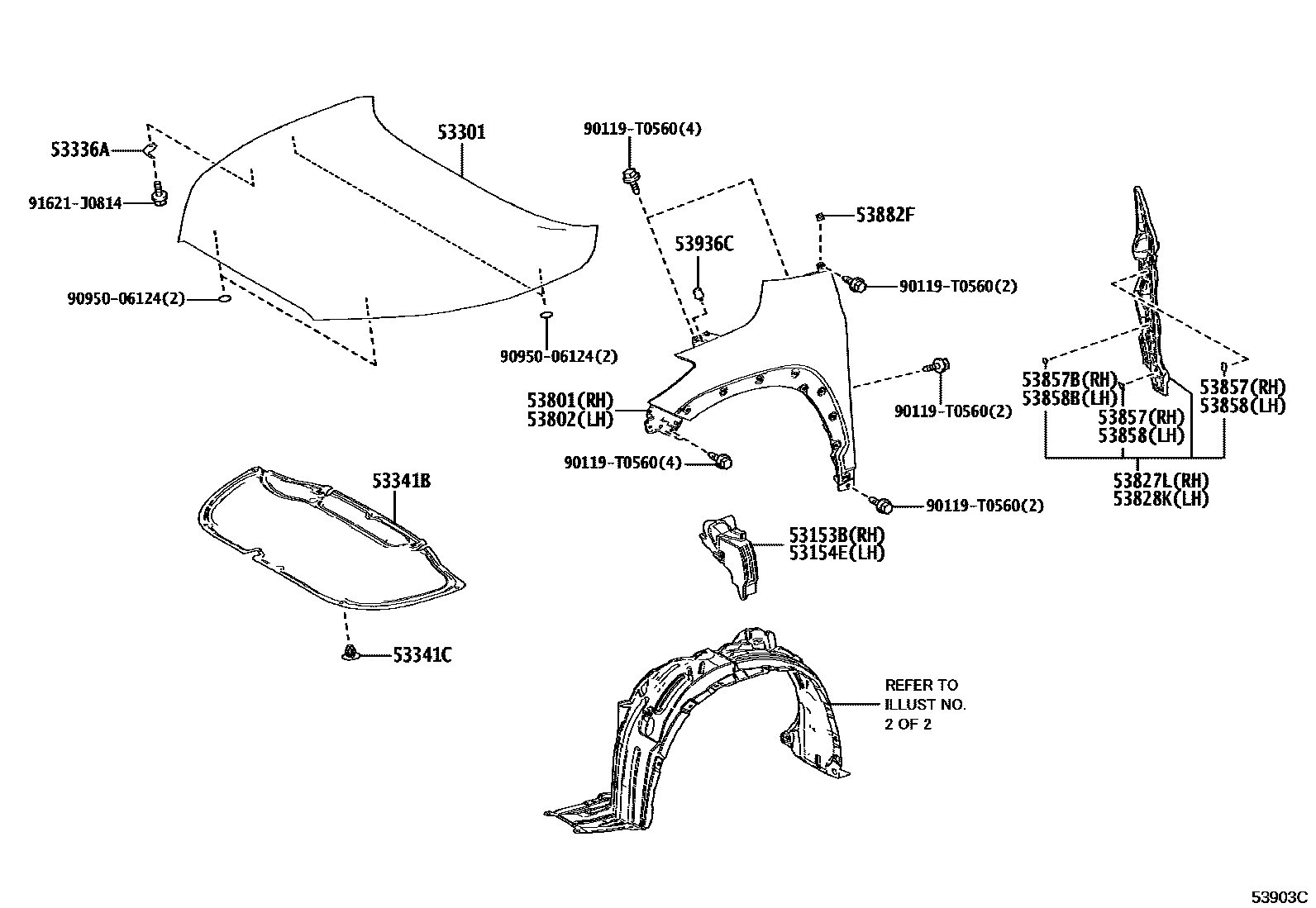

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153BGUIDE, FRONT SIDE AIR

main53153-0A010iZSG10,ZVG10202312

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-0A010iZSG10,ZVG10202312

53301HOOD SUB-ASSY

main53301-0A110iZSG10,ZVG10202312

53336ABRACKET, HOOD STAY

main53336-02040iZSG10,ZVG10202312

53341BINSULATOR, HOOD

main53341-0A010iZSG10,ZVG10..E,G202312

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×6iZSG10,ZVG10..E,G202312

53801FENDER SUB-ASSY, FRONT RH

main53801-0A080iZSG10,ZVG10202312

53802FENDER SUB-ASSY, FRONT LH

main53802-0A080iZSG10,ZVG10202312

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0A090iZSG10,ZVG10202312

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0A090iZSG10,ZVG10202312

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010×2iZSG10,ZVG10202312

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iZSG10,ZVG10202312

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010×2iZSG10,ZVG10202312

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iZSG10,ZVG10202312

53882FSEAL, FRONT FENDER

main53882-33060×2iZSG10,ZVG10202312

53936CCUSHION

main90541-09145×2iZSG10,ZVG10202312

90119T0560

main90119-T0560

9095006124

main90950-06124

91621J0814

main91621-J0814

19 parts on this diagram · 2 diagrams in section
