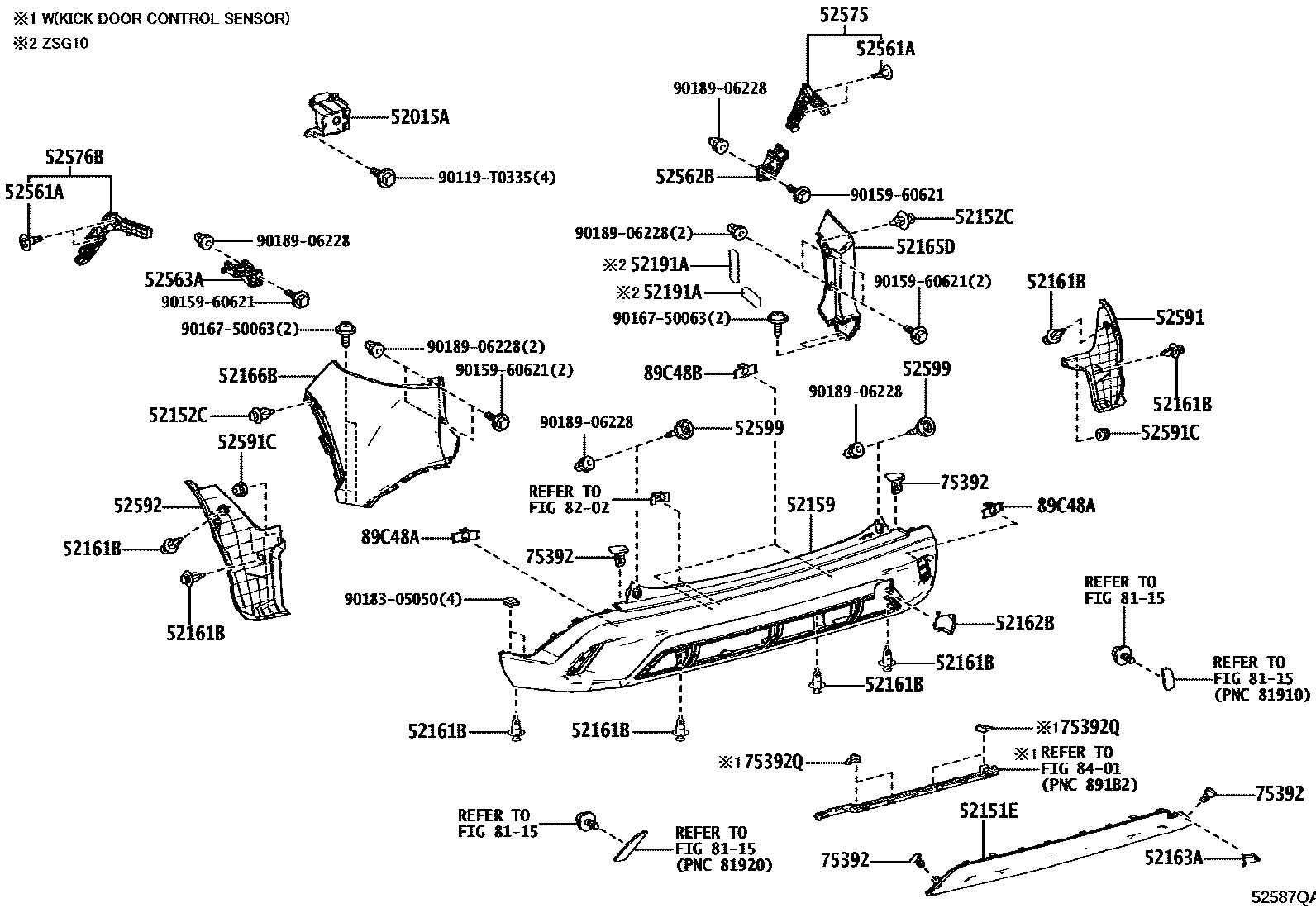

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52151EBAR, REAR BUMPER
PAINT REQ.
52152CCLIP, REAR BUMPER SIDE
52159COVER, REAR BUMPER
NO PAINT REQ.
NO PAINT REQ.
52161BPIECE, REAR BUMPER
52162BPLATE, REAR BUMPER, NO.1
52163APLATE, REAR BUMPER, RH
52165DEXTENSION, REAR BUMPER CORNER, RH
52166BEXTENSION, REAR BUMPER CORNER, LH
52191ASEAL, REAR BUMPER ARM
52561ACLIP(FOR REAR BUMPER RETAINER)
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576BRETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52591CCLIP, REAR BUMPER SIDE SEAL
BLACK
52592SEAL, REAR BUMPER SIDE, LH
52599STOPPER, REAR BUMPER, UPPER
75392RETAINER, OUTSIDE MOULDING
75392QRETAINER, OUTSIDE MOULDING, NO.2
8115
8202
8401
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
90119T0335
main90119-T0335
9015960621
main90159-60621
9016750063
main90167-50063
9018305050
main90183-05050
9018906228
main90189-06228
31 parts on this diagram · 1 diagram in section
