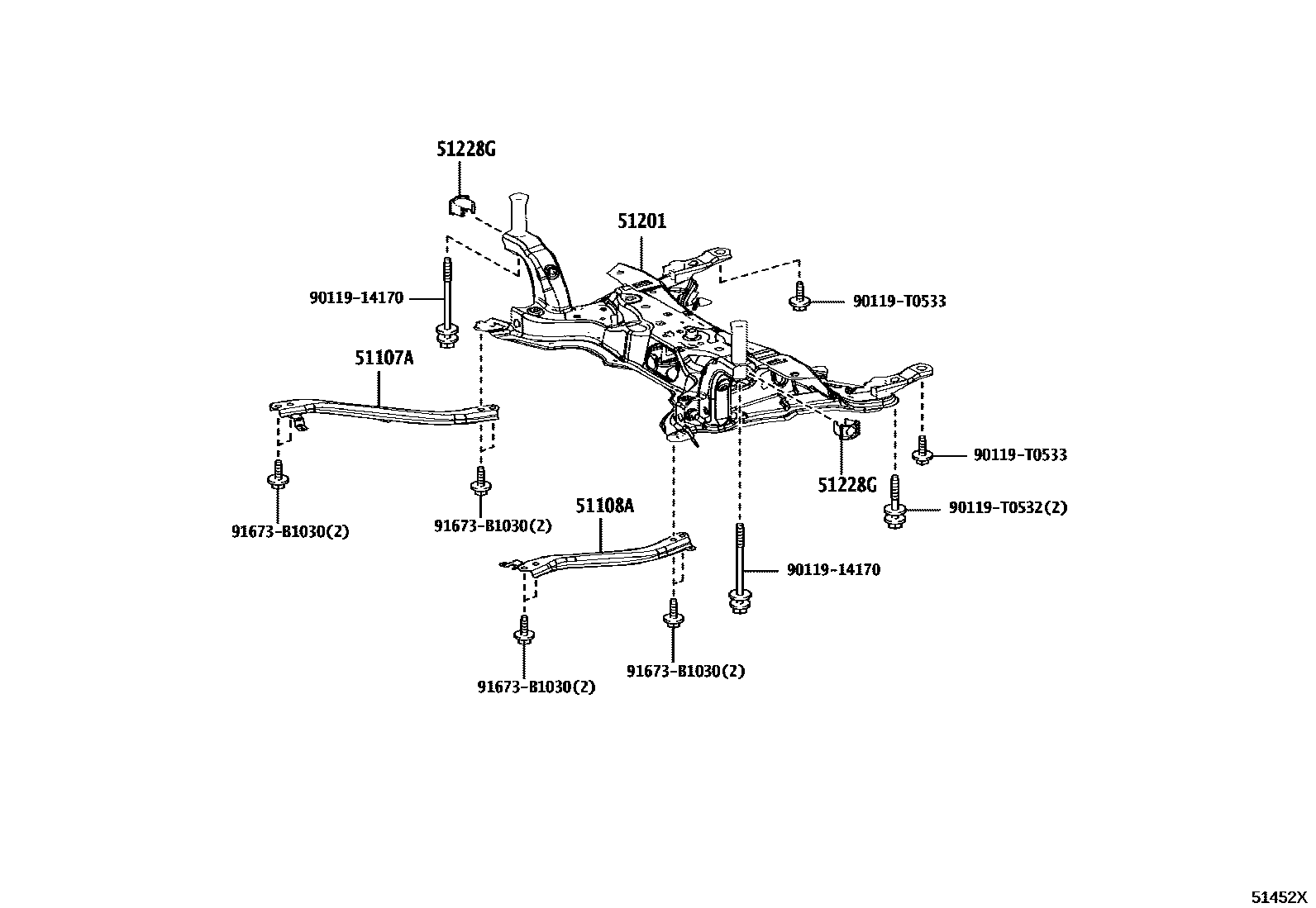

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-0A010iZSG10,ZVG10202312

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-0A010iZSG10,ZVG10202312

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-0A011iZSG10,ZVG10202312

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-F4020iZSG10,ZVG10202312

9011914170

main90119-14170

90119T0532

main90119-T0532

90119T0533

main90119-T0533

91673B1030

main91673-B1030

8 parts on this diagram · 2 diagrams in section
