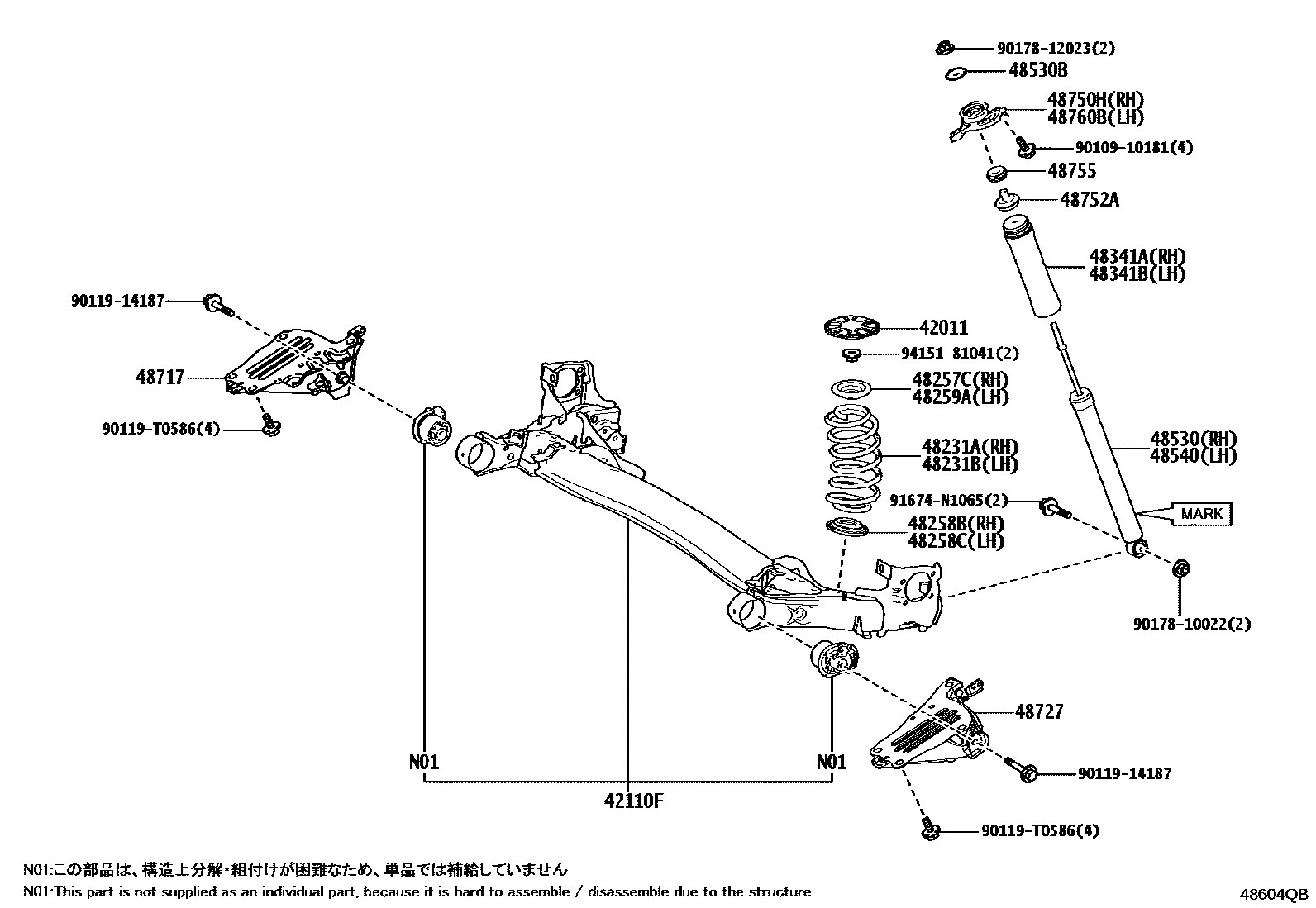

REAR SPRING & SHOCK ABSORBER

42011SEAT SUB-ASSY, REAR SPRING

main42011-0A010×2iZSG10,ZVG10202312

42110FBEAM ASSY, REAR AXLE

main42110-0A030iZSG10,ZVG10202312

48231ASPRING, COIL, REAR RH

main48231-0A040iZSG10202402

main48231-0A050iZVG10202312

48231BSPRING, COIL, REAR LH

main48231-0A040iZSG10202402

main48231-0A050iZVG10202312

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-06050iZSG10,ZVG10202312

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-0A010iZSG10,ZVG10202312

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-0A010iZSG10,ZVG10202312

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-06050iZSG10,ZVG10202312

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-0A020iZSG10,ZVG10202312

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-0A020iZSG10,ZVG10202312

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-0A320iZSG10202402

MARK 48530-0A320

main48530-0A330iZVG10202312

MARK 48530-0A330

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021×2iZSG10,ZVG10202312

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-0A320iZSG10202402

MARK 48530-0A320

main48530-0A330iZVG10202312

MARK 48530-0A330

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-0A010iZSG10,ZVG10202312

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-0A010iZSG10,ZVG10202312

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-0A030iZSG10,ZVG10202312

48752ASTOPPER, REAR SUSPENSION SUPPORT

main48752-0A100×2iZSG10,ZVG10202312

48755SUPPORT, REAR SUSPENSION

main48755-0A100×2iZSG10,ZVG10202312

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48760-0A030iZSG10,ZVG10202312

9010910181

main90109-10181

9011914187

main90119-14187

90119T0586

main90119-T0586

9017810022

main90178-10022

9017812023

main90178-12023

91674N1065

main91674-N1065

9415181041

main94151-81041

26 parts on this diagram · 1 diagram in section
