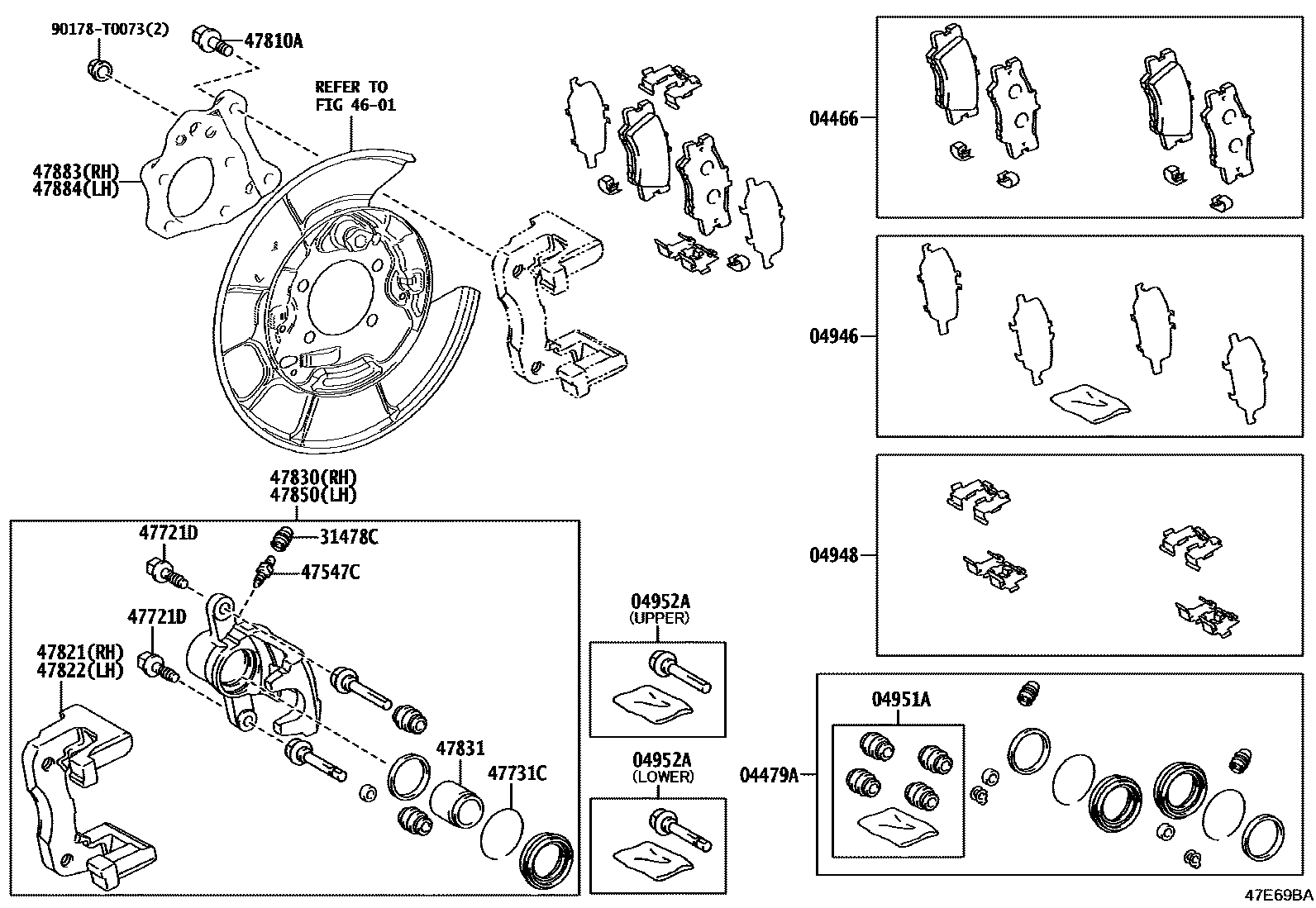

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-0A010iZSG10,ZVG10202312

MARK ADVICS VC107

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0A010iZSG10,ZVG10202312

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-0A010iZSG10,ZVG10202312

04948FITTING KIT, DISC BRAKE, REAR

main04948-0A010iZSG10,ZVG10202312

04951ABUSH KIT, DISC BRAKE, REAR

main04951-0K040iZSG10,ZVG10202312

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-0K080iZSG10,ZVG10202312

UPPER SIDE

main04952-0K090×2iZSG10,ZVG10202312

LOWER SIDE

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-06010×3iZSG10,ZVG10202312

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iZSG10,ZVG10202312

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90016-AA603×4iZSG10,ZVG10202312

*8-1.00PX23-15

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90016-AU501×2iZSG10,ZVG10202312

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12208×4iZSG10,ZVG10202312

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-0A010iZSG10,ZVG10202312

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-0A010iZSG10,ZVG10202312

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0A010iZSG10,ZVG10202312

47831PISTON, REAR DISC BRAKE

main47831-06090×2iZSG10,ZVG10202312

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0A010iZSG10,ZVG10202312

47883BRACKET, CALIPER SUPPORT, REAR RH

main47883-0A010iZSG10,ZVG10202312

47884BRACKET, CALIPER SUPPORT, REAR LH

main47884-0A010iZSG10,ZVG10202312

90178T0073

main90178-T0073

20 parts on this diagram · 1 diagram in section
