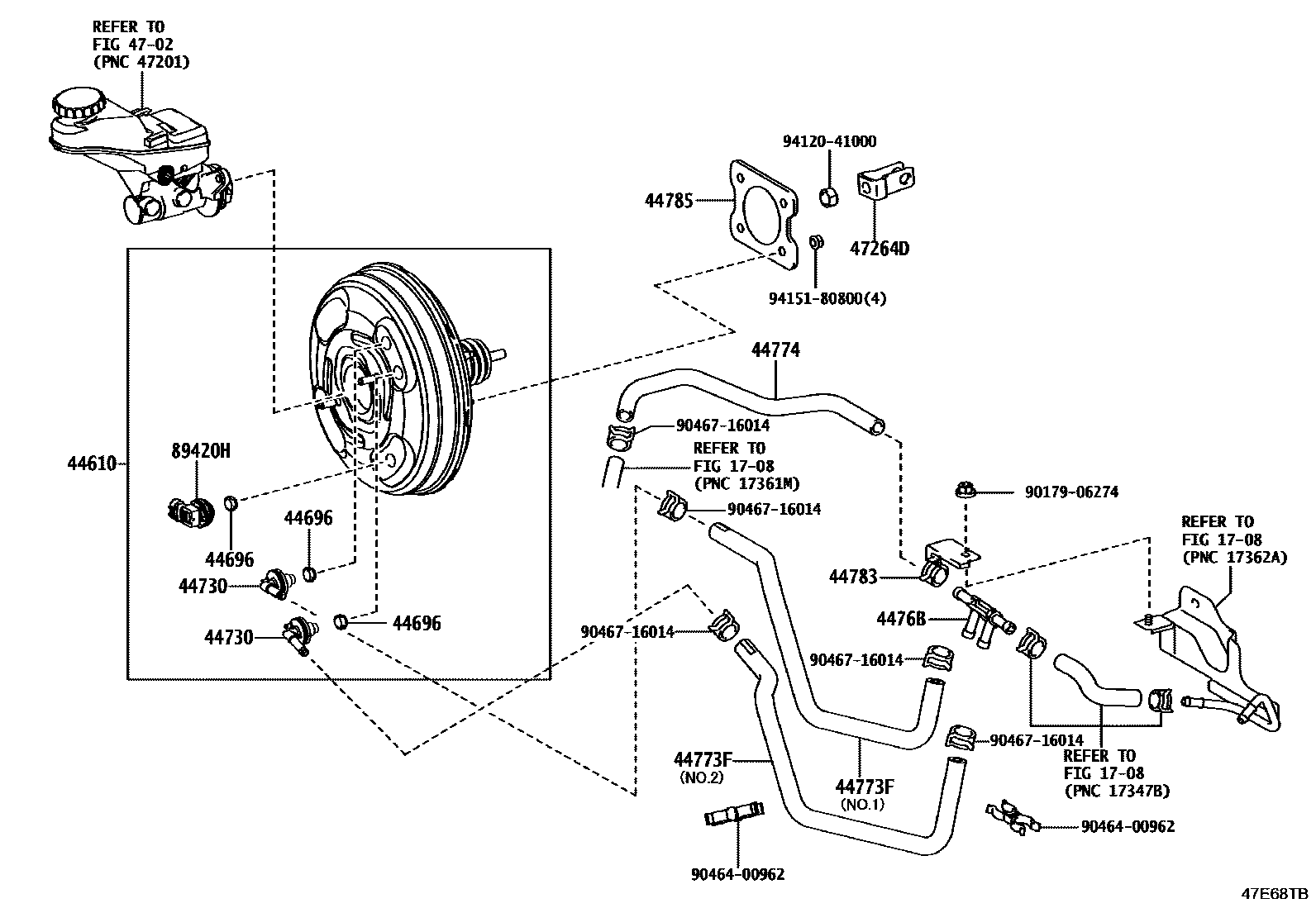

BRAKE BOOSTER & VACUUM TUBE

1708

44610BOOSTER ASSY, BRAKE

main44610-16680iZSG10202402

44696GROMMET, CHECK VALVE

main90480-24439×3iZSG10202402

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010×2iZSG10202402

4476BEJECTOR, BRAKE BOOSTER VACUUM

main4476B-48010iZSG10202402

44773FHOSE, UNION TO CHECK VALVE

main44773-16220iZSG10202402

NO.1:REFER ILLUST.

main44773-16230iZSG10202402

NO.2:REFER ILLUST.

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12A50iZSG10202402

44783CLAMP, VACUUM HOSE

main44783-10010iZSG10202402

44785GASKET, BRAKE BOOSTER

main44785-12040iZSG10202402

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iZSG10202402

89420HSENSOR ASSY, VACUUM

main89421-52020iZSG10202402

9017906274

main90179-06274

9046400962

main90464-00962

9046716014

main90467-16014

9412041000

main94120-41000

9415180800

main94151-80800

17 parts on this diagram · 1 diagram in section
