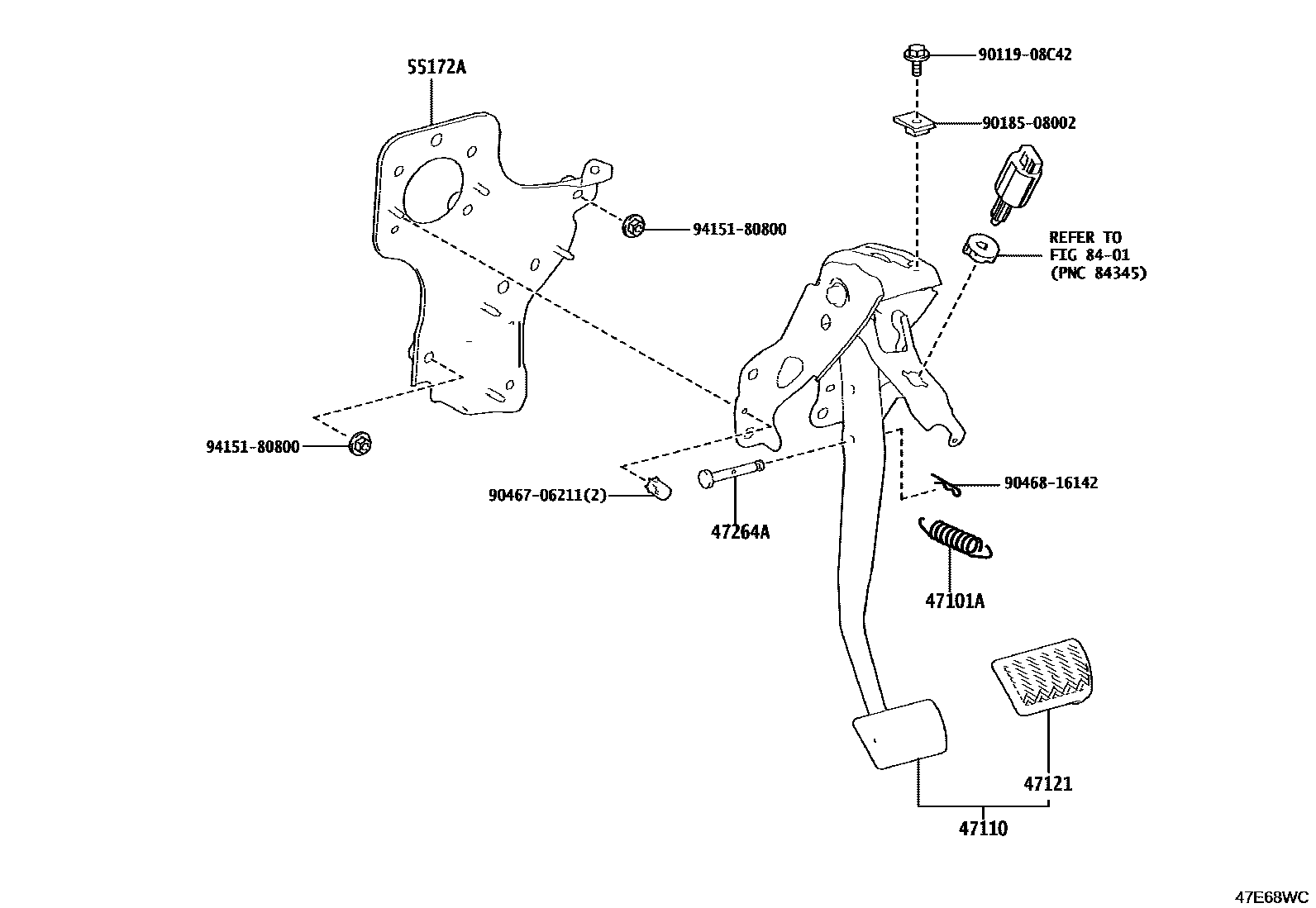

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15010iZSG10202402

main90507-16030iZVG10202312

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0A200iZSG10202402

main47110-0A210iZVG10202312

47121PAD, BRAKE PEDAL

main47121-47010iZSG10,ZVG10202312

47264APIN(FOR PUSH ROD)

main90249-08221iZSG10,ZVG10202312

55172ABASE, BRAKE PEDAL SUPPORT

main55172-0A070iZSG10,ZVG10202312

8401

9011908C42

main90119-08C42

9018508002

main90185-08002

9046706211

main90467-06211

9046816142

main90468-16142

9415180800

main94151-80800

11 parts on this diagram · 2 diagrams in section
