TRANSAXLE ASSY(CVT)

0001 1K313 0002 1K313 0003 1K313 0004 1K313

1603

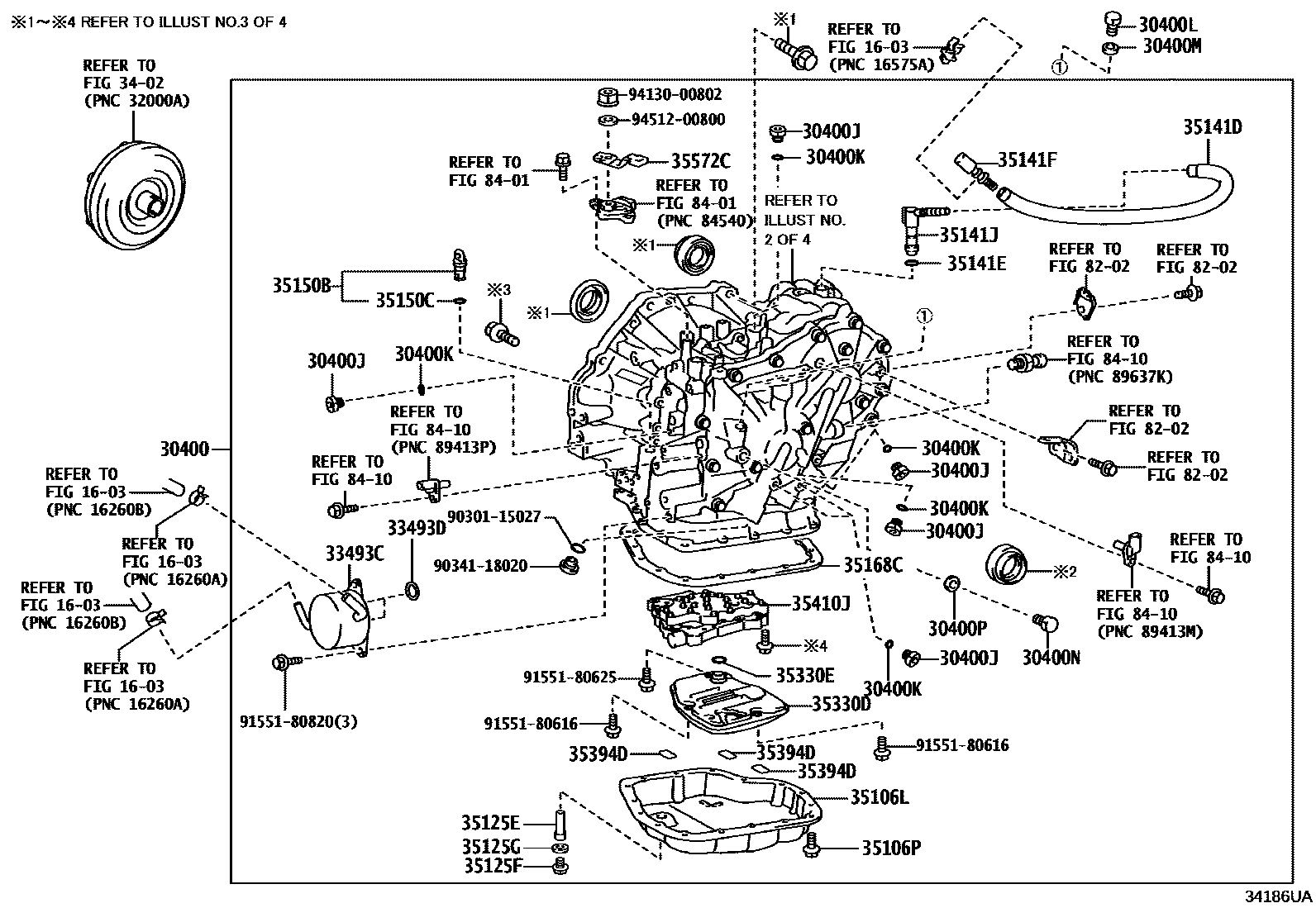

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-10070iZSG10202402

K313

30400JPLUG, TRANSAXLE HOLE

main90341-08001×8iZSG10202402

30400KGASKET, TRANSAXLE HOLE PLUG

main90301-06196×8iZSG10202402

30400LPLUG , FILLER(CVT)

main90341-12025iZSG10202402

30400MGASKET, FILLER PLUG(CVT)

main90430-12221iZSG10202402

30400NPLUG, REFILL(CVT)

main90341-18077iZSG10202402

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iZSG10202402

33493CCOOLER, TRANSMISSION OIL

main33493-52040iZSG10202402

33493DRING, O (FOR TRANSMISSION OIL COOLER)

main90301-20012×2iZSG10202402

3402

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-12200iZSG10202402

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173×16iZSG10202402

35125ETUBE, OVERFLOW(CVT)

main35125-12440iZSG10202402

35125FPLUG, OVERFLOW(CVT)

main90341-12034iZSG10202402

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iZSG10202402

35141DHOSE(FOR BREATHER PLUG)

main35121-52020iZSG10202402

35141ERING, O(FOR BREATHER PLUG)

main90301-06021iZSG10202402

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03216iZSG10202402

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03191iZSG10202402

35150BPLUG ASSY, TRANSMISSION CASE

main35150-48010iZSG10202402

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iZSG10202402

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-12091iZSG10202402

35330DSTRAINER ASSY, OIL

main35330-12050iZSG10202402

35330ERING, O (FOR OIL STRAINER)

main90301-22019iZSG10202402

35394DMAGNET, OIL CLEANER(CVT)

main35394-48010×3iZSG10202402

35410JBODY ASSY, TRANSMISSION VALVE

main35410-12871iZSG10202402

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12160iZSG10202402

8202

8401

8410

9030115027

main90301-15027

9034118020

main90341-18020

9155180616

main91551-80616

9155180625

main91551-80625

9155180820

main91551-80820

9413000802

main94130-00802

9451200800

main94512-00800

38 parts on this diagram · 4 diagrams in section
