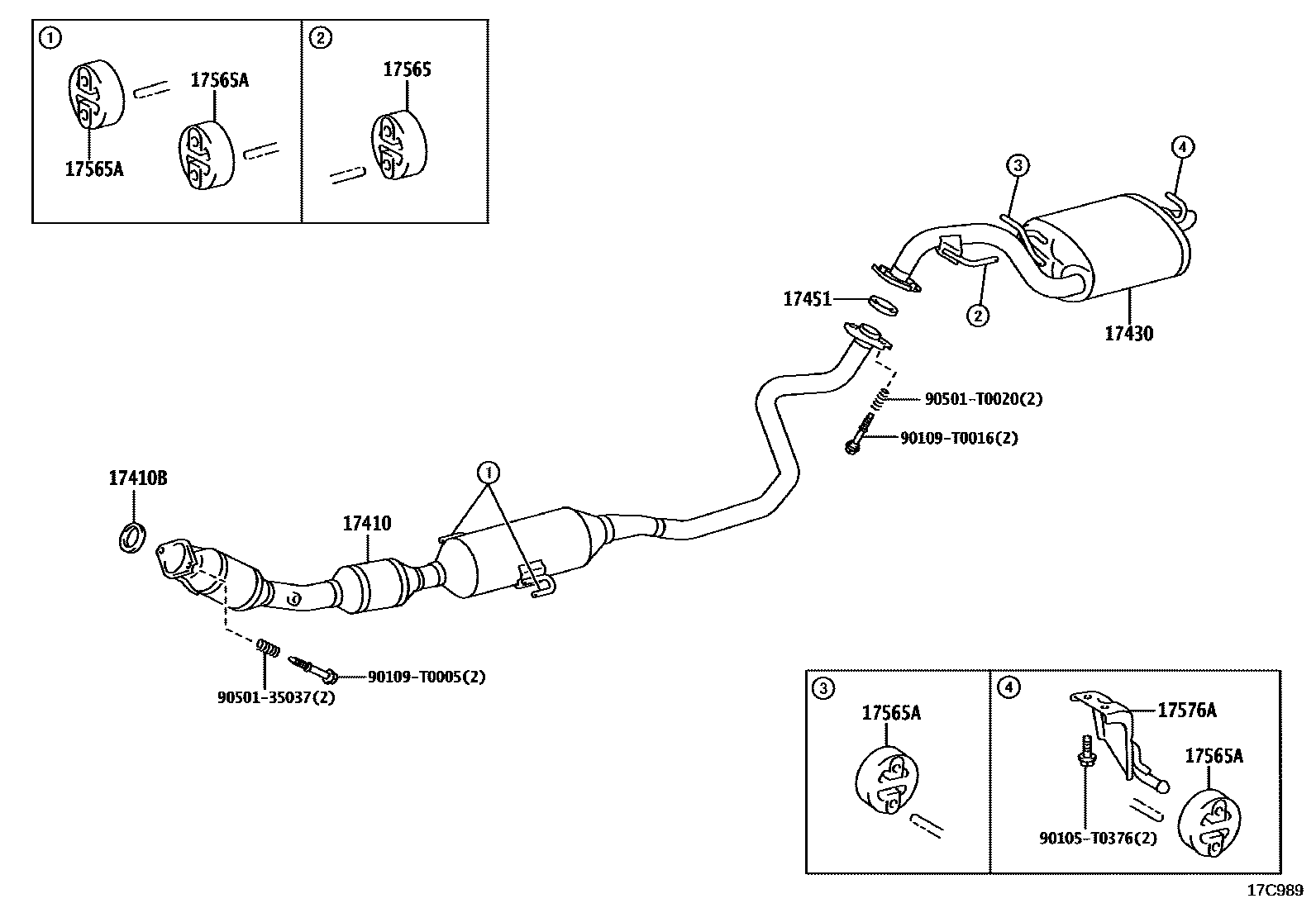

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0TL60i2ZRFXE..ZVG10202312

main17410-0TL70i2ZRFE..ZSG10202402

17410BGASKET, EXHAUST PIPE

main17451-24010i2ZRFXE..ZVG10202312

main17451-28041i2ZRFE..ZSG10202402

17430PIPE ASSY, EXHAUST, TAIL

main17430-0T830i2ZRFXE..ZVG10202312

main17430-0T840i2ZRFE..ZSG10202402

17451GASKET, EXHAUST PIPE

main17451-0M032i2ZRFE..ZSG10202402

main17451-24020i2ZRFXE..ZVG10202312

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0P240i2ZR#..ZSG10,ZVG10202312

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0P110×5i2ZRFXE..ZVG10202312

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

main17576-0T170i2ZR#..ZSG10,ZVG10202312

90105T0376

main90105-T0376

90109T0005

main90109-T0005

90109T0016

main90109-T0016

9050135037

main90501-35037

90501T0020

main90501-T0020

12 parts on this diagram · 2 diagrams in section
