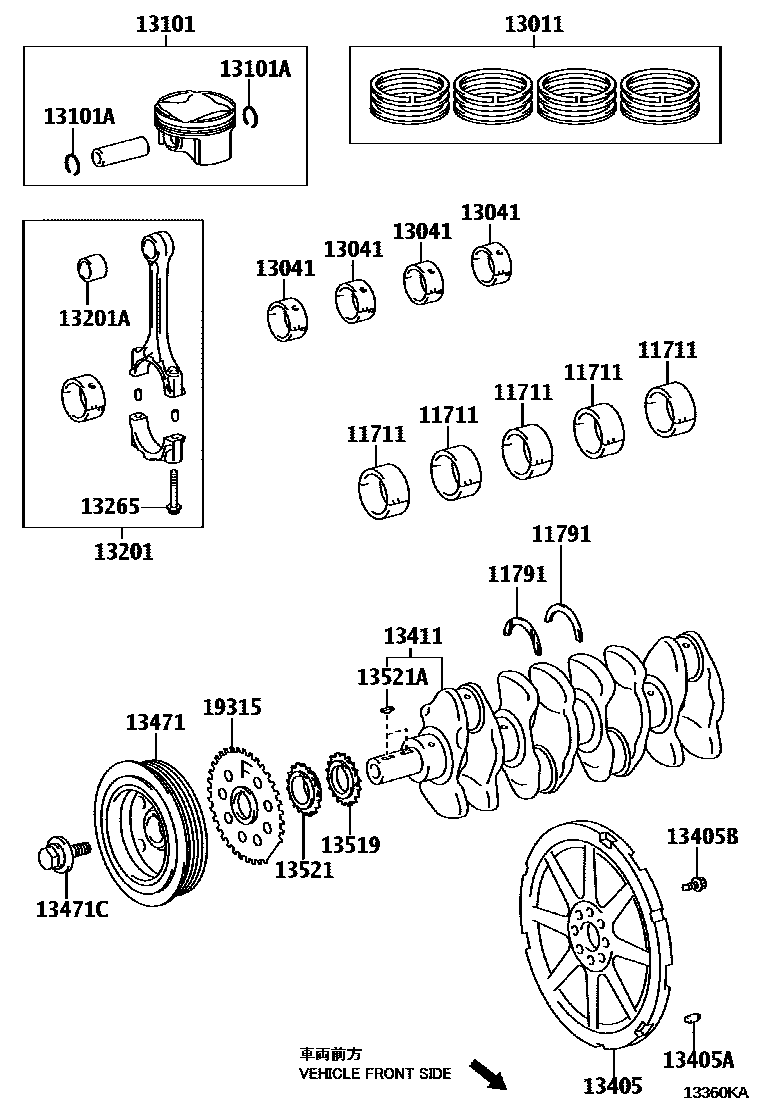

CRANKSHAFT & PISTON

Parts diagram

11711BEARING, CRANKSHAFT

main11701-37021-01×5i202402

MARK1

main11701-37021-02×5i202402

MARK2

main11701-37021-03×5i202402

MARK3

main11701-37021-04×5i202402

MARK4

main11701-37050-01×5i202312

MARK1

main11701-37050-02×5i202312

MARK2

main11701-37050-03×5i202312

MARK3

main11701-37050-04×5i202312

MARK4

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-22020×2i202312

STD

13011RING SET, PISTON

main13011-37290i202402

STD

main13011-37350i202312

STD

13041BEARING, CONNECTING ROD

main13041-37010-01×4i202402

MARK1

main13041-37010-02×4i202402

MARK2

main13041-37010-03×4i202402

MARK3

main13041-37040-01×4i202312

MARK1

main13041-37040-02×4i202312

MARK2

main13041-37040-03×4i202312

MARK3

13101PISTON SUB-ASSY, W/PIN

main13101-37270×4i202312

STD

main13101-37380×4i202402

STD

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-20064×8i202312

13201ROD SUB-ASSY, CONNECTING

main13201-39185×4i202402

(J)

main13201-39295×4i202312

(J)

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73151×4i202312

13265BOLT, CONNECTING ROD

main13265-22040×8i202312

13405FLYWHEEL SUB-ASSY

main13451-37070i202312

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3i202312

L=18,OD=8

13405BBOLT, FLYWHEEL SETTING

main90913-01027×8i202312

13411CRANKSHAFT

main13401-37021i202312

13471PULLEY, CRANKSHAFT

main13470-37042i202402

main13470-37060i202312

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-14106i202312

13519GEAR, OIL PUMP DRIVE

main13519-37010i202312

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-37011i202312

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-04003×2i202312

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-37020i202312

19 parts on this diagram · 2 diagrams in section
