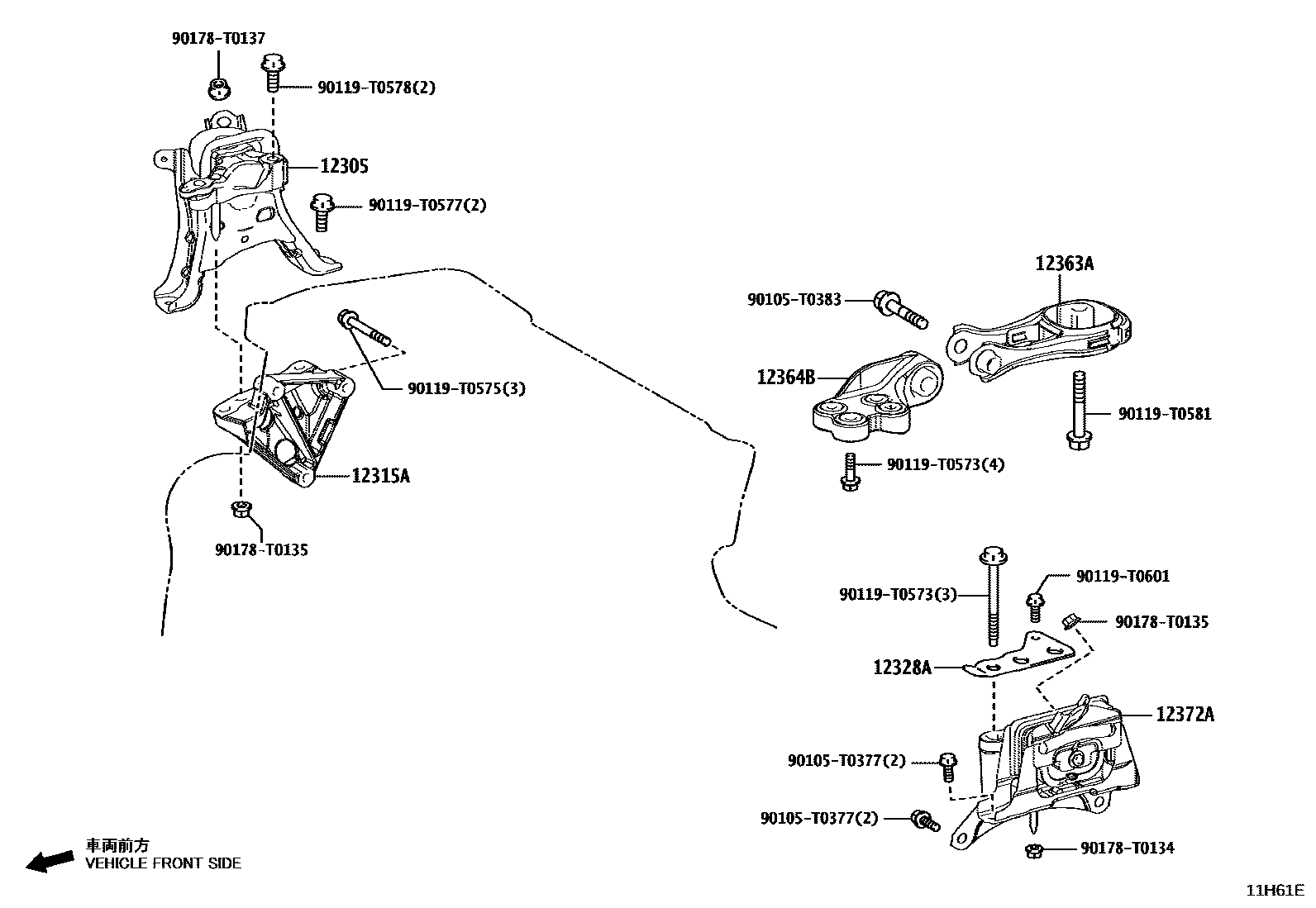

MOUNTING
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12328ASTAY, ENGINE MOUNTING, NO.2 LH
12363AROD, ENGINE MOVING CONTROL
12364BROD, ENGINE MOVING CONTROL, NO.2
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
90105T0377
main90105-T0377
90105T0383
main90105-T0383
90119T0573
main90119-T0573
90119T0575
main90119-T0575
90119T0577
main90119-T0577
90119T0578
main90119-T0578
90119T0581
main90119-T0581
90119T0601
main90119-T0601
90178T0134
main90178-T0134
90178T0135
main90178-T0135
90178T0137
main90178-T0137
17 parts on this diagram · 2 diagrams in section
