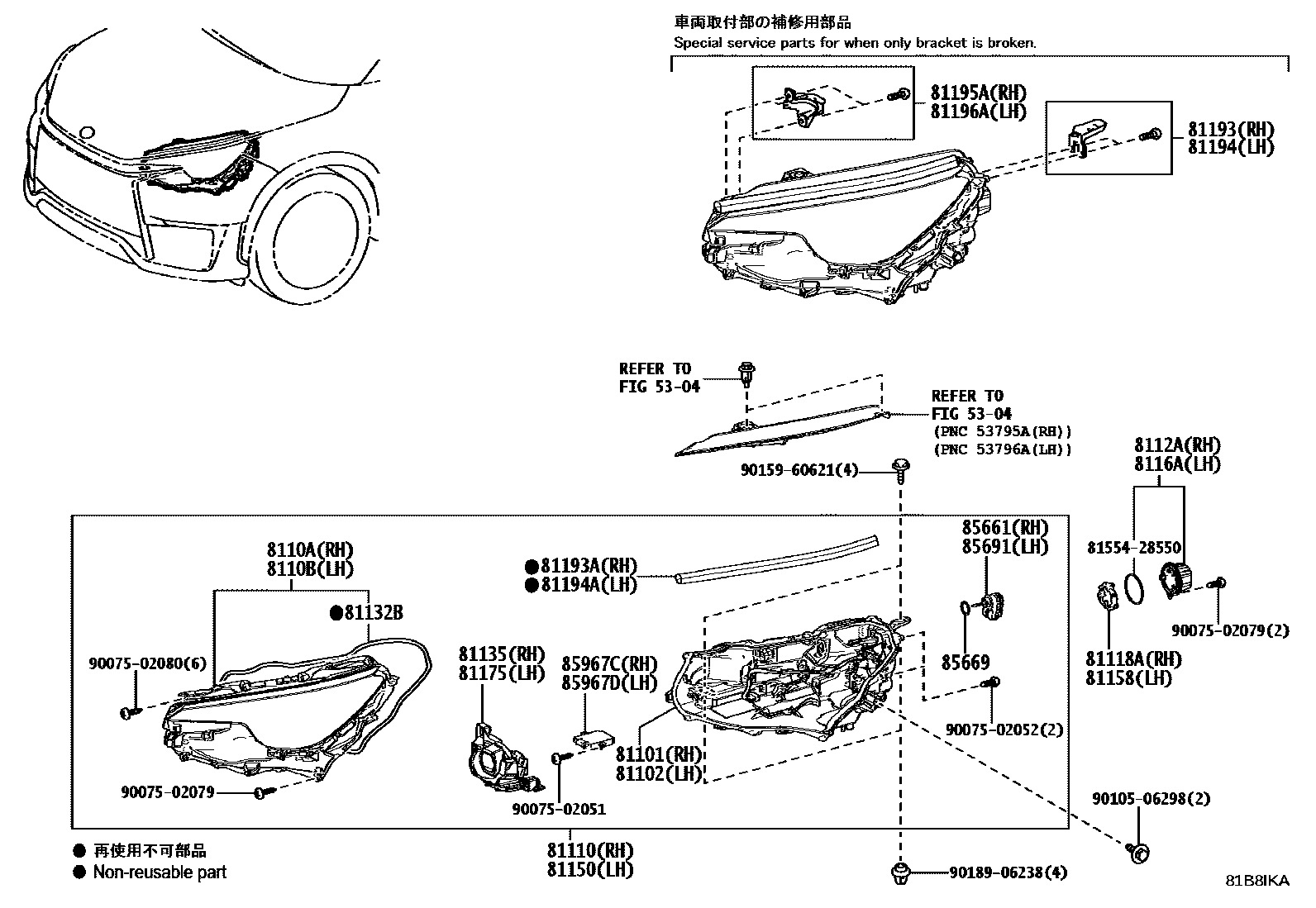

HEADLAMP
5304
81101HOUSING SUB-ASSY, HEADLAMP, RH
HEADLAMP-LED(TRINOCULAR FULL LED)
81102HOUSING SUB-ASSY, HEADLAMP, LH
HEADLAMP-LED(TRINOCULAR FULL LED)
8110ALENS SUB-ASSY, HEADLAMP, RH
HEADLAMP-LED(TRINOCULAR FULL LED)
8110BLENS SUB-ASSY, HEADLAMP, LH
HEADLAMP-LED(TRINOCULAR FULL LED)
81110HEADLAMP ASSY, RH
81118ABRACKET, HEADLAMP, RH
8112AUNIT, HEADLAMP CLEARANCE LED, NO.1 RH
81132BGASKET, HEADLAMP LENS
81135UNIT ASSY, HEADLAMP, RH
HEADLAMP-LED(TRINOCULAR FULL LED)
81150HEADLAMP ASSY, LH
81158BRACKET, HEADLAMP, LH
8116AUNIT, HEADLAMP CLEARANCE LED, NO.1 LH
81175UNIT ASSY, HEADLAMP, LH
HEADLAMP-LED(TRINOCULAR FULL LED)
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193APROTECTOR, HEADLAMP, RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194APROTECTOR, HEADLAMP, LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
85661MOTOR, HEADLAMP LEVELING, RH
HEADLAMP-LED(TRINOCULAR FULL LED)
85669PACKING, HEADLAMP LEVELING MOTOR BASE
85691MOTOR, HEADLAMP LEVELING, LH
HEADLAMP-LED(TRINOCULAR FULL LED)
85967CCOMPUTER, LIGHT CONTROL LED, RH
85967DCOMPUTER, LIGHT CONTROL LED, LH
8155428550GASKET, REAR COMBINATION LAMP BODY, RH
main81554-28550
9007502051
main90075-02051
9007502052
main90075-02052
9007502079
main90075-02079
9007502080
main90075-02080
9010506298
main90105-06298
9015960621
main90159-60621
9018906238
main90189-06238
33 parts on this diagram · 2 diagrams in section
