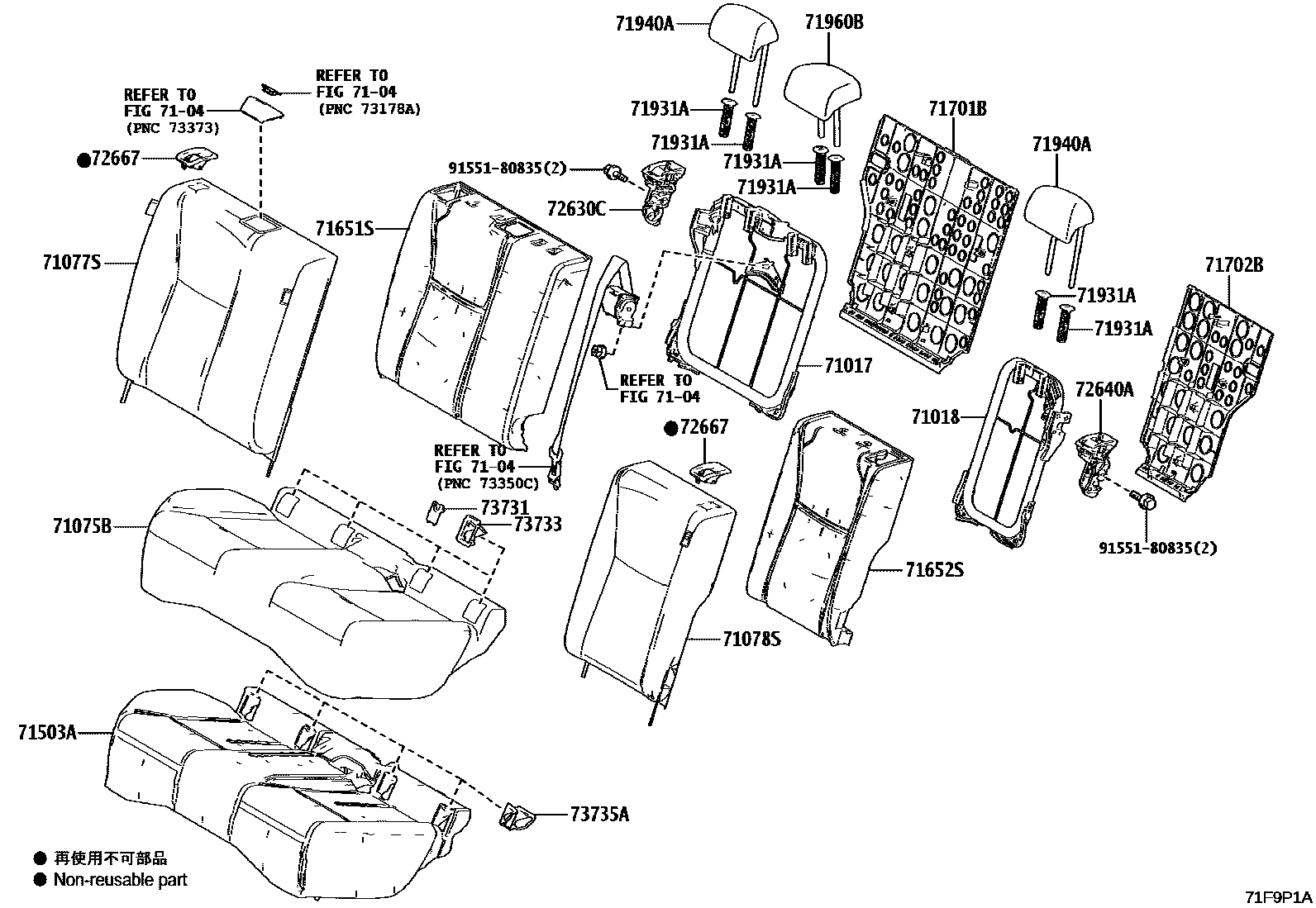

REAR SEAT & SEAT TRACK

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-52A00i202408

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-52560i202408

7104

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-52Z90-C2i202408

BLACK,TRIM2#

main71075-5C690-C1i202408

PARTIAL CUSTOMIZE,BLACK,TRIM20

main71075-5C690-C2i202408

PARTIAL CUSTOMIZE,BLACK/RED,TRIM20

main71075-5C690-C4i202408

PARTIAL CUSTOMIZE,BLACK/COPPER,TRIM20

main71075-5C690-C5i202408

PARTIAL CUSTOMIZE,BLACK/GRAY,TRIM20

main71075-5C690-C6i202408

PARTIAL CUSTOMIZE,BLACK/BEIGE,TRIM20

main71075-5C700-23i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/DK.ROSE/BLACK/,TRIM31

main71075-5C700-24i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/DK.ROSE/RED,TRIM31

main71075-5C700-25i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/DK.ROSE/LT.GRAY,TRIM31

main71075-5C700-28i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/FROMAGE/SHELL,TRIM01

main71075-5C700-29i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/FROMAGE/BLACK,TRIM01

main71075-5C700-41i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/FROMAGE/LT.GRAY,TRIM01

main71075-5C700-43i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/FROMAGE/COPPER,TRIM01

main71075-5C700-44i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/OCHER/SHELL,TRIM41

main71075-5C700-45i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/OCHER/BLACK,TRIM41

main71075-5C700-47i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/OCHER/LT.GRAY,TRIM41

main71075-5C700-48i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/OCHER/OCHER,TRIM41

main71075-5C700-A0i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),FROMAGE/FROMAGE/SHELL,TRIM01

main71075-5C700-A1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),FROMAGE/FROMAGE/BLACK,TRIM01

main71075-5C700-A3i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),FROMAGE/FROMAGE/LT.GRAY,TRIM01

main71075-5C700-A5i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),FROMAGE/FROMAGE/COPPER,TRIM01

main71075-5C700-D1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),DK.ROSE/DK.ROSE/BLACK,TRIM31

main71075-5C700-D2i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),DK.ROSE/DK.ROSE/RED,TRIM31

main71075-5C700-D3i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),DK.ROSE/DK.ROSE/LT.GRAY,TRIM31

main71075-5C700-E0i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),OCHER/OCHER/SHELL,TRIM41

main71075-5C700-E1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),OCHER/OCHER/BLACK,TRIM41

main71075-5C700-E3i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),OCHER/OCHER/LT.GRAY,TRIM41

main71075-5C700-E4i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),OCHER/OCHER/OCHER,TRIM41

main71075-5C720-C0i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/BLACK,TRIM21

main71075-5C720-C1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/RED,TRIM21

main71075-5C720-C3i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/GRAY,TRIM21

main71075-5C720-C4i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/COPPER,TRIM21

main71075-5C720-C5i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/BEIGE,TRIM21

main71075-5C720-D0i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),DK.ROSE/BLACK/BLACK,TRIM31

main71075-5C720-D1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),DK.ROSE/BLACK/RED,TRIM31

main71075-5C720-D2i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),DK.ROSE/BLACK/LT.GRAY,TRIM31

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-5CD10-C3i202408

BLACK,TRIM2#

main71077-5CF20-C1i202408

PARTIAL CUSTOMIZE,BLACK,TRIM20

main71077-5CF20-C2i202408

PARTIAL CUSTOMIZE,BLACK/RED,TRIM20

main71077-5CF20-C4i202408

PARTIAL CUSTOMIZE,BLACK/COPPER,TRIM20

main71077-5CF20-C5i202408

PARTIAL CUSTOMIZE,BLACK/GRAY,TRIM20

main71077-5CF20-C6i202408

PARTIAL CUSTOMIZE,BLACK/BEIGE,TRIM20

main71077-5CF30-22i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/FROMAGE/SHELL,TRIM01

main71077-5CF30-23i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/FROMAGE/BLACK,TRIM01

main71077-5CF30-25i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/FROMAGE/LT.GRAY,TRIM01

main71077-5CF30-27i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/FROMAGE/COPPER,TRIM01

main71077-5CF30-28i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/OCHER/SHELL,TRIM41

main71077-5CF30-29i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/OCHER/BLACK,TRIM41

main71077-5CF30-41i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/OCHER/LT.GRAY,TRIM41

main71077-5CF30-42i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/OCHER/OCHER,TRIM41

main71077-5CF30-A0i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),FROMAGE/FROMAGE/SHELL,TRIM01

main71077-5CF30-A1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),FROMAGE/FROMAGE/BLACK,TRIM01

main71077-5CF30-A3i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),FROMAGE/FROMAGE/LT.GRAY,TRIM01

main71077-5CF30-A5i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),FROMAGE/FROMAGE/COPPER,TRIM01

main71077-5CF30-C7i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/DK.ROSE/BLACK,TRIM31

main71077-5CF30-C8i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/DK.ROSE/RED,TRIM31

main71077-5CF30-C9i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/DK.ROSE/LT.GRAY,TRIM31

main71077-5CF30-D1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),DK.ROSE/DK.ROSE/BLACK,TRIM31

main71077-5CF30-D2i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),DK.ROSE/DK.ROSE/RED,TRIM31

main71077-5CF30-D3i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),DK.ROSE/DK.ROSE/LT.GRAY,TRIM31

main71077-5CF30-E0i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),OCHER/OCHER/SHELL,TRIM41

main71077-5CF30-E1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),OCHER/OCHER/BLACK,TRIM41

main71077-5CF30-E3i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),OCHER/OCHER/LT.GRAY,TRIM41

main71077-5CF30-E4i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),OCHER/OCHER/OCHER,TRIM41

main71077-5CF50-C0i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/BLACK,TRIM21

main71077-5CF50-C1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/RED,TRIM21

main71077-5CF50-C3i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/GRAY,TRIM21

main71077-5CF50-C4i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/COPPER,TRIM21

main71077-5CF50-C5i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/BEIGE,TRIM21

main71077-5CF50-D0i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),DK.ROSE/BLACK/BLACK,TRIM31

main71077-5CF50-D1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),DK.ROSE/BLACK/RED,TRIM31

main71077-5CF50-D2i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),DK.ROSE/BLACK/LT.GRAY,TRIM31

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-52V60-C4i202408

BLACK/RED,TRIM2#

main71078-52W90-20i202408

PARTIAL CUSTOMIZE,BLACK/COPPER,TRIM20

main71078-52W90-21i202408

PARTIAL CUSTOMIZE,BLACK/BEIGE,TRIM20

main71078-52W90-C7i202408

PARTIAL CUSTOMIZE,BLACK/BLACK,TRIM20

main71078-52W90-C8i202408

PARTIAL CUSTOMIZE,BLACK/RED,TRIM20

main71078-52W90-C9i202408

PARTIAL CUSTOMIZE,BLACK/GRAY,TRIM20

main71078-52X00-03i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),FROMAGE/FROMAGE/SHELL,TRIM01

main71078-52X00-04i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),FROMAGE/FROMAGE/BLACK,TRIM01

main71078-52X00-05i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),FROMAGE/FROMAGE/LT.GRAY,TRIM01

main71078-52X00-06i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),FROMAGE/FROMAGE/COPPER,TRIM01

main71078-52X00-20i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/FROMAGE/BLACK,TRIM01

main71078-52X00-21i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/FROMAGE/LT.GRAY,TRIM01

main71078-52X00-22i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/FROMAGE/COPPER,TRIM01

main71078-52X00-23i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/OCHER/SHELL,TRIM41

main71078-52X00-24i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/OCHER/BLACK,TRIM41

main71078-52X00-25i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/OCHER/LT.GRAY,TRIM41

main71078-52X00-26i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/OCHER/OCHRE,TRIM41

main71078-52X00-C6i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/DK.ROSE/BLACK,TRIM31

main71078-52X00-C7i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/DK.ROSE/RED,TRIM31

main71078-52X00-C8i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/DK.ROSE/LT.GRAY,TRIM31

main71078-52X00-C9i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/FROMAGE/SHELL,TRIM01

main71078-52X00-L2i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),OCHER/OCHER/SHELL,TRIM41

main71078-52X00-L3i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),OCHER/OCHER/BLACK,TRIM41

main71078-52X00-L4i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),OCHER/OCHER/LT.GRAY,TRIM41

main71078-52X00-L5i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),OCHER/OCHER/OCHRE,TRIM41

main71078-52X00-X2i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),DK.ROSE/DK.ROSE/BLACK,TRIM31

main71078-52X00-X3i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),DK.ROSE/DK.ROSE/RED,TRIM31

main71078-52X00-X4i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),DK.ROSE/DK.ROSE/LT.GRAY,TRIM31

main71078-52X20-20i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/BEIGE,TRIM21

main71078-52X20-C6i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/BLACK,TRIM21

main71078-52X20-C7i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/RED,TRIM21

main71078-52X20-C8i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/GRAY,TRIM21

main71078-52X20-C9i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/COPPER,TRIM21

main71078-52X20-D6i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),DK.ROSE/BLACK/BLACK,TRIM31

main71078-52X20-D7i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),DK.ROSE/BLACK/RED,TRIM31

main71078-52X20-D8i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),DK.ROSE/BLACK/LT.GRAY,TRIM31

71503APAD SUB-ASSY, REAR SEAT CUSHION

main71503-52720i202408

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-52A10i202408

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-52660i202408

71701BBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-K0030i202408

71702BBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-K0020i202408

71931ASUPPORT, REAR SEAT HEADREST

main71930-47050-C5i202408

W(LOCK),BLACK,TRIM2#

main71931-47030-C4i202408

W/O(LOCK),BLACK,TRIM2#

71940AHEADREST ASSY, REAR SEAT

main71940-52Q30-C1i202408

BLACK,TRIM2#

main71940-52Q40-C1i202408

PARTIAL CUSTOMIZE,BLACK,TRIM20

main71940-52Q40-C2i202408

PARTIAL CUSTOMIZE,BLACK/RED,TRIM20

main71940-52Q40-C4i202408

PARTIAL CUSTOMIZE,BLACK/COPPER,TRIM20

main71940-52Q40-C5i202408

PARTIAL CUSTOMIZE,BLACK/GRAY,TRIM20

main71940-52Q40-C6i202408

PARTIAL CUSTOMIZE,BLACK/BEIGE,TRIM20

main71940-52Q50-A0i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),FROMAGE/FROMAGE/SHELL,TRIM01

main71940-52Q50-A1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),FROMAGE/FROMAGE/BLACK,TRIM01

main71940-52Q50-A3i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),FROMAGE/FROMAGE/LT.GRAY,TRIM01

main71940-52Q50-A5i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),FROMAGE/FROMAGE/COPPER,TRIM01

main71940-52Q50-C0i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/BLACK/SHELL,TRIM01,21,31,41

main71940-52Q50-C1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/BLACK/BLACK,TRIM01,21,31,41

main71940-52Q50-C2i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/BLACK/RED,TRIM01,21,31,41

main71940-52Q50-C3i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/BLACK/LT.GRAY,TRIM01,21,31,41

main71940-52Q50-C4i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/BLACK/OCHER,TRIM01,21,31,41

main71940-52Q50-C5i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/BLACK/COPPER,TRIM01,21,31,41

main71940-52Q50-D1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),DK.ROSE/DK.ROSE/BLACK,TRIM31

main71940-52Q50-D2i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),DK.ROSE/DK.ROSE/RED,TRIM31

main71940-52Q50-D3i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),DK.ROSE/DK.ROSE/LT.GRAY,TRIM31

main71940-52Q50-E0i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),OCHER/OCHER/SHELL,TRIM41

main71940-52Q50-E1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),OCHER/OCHER/BLACK,TRIM41

main71940-52Q50-E3i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),OCHER/OCHER/LT.GRAY,TRIM41

main71940-52Q50-E4i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),OCHER/OCHER/OCHER,TRIM41

main71940-52Q70-C0i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/BLACK,TRIM21

main71940-52Q70-C1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/RED,TRIM21

main71940-52Q70-C3i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/GRAY,TRIM21

main71940-52Q70-C4i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/COPPER,TRIM21

main71940-52Q70-C5i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/BEIGE,TRIM21

main71940-52Q70-D0i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),DK.ROSE/DK.ROSE/BLACK,TRIM31

main71940-52Q70-D1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),DK.ROSE/DK.ROSE/RED,TRIM31

main71940-52Q70-D2i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),DK.ROSE/DK.ROSE/LT.GRAY,TRIM31

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-52F30-C1i202408

BLACK,TRIM2#

main71960-52F60-C1i202408

PARTIAL CUSTOMIZE,BLACK,TRIM20

main71960-52F60-C2i202408

PARTIAL CUSTOMIZE,BLACK/RED,TRIM20

main71960-52F60-C4i202408

PARTIAL CUSTOMIZE,BLACK/COPPER,TRIM20

main71960-52F60-C5i202408

PARTIAL CUSTOMIZE,BLACK/GRAY,TRIM20

main71960-52F60-C6i202408

PARTIAL CUSTOMIZE,BLACK/BEIGE,TRIM20

main71960-52F70-A0i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),FROMAGE/FROMAGE/SHELL,TRIM01

main71960-52F70-A1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),FROMAGE/FROMAGE/BLACK,TRIM01

main71960-52F70-A3i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),FROMAGE/FROMAGE/LT.GRAY,TRIM01

main71960-52F70-A5i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),FROMAGE/FROMAGE/COPPER,TRIM01

main71960-52F70-C0i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/BLACK/SHELL,TRIM01,21,31,41

main71960-52F70-C1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/BLACK/BLACK,TRIM01,21,31,41

main71960-52F70-C2i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/BLACK/RED,TRIM01,21,31,41

main71960-52F70-C3i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/BLACK/LT.GRAY,TRIM01,21,31,41

main71960-52F70-C4i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/BLACK/OCHER,TRIM01,21,31,41

main71960-52F70-C5i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),BLACK/BLACK/COPPER,TRIM01,21,31,41

main71960-52F70-D1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),DK.ROSE/DK.ROSE/BLACK,TRIM31

main71960-52F70-D2i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),DK.ROSE/DK.ROSE/RED,TRIM31

main71960-52F70-D3i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),DK.ROSE/DK.ROSE/LT.GRAY,TRIM31

main71960-52F70-E0i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),OCHER/OCHER/SHELL,TRIM41

main71960-52F70-E1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),OCHER/OCHER/BLACK,TRIM41

main71960-52F70-E3i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),OCHER/OCHER/LT.GRAY,TRIM41

main71960-52F70-E4i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-LEATHER(BESPOKE),OCHER/OCHER/OCHER,TRIM41

main71960-52F90-C0i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/BLACK,TRIM21

main71960-52F90-C1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/RED,TRIM21

main71960-52F90-C3i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/GRAY,TRIM21

main71960-52F90-C4i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/COPPER,TRIM21

main71960-52F90-C5i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),BLACK/BLACK/BEIGE,TRIM21

main71960-52F90-D0i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),DK.ROSE/DK.ROSE/BLACK,TRIM31

main71960-52F90-D1i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),DK.ROSE/DK.ROSE/RED,TRIM31

main71960-52F90-D2i202408

FULL CUSTOMIZE&SEAT COVER MATERIAL-SUEDE(BESPOKE),DK.ROSE/DK.ROSE/LT.GRAY,TRIM31

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-47050-C2i202408

BLACK,TRIM2#

sub72630-47050

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-47050-C2i202408

BLACK,TRIM2#

sub72640-47050

72667BEZEL, REAR SEATBACK LOCK, UPPER

main72667-47010-C1i202408

BLACK,TRIM2#

73731COVER, CHILD RESTRAINT SEAT

main73731-12020-C0i202408

BLACK,TRIM2#

73733COVER, CHILD RESTRAINT SEAT BASE

main73733-76010-C0i202408

BLACK,TRIM2#

73735ACUP, CHILD RESTRAINT SEAT GUIDE

main73735-76010-C0i202408

BLACK,TRIM2#

9155180835

main91551-80835

21 parts on this diagram · 2 diagrams in section
