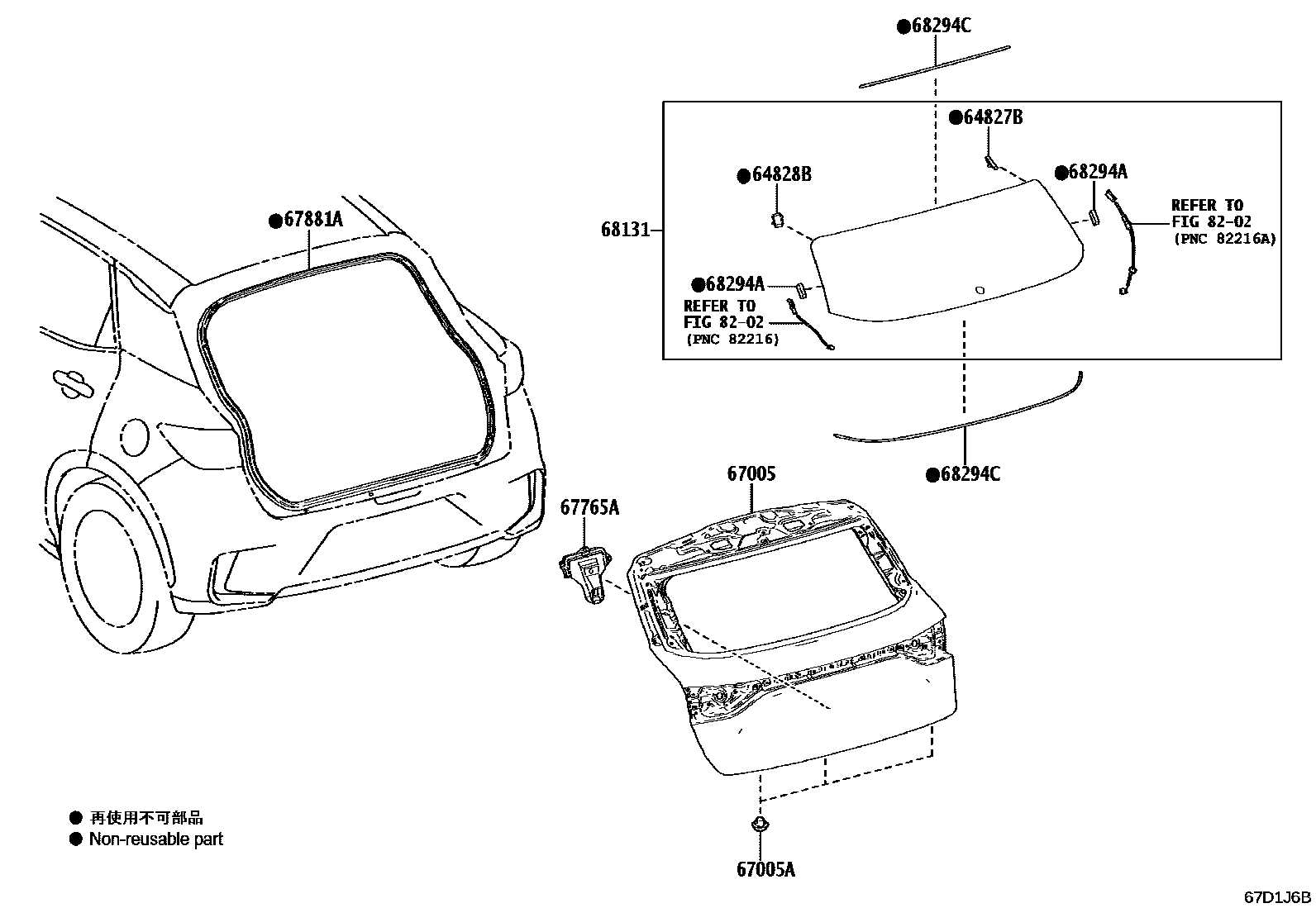

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

64827BCLIP, BACK WINDOW GLASS, RH

main64827-52150×2iGAYA16202408

64828BCLIP, BACK WINDOW GLASS, LH

main64828-52150×2iGAYA16202408

67005PANEL SUB-ASSY, BACK DOOR

main67005-52K00supersedes 67005-52J90iGAYA16202408-202506

AUTO & EASY CLOSER DOOR-WITH(POWWER BACK DOOR)

67005APLUG, HOLE(FOR BACK DOOR PANEL)

main90950-01A34×3iGAYA16202408

67765ACOVER, BACK DOOR SERVICE HOLE, NO.1

main67765-52030iGAYA16202408

AUDIO-L1.0 13SPEAKER

67881AWEATHERSTRIP, BACK DOOR

main67881-52300iGAYA16202408

68131GLASS, BACK DOOR

68294ADAM, BACK DOOR GLASS ADHESIVE

main68294-26030×4iGAYA16202408

68294CDAM, BACK DOOR GLASS ADHESIVE, NO.1

main56117-50140×4iGAYA16202408

8202

10 parts on this diagram · 2 diagrams in section
