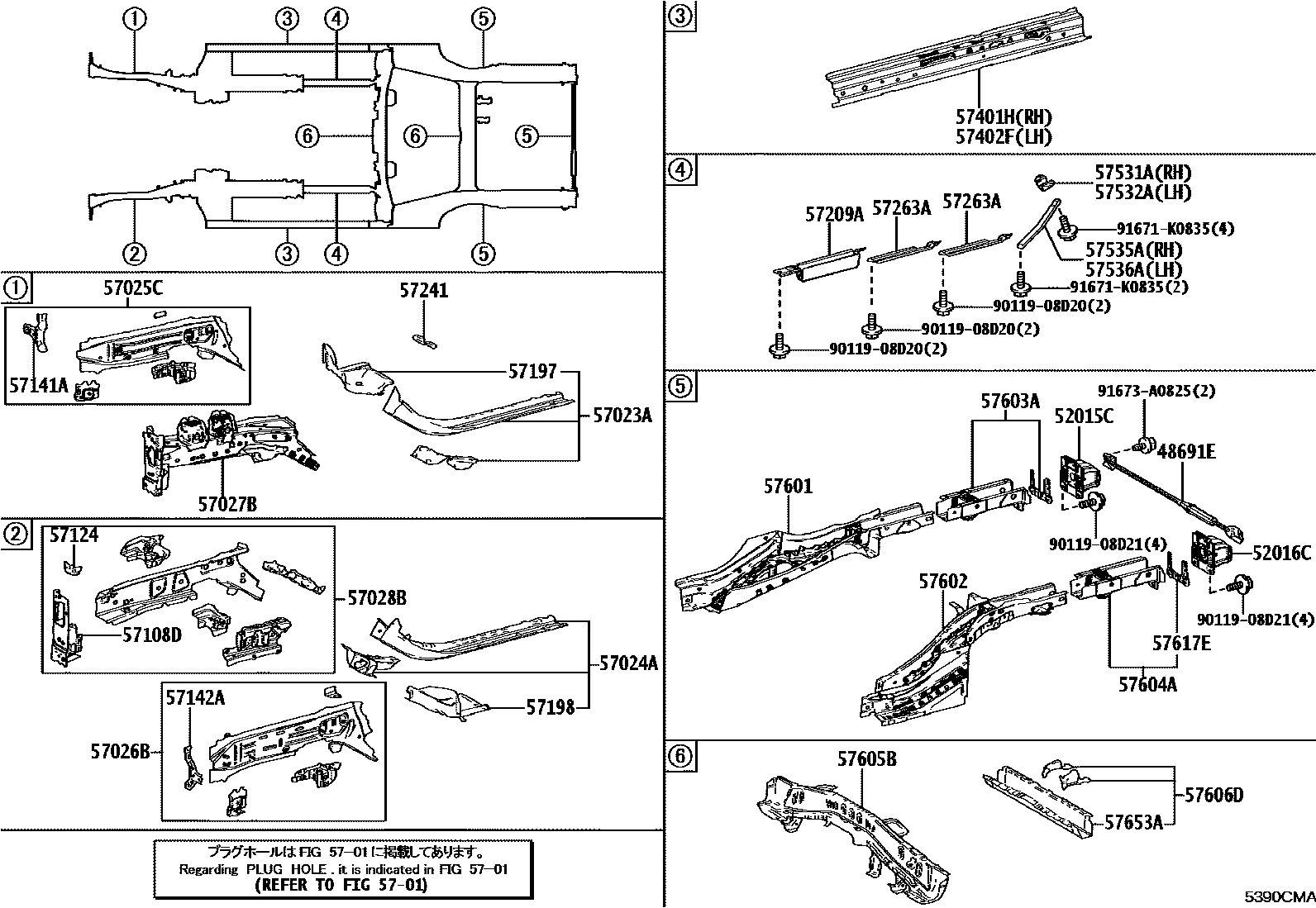

FLOOR SIDE MEMBER

48691EDAMPER, SUSPENSION TOWER

main48691-52010iGAYA16202408

52015CARM SUB-ASSY, REAR BUMPER, RH

main52015-52151iGAYA16202408

52016CARM SUB-ASSY, REAR BUMPER, LH

main52016-52161iGAYA16202408

5701

57023AMEMBER SUB-ASSY, REAR SIDE, RH

main57023-52091iGAYA16202408

57024AMEMBER SUB-ASSY, REAR SIDE, LH

main57024-52111iGAYA16202408

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-52060iGAYA16202408

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-52050iGAYA16202408

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-52060iGAYA16202408

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-52060iGAYA16202408

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-K0010iGAYA16202408

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-K0010iGAYA16202408

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-52030iGAYA16202408

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-K0010iGAYA16202408

57197BOX, TORQUE, FRONT RH

main57197-52051iGAYA16202408

57198BOX, TORQUE, FRONT LH

main57198-52061iGAYA16202408

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-52020iGAYA16202408

57241REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH

main57241-52020iGAYA16202408

57263APLATE, ENGINE REAR MOUNTING SUPPORT MEMBER CUSHION

main57263-52010iGAYA16202408

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-52310iGAYA16202408

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-52350iGAYA16202408

57531ABRACKET, FRONT FLOOR CENTER BRACE, RH

main57531-52010iGAYA16202408

57532ABRACKET, FRONT FLOOR CENTER BRACE, LH

main57532-52010iGAYA16202408

57535ABRACE, FRONT FLOOR, RH

main57535-52030iGAYA16202408

57536ABRACE, FRONT FLOOR, LH

main57536-52030iGAYA16202408

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-52540iGAYA16202408

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-52680iGAYA16202408

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-52140iGAYA16202408

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-52230iGAYA16202408

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-52300iGAYA16202408

57606DMEMBER SUB-ASSY, REAR ABSORBER MOUNTING

main57606-12301iGAYA16202408

57617EPLATE, REAR FLOOR SIDE MEMBER SUB

main57617-52040iGAYA16202408

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-47040iGAYA16202408

9011908D20

main90119-08D20

9011908D21

main90119-08D21

91671K0835

main91671-K0835

91673A0825

main91673-A0825

37 parts on this diagram · 1 diagram in section
