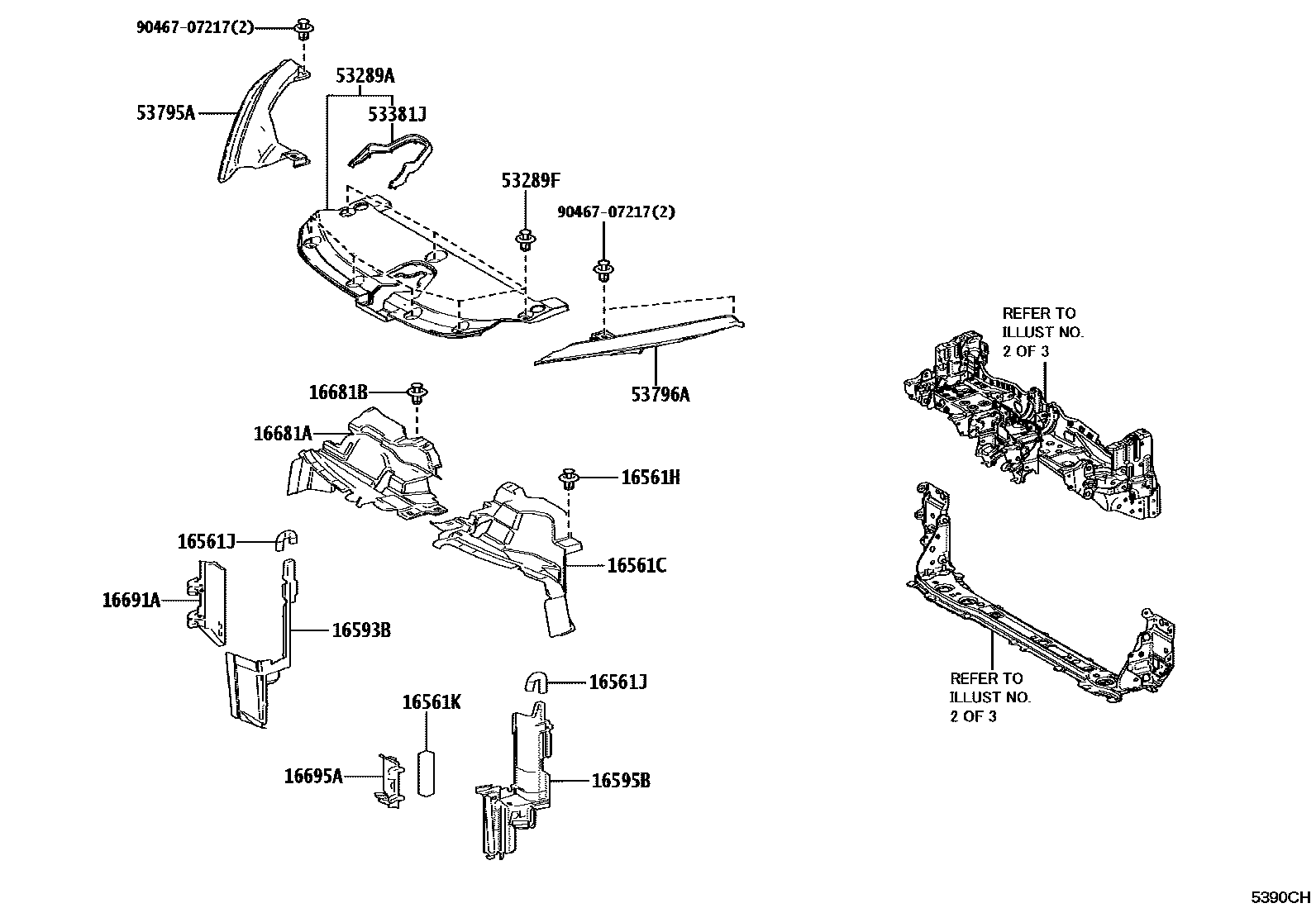

FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE & RADIATOR SUPPORT 0002 1W/O(COMFORT PACKAGE) 0003 1COMFORT PACKAGE 0004 1DASH PANEL

16561CSEAL, RADIATOR TO SUPPORT, NO.1

main16561-18020iG16EGTS..GAYA16202408

16561HCLIP, RADIATOR TO SUPPORT SEAL

main90467-07215iG16EGTS..GAYA16202408

16561JSEAL, RADIATOR TO SUPPORT, NO.2

main16561-18030×2iG16EGTS..GAYA16202408

16561KSEAL, RADIATOR TO SUPPORT, NO.3

main16561-18060iG16EGTS..GAYA16202408

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-18040iG16EGTS..GAYA16202408

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-18040iG16EGTS..GAYA16202408

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-18040iG16EGTS..GAYA16202408

16681BCLIP, RADIATOR UPPER AIR GUIDE PLATE

main90467-10216iG16EGTS..GAYA16202408

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-18020iG16EGTS..GAYA16202408

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-18010iG16EGTS..GAYA16202408

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-52120iGAYA16202408

53289FCLIP(FOR RADIATOR SUPPORT OPENING COVER)

main90467-07217×7iGAYA16202408

53381JSEAL, HOOD TO RADIATOR SUPPORT

main53381-52070iGAYA16202408

53795ACOVER, ENGINE ROOM, SIDE

main53795-52050iGAYA16202408

53796ACOVER, ENGINE ROOM SIDE, LH

main53796-52020iGAYA16202408

9046707217

main90467-07217

16 parts on this diagram · 4 diagrams in section
