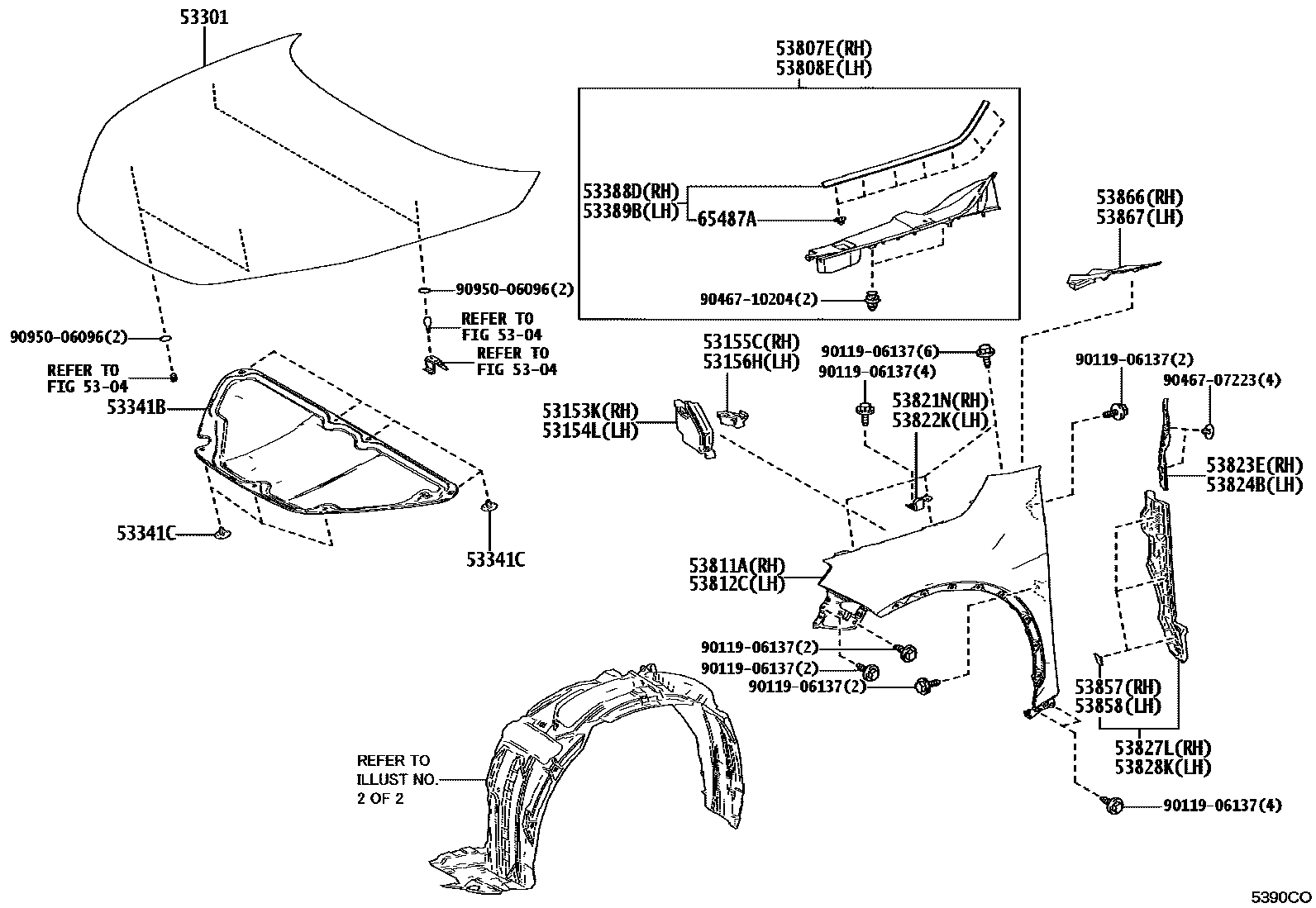

HOOD & FRONT FENDER

0001 1 0002 1

5304

53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-52100iGAYA16202408

53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-52100iGAYA16202408

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-52290iGAYA16202408

53156HSEAL, RADIATOR GRILLE, NO.2

main53156-52080iGAYA16202408

53301HOOD SUB-ASSY

main53301-52470iGAYA16202408

53341BINSULATOR, HOOD

main53341-52270iGAYA16202408

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iGAYA16202408

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-52060iGAYA16202408

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-52060iGAYA16202408

53807ESEAL SUB-ASSY, FENDER APRON MUDGUARD, RH

main53807-52050iGAYA16202408

53808ESEAL SUB-ASSY, FENDER APRON MUDGUARD, LH

main53808-52050iGAYA16202408

53811APANEL, FRONT FENDER, RH

main53811-52590iGAYA16202408

53812CPANEL, FRONT FENDER, LH

main53812-52590iGAYA16202408

53821NBRACKET, FRONT FENDER, REAR UPPER RH

main53821-52060iGAYA16202408

53822KBRACKET, FRONT FENDER, REAR UPPER LH

main53821-52060iGAYA16202408

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-52010iGAYA16202408

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-52010iGAYA16202408

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52250iGAYA16202408

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52260iGAYA16202408

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iGAYA16202408

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iGAYA16202408

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52251iGAYA16202408

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52251iGAYA16202408

65487ACLIP, CORNER PROTECTOR

main65487-60010iGAYA16202408

9011906137

main90119-06137

9046707223

main90467-07223

9046710204

main90467-10204

9095006096

main90950-06096

29 parts on this diagram · 2 diagrams in section
