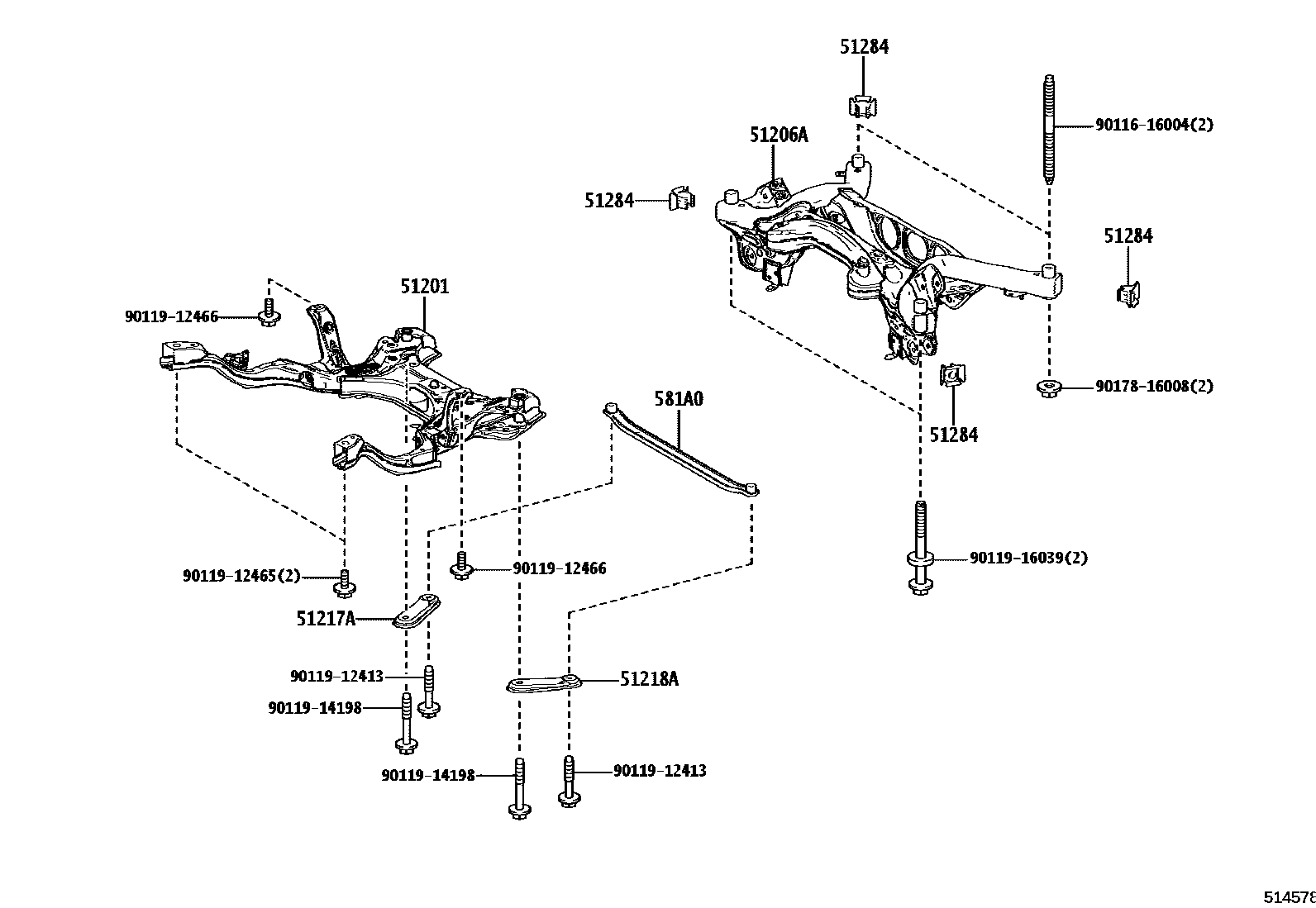

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1ENGINE UNDER COVER 0003 1FLOOR UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52141iGAYA16¥49,600202408

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-52040iGAYA16¥79,700202408

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51237-52030iGAYA16¥700202408

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51237-52030iGAYA16¥700202408

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-47010iGAYA16¥340202408

581A0BRACE ASSY, FRONT FLOOR UNDER, FRONT

main581A0-52010iGAYA16¥46,000202408

9011616004

main90116-16004¥610

9011912413

main90119-12413¥240

9011912465

main90119-12465¥240

9011912466

main90119-12466¥240

9011914198

main90119-14198¥430

9011916039

main90119-16039¥610

9017816008

main90178-16008¥190

13 parts on this diagram · 3 diagrams in section
