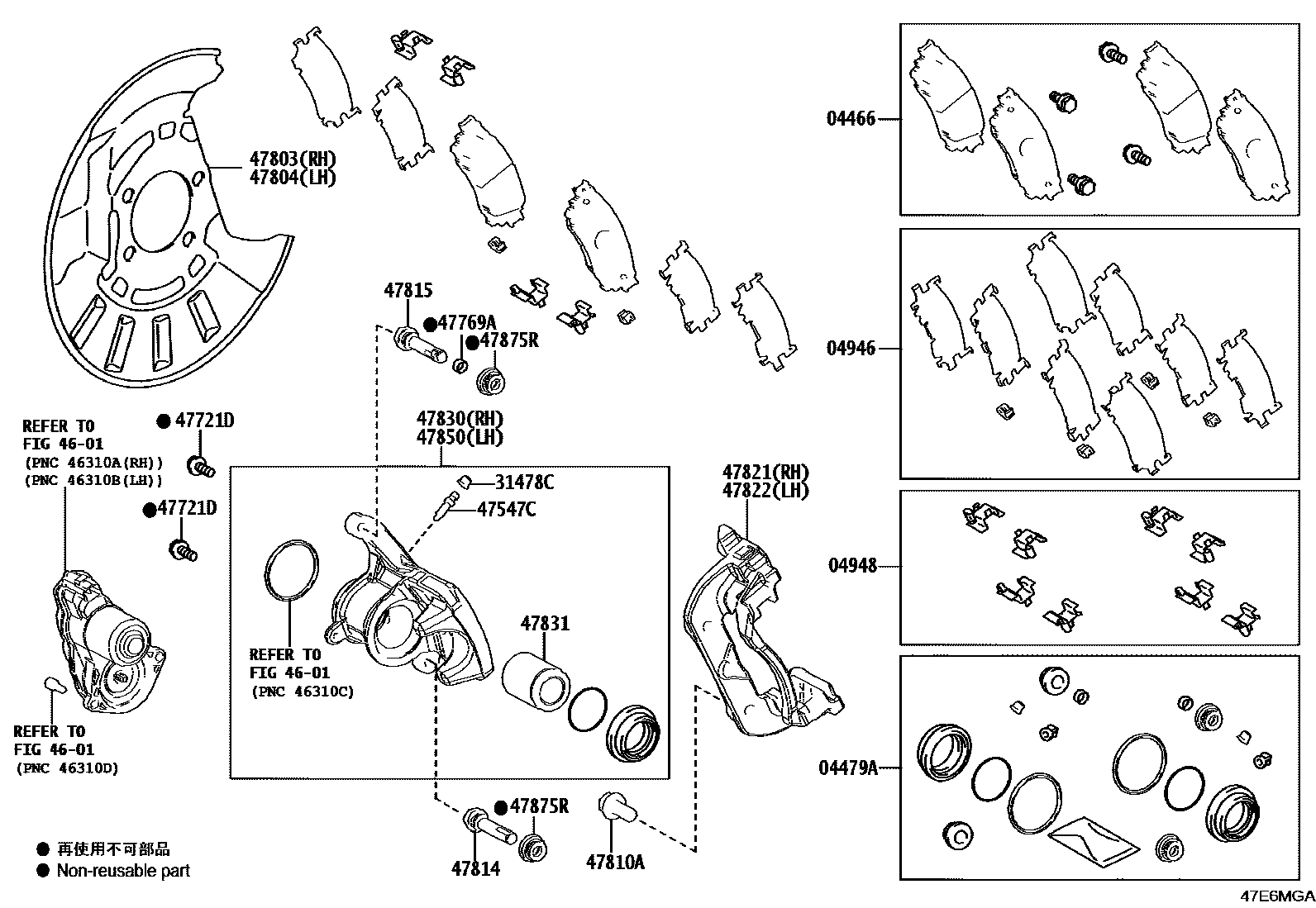

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-10010iGAYA16202408

MARK AK NS554

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-10091iGAYA16202408

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-52140iGAYA16202408

04948FITTING KIT, DISC BRAKE, REAR

main04948-52070iGAYA16202408

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGAYA16202408

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iGAYA16202408

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iGAYA16202408

*8-1.00PX23-12.5

sub90016-AA614

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iGAYA16202408

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-33010iGAYA16202408

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-33010iGAYA16202408

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iGAYA16202408

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iGAYA16202408

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iGAYA16202408

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-52330iGAYA16202408

main47821-52360iGAYA16202412

FRONT WHEEL BRAKE-18INCHES DISC(YELLOW PAINTED)

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-52330iGAYA16202408

main47822-52360iGAYA16202412

FRONT WHEEL BRAKE-18INCHES DISC(YELLOW PAINTED)

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-52330iGAYA16202408

main47830-52360iGAYA16202412

FRONT WHEEL BRAKE-18INCHES DISC(YELLOW PAINTED)

47831PISTON, REAR DISC BRAKE

main47831-10030iGAYA16202408

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52330iGAYA16202408

main47850-52360iGAYA16202412

FRONT WHEEL BRAKE-18INCHES DISC(YELLOW PAINTED)

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270iGAYA16202408

20 parts on this diagram · 1 diagram in section
