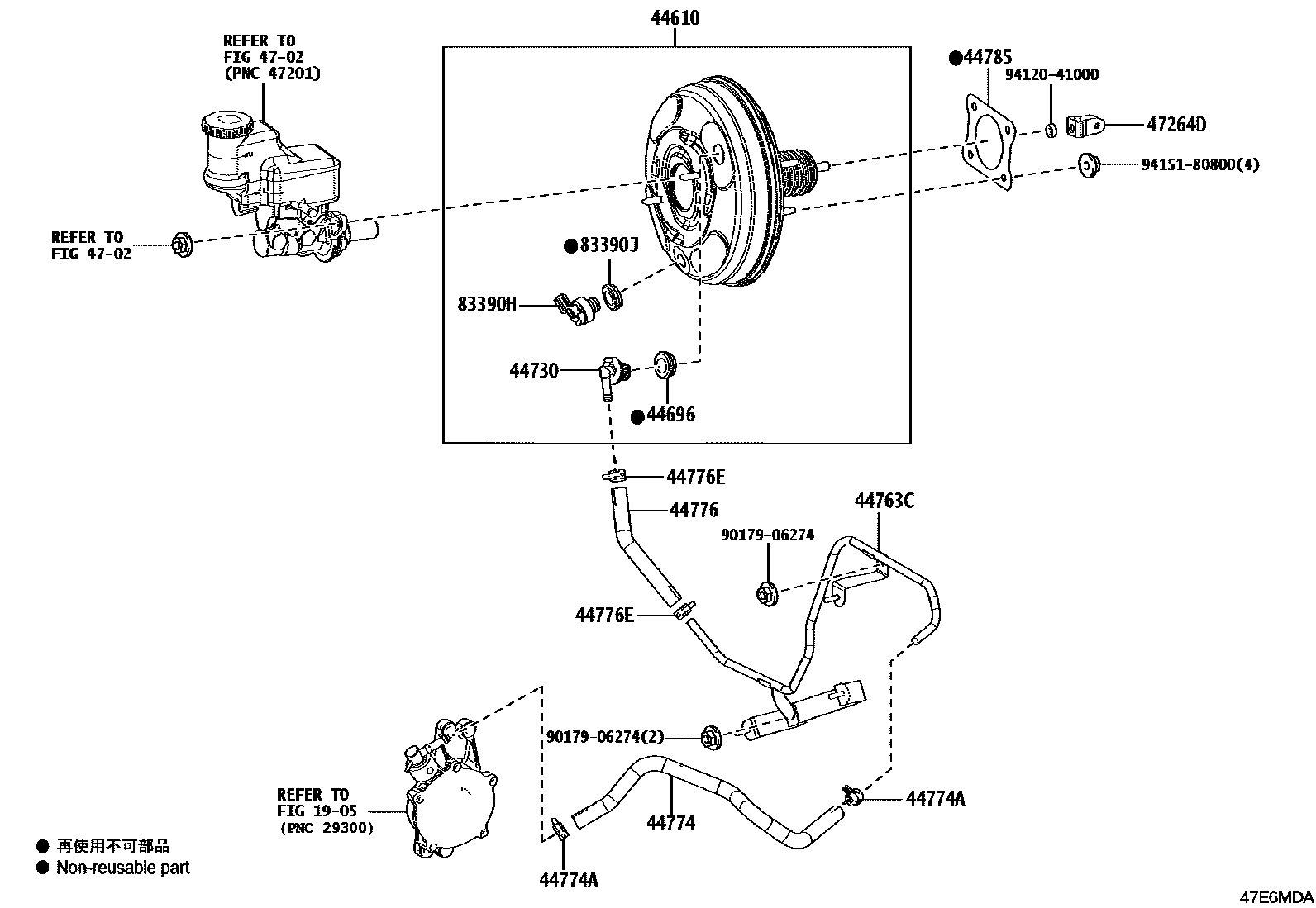

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-52K50iGAYA16202408

44696GROMMET, CHECK VALVE

main90480-24439iGAYA16202408

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iGAYA16202408

44763CTUBE, HOSE TO HOSE, NO.2

main44763-52220iGAYA16202408

44774HOSE, UNION TO CONNECTOR TUBE

main44774-52230iGAYA16202408

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014×2iGAYA16202408

44776HOSE, BRAKE BOOSTER

main44776-52100iGAYA16202408

44776ECLIP(FOR BRAKE BOOSTER HOSE)

main90467-16014×2iGAYA16202408

44785GASKET, BRAKE BOOSTER

main44785-12040iGAYA16202408

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iGAYA16202408

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iGAYA16202408

83390JGROMMET, VACUUM WARNING SWITCH

main90480-24439iGAYA16202408

9017906274

main90179-06274

9412041000

main94120-41000

9415180800

main94151-80800

17 parts on this diagram · 1 diagram in section
