16261GHOSE, WATER BY-PASS, NO.1

main16261-18030i202408

16261HCLIP(FOR WATER BY-PASS HOSE NO.1)

main96136-41901i202408

16261RCLAMP OR CLIP(FOR WATER BY-PASS HOSE)

main96138-41701i202408

16264HOSE, WATER BY-PASS, NO.2

main16264-18040i202408

16264ECLIP(FOR WATER BY-PASS HOSE NO.2)

main96136-41901×2i202408

16267HOSE, WATER BY-PASS, NO.3

main16267-18020i202408

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main96136-42201i202408

16267BCLIP(FOR WATER BY-PASS HOSE)

main96136-42501i202408

16361FAN

main16361-24140i202408

16363MOTOR, COOLING FAN

main16363-25020i202408

16400RADIATOR ASSY

main16400-18060i202408

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i202408

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i202408

16470MGROMMET

main90480-40021×2i202408

16475ACAP, RESERVE TANK

main16475-28140i202408

164A2TANK, RESERVE SEALED W/O CAP

main164A2-18020i202408

16523CUSHION, SUB-RADIATOR SUPPORT

main16523-37010×2i202408

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-18040×2i202408

16571CHOSE, RADIATOR, NO.1

main16571-18060supersedes 16571-18050i202408

COMFORT PACKAGE(AUTOMATIC TRANSMISSION),NO.1:REFER ILLUST.

main16571-18070supersedes 16571-18050i202408

COMFORT PACKAGE(AUTOMATIC TRANSMISSION),NO.2:REFER ILLUST.

16571DCLIP, RADIATOR HOSE, NO.1

main96136-44301×2i202408

16572DHOSE, RADIATOR, NO.2

main16572-18020supersedes 16572-18010i202408

COMFORT PACKAGE(AUTOMATIC TRANSMISSION),NO.1:REFER ILLUST.

main16572-18030supersedes 16572-18010i202408

COMFORT PACKAGE(AUTOMATIC TRANSMISSION),NO.2:REFER ILLUST.

16572ECLIP, RADIATOR HOSE, NO.2

16711SHROUD, FAN

main16711-18030i202408

1703

9009904633

main90099-04633

9009904634

main90099-04634

91673A0622

main91673-A0622

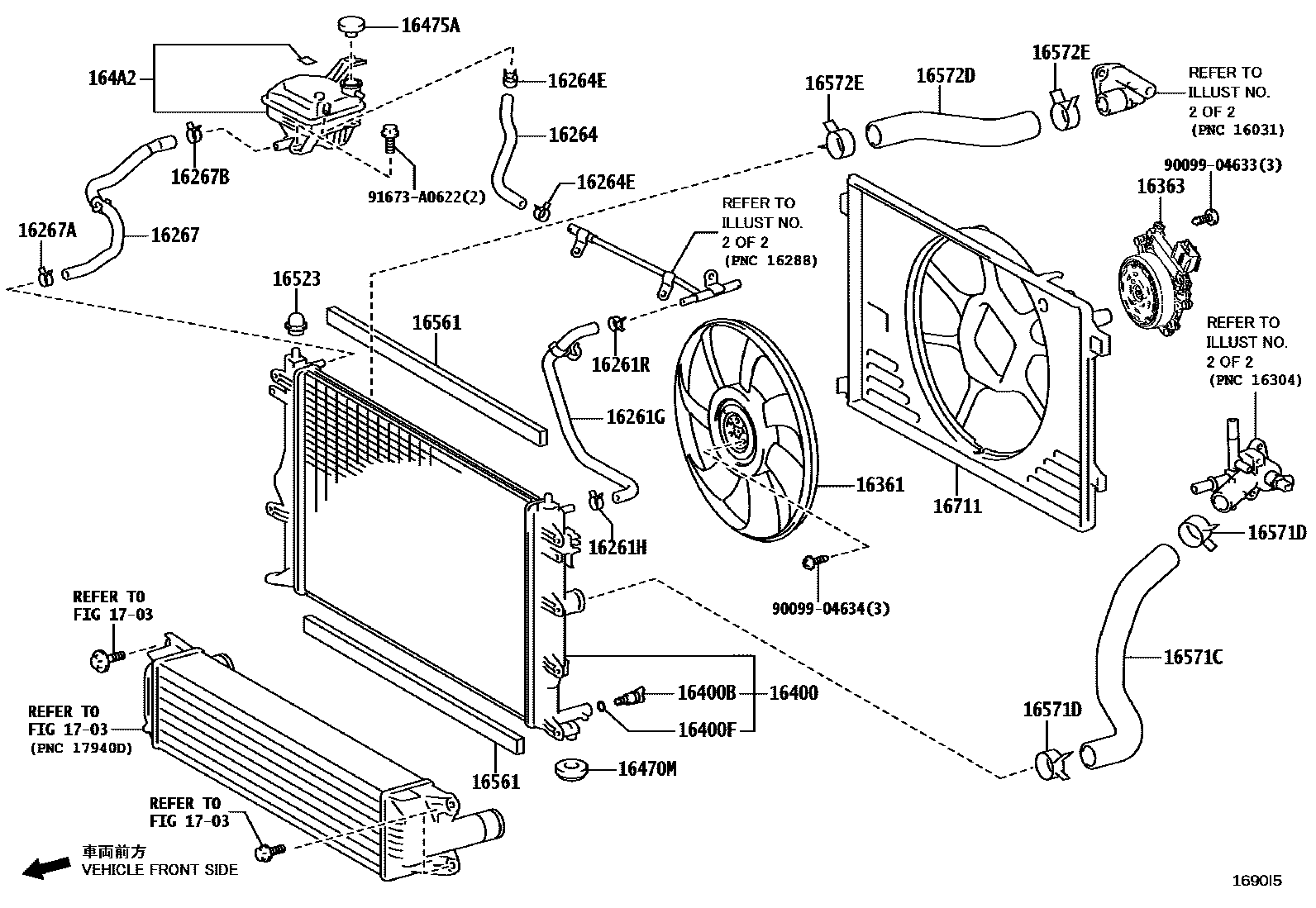

RADIATOR & WATER OUTLET
