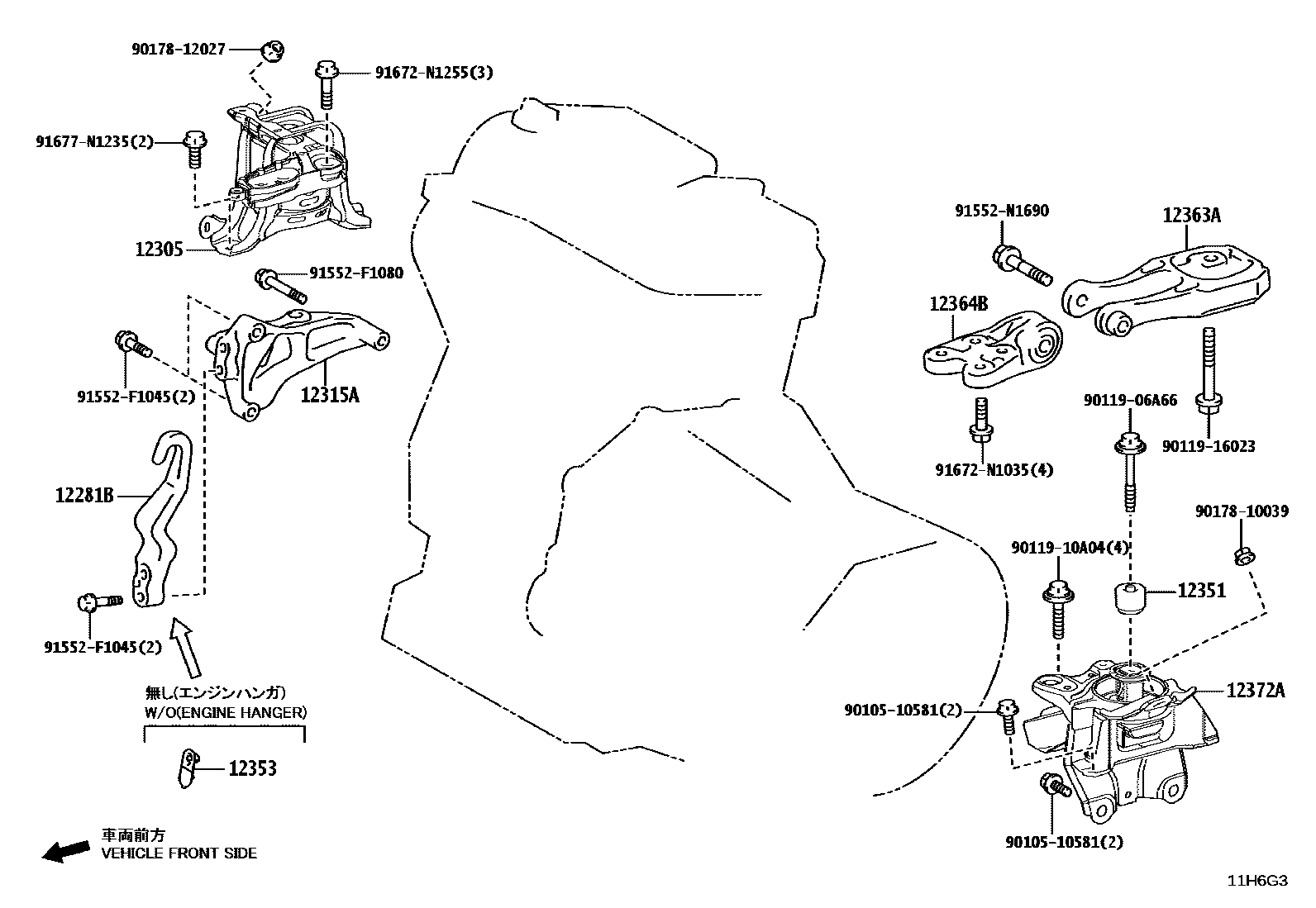

MOUNTING
12281BHANGER, ENGINE, NO.1
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12351DAMPER, ENGINE MOUNTING
12353CAP, ENGINE MOUNTING BRACKET
12363AROD, ENGINE MOVING CONTROL
12364BROD, ENGINE MOVING CONTROL, NO.2
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
9010510581
main90105-10581
9011906A66
main90119-06A66
9011910A04
main90119-10A04
9011916023
main90119-16023
9017810039
main90178-10039
9017812027
main90178-12027
91552F1045
main91552-F1045
91552F1080
main91552-F1080
91552N1690
main91552-N1690
91672N1035
main91672-N1035
91672N1255
main91672-N1255
91677N1235
main91677-N1235
20 parts on this diagram · 1 diagram in section
