STANDARD TOOL

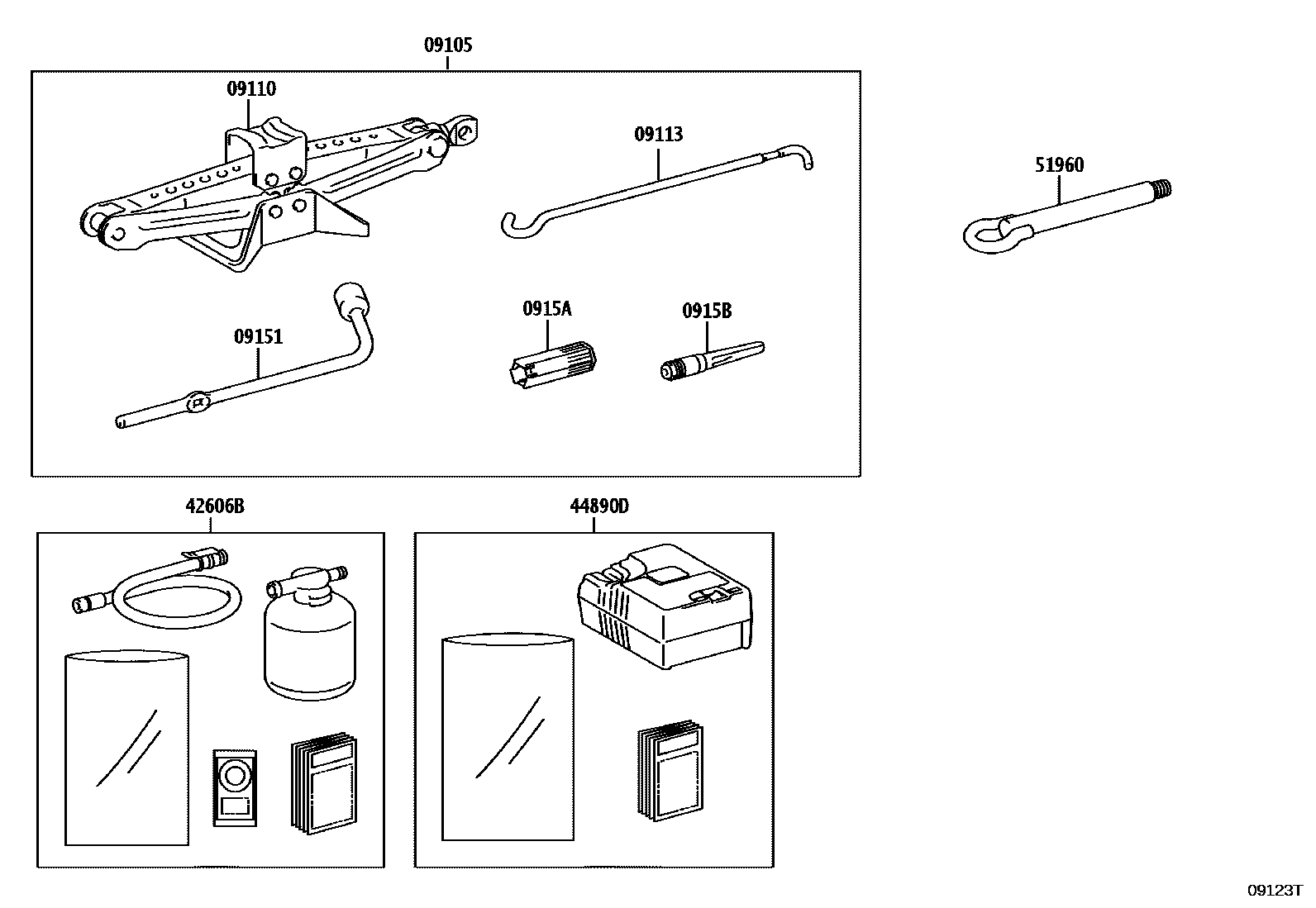

Parts diagram

09105BOX SET, JACK

main09105-52050i202408

09110JACK ASSY

main09110-52050i202408

09113HANDLE, JACK

main09113-42030i202408

09151WRENCH, HUB BOLT BOX

main09151-78010i202408

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-53010i202408

0915BPIN, WHEEL GUIDE

main0915B-53010i202408

42606BREPAIR KIT, TUBELESS TIRE

main42606-42080i202408

44890DCOMPRESSOR ASSY, AIR

main44890-42050i202408

51960HOOK ASSY, FRONT

main51960-16030i202408

9 parts on this diagram · 1 diagram in section
