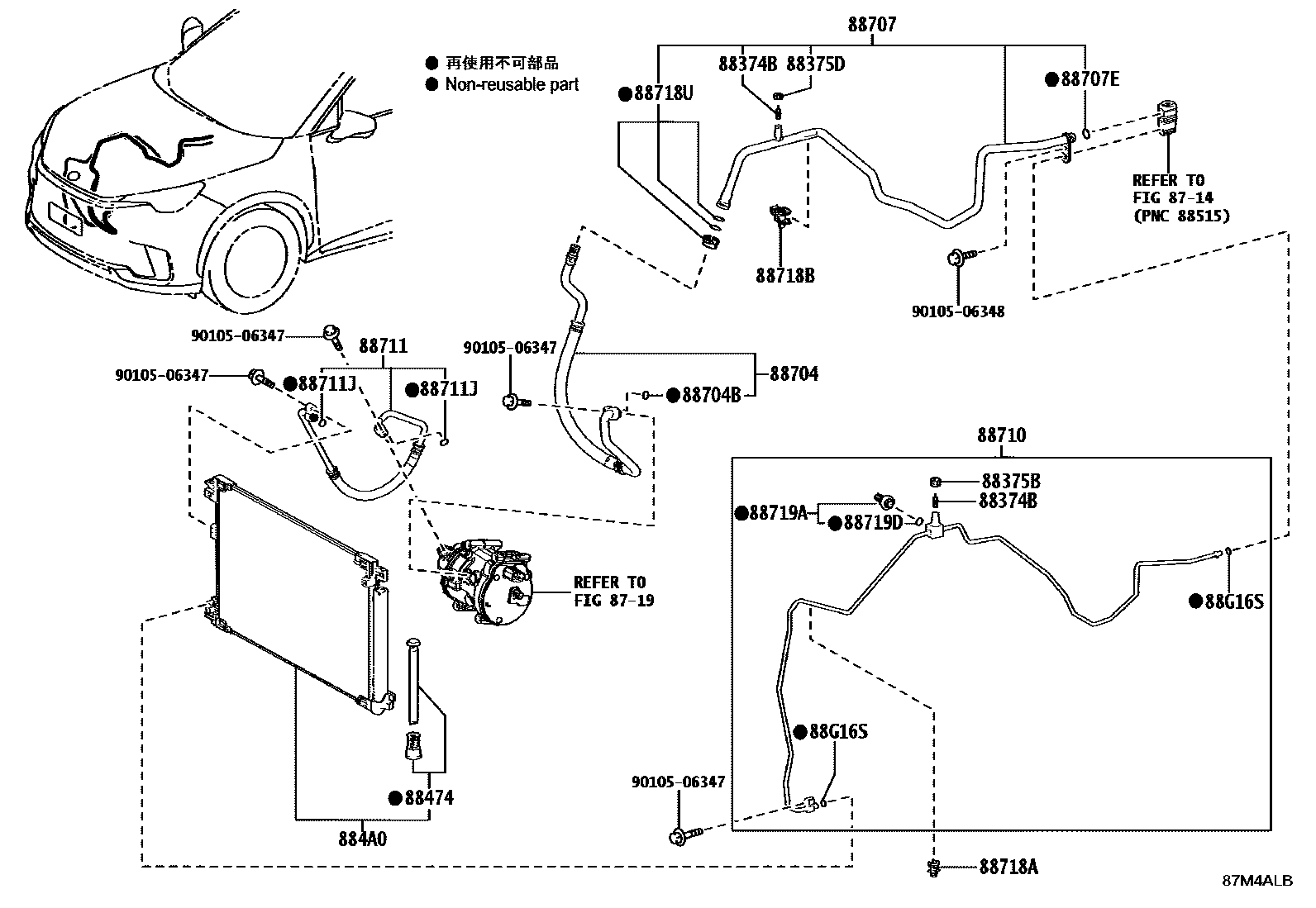

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iMAYH1#202312

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iMAYH1#..ARL,GEN,TWN202312

UKRAINE SPEC

main88375-30320iMAYH1#..EUR,TUR202312

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iMAYH1#..ARL,GEN,TWN202312

UKRAINE SPEC

main88375-30310iMAYH1#..EUR,TUR202312

88474DRYER, COOLER

main88474-12020iMAYH1#202312

884A0CONDENSER ASSY, COOLER

main884A0-52020iMAYH1#202312

88704HOSE SUB-ASSY, SUCTION

main88704-K0060iMAYH1#202312

88704BRING, O(FOR SUCTION HOSE)

main90099-14121iMAYH1#202312

ID=13.4,OD=18.2

88707PIPE SUB-ASSY, SUCTION

main88707-52410iMAYH1#..RHD..EUR202312

main88707-52420iMAYH1#..RHD..(ARL,GEN)202312

main88707-52440iMAYH1#..LHD..(EUR,TUR)202312

main88707-52450iMAYH10..LHD..(GEN,TWN)202312

UKRAINE SPEC

88707ERING, O, NO.2(FOR SUCTION TUBE)

main90099-14121iMAYH1#202312

ID=13.4,OD=18.2

88710TUBE ASSY, AIR CONDITIONER

main88710-52280iMAYH1#..RHD..EUR202312

main88710-52290iMAYH1#..RHD..(ARL,GEN)202312

main88710-52320iMAYH1#..LHD..(EUR,TUR)202312

main88710-52330iMAYH10..LHD..(GEN,TWN)202312

UKRAINE SPEC

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-K0070iMAYH1#202312

88711JRING, O, NO.1(FOR DISCHARGE HOSE)

main90099-14120iMAYH1#202312

ID=10.8,OD=15.6

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-1A870iMAYH1#202312

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-K0020iMAYH1#202312

88718UCLAMP, NO.6(FOR COOLER REFRIGERANT PIPE)

main88718-52280iMAYH1#202312

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iMAYH1#202312

88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)

main90099-14122iMAYH1#202312

ID=10.6,OD=14.16

88G16SRING, O, NO.3(FOR LIQUID TUBE)

main90099-14119iMAYH1#202312

ID=6.7,OD=10.3

9010506347

main90105-06347

9010506348

main90105-06348

22 parts on this diagram · 2 diagrams in section
