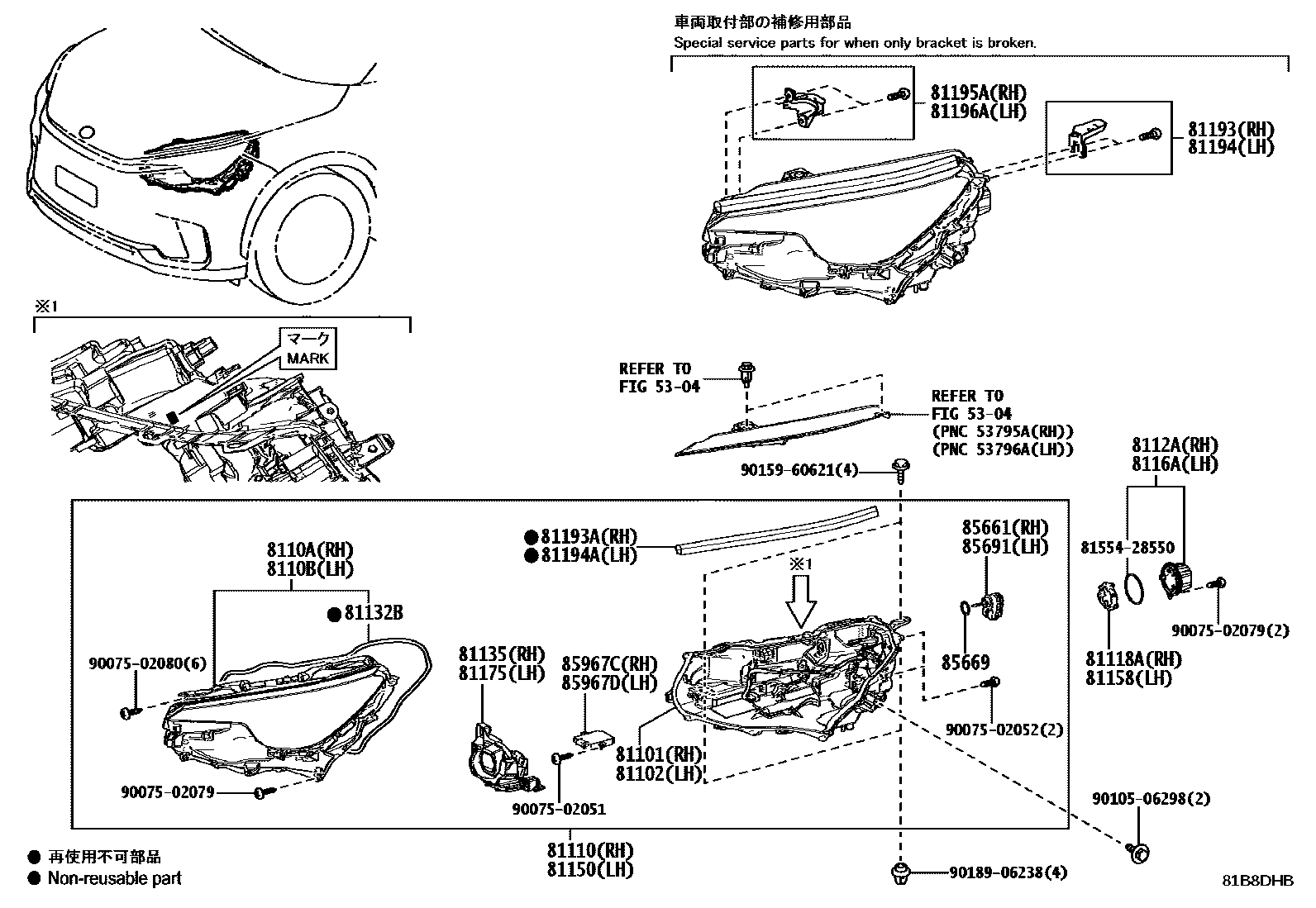

HEADLAMP

5304

81101HOUSING SUB-ASSY, HEADLAMP, RH

main8111B-52P60supersedes 8111B-52Q10i202312-202408

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main8111B-52P70supersedes 8111B-52Q30i202312-202408

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main8111B-52Q20supersedes 8111B-52Q10i202408

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main8111B-52Q40supersedes 8111B-52Q30i202408

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

81102HOUSING SUB-ASSY, HEADLAMP, LH

main8115B-52P60supersedes 8115B-52Q10i202312-202408

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main8115B-52P70supersedes 8115B-52Q30i202312-202408

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main8115B-52Q20supersedes 8115B-52Q10i202408

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main8115B-52Q40supersedes 8115B-52Q30i202408

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-52P60supersedes 8110A-52Q10i202312-202408

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main8110A-52Q20supersedes 8110A-52Q10i202408

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-52P60supersedes 8110B-52Q10i202312-202408

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main8110B-52Q20supersedes 8110B-52Q10i202408

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

81110HEADLAMP ASSY, RH

main81145-52P60supersedes 81105-52Q10i202312-202408

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),MARK:KOITO 52-351

main81145-52P70supersedes 81105-52Q30i202312-202408

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),MARK:KOITO 52-352

main81145-52Q20supersedes 81105-52Q10i202408

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),MARK:KOITO 52-361

main81145-52Q40supersedes 81105-52Q30i202408

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

81118ABRACKET, HEADLAMP, RH

main81118-52P20i202312

8112AUNIT, HEADLAMP CLEARANCE LED, NO.1 RH

main8112A-52P20i202312

81132BGASKET, HEADLAMP LENS

main81132-30E40×2i202312

81135UNIT ASSY, HEADLAMP, RH

main81130-52P60supersedes 81130-52P20i202312

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81130-52P70supersedes 81130-52P30i202312

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

81150HEADLAMP ASSY, LH

main81185-52P60supersedes 81106-52Q10i202312-202408

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),MARK:KOITO 52-351

main81185-52P70supersedes 81106-52Q30i202312-202408

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81185-52Q20supersedes 81106-52Q10i202408

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),MARK:KOITO 52-361

main81185-52Q40supersedes 81106-52Q30i202408

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

81158BRACKET, HEADLAMP, LH

main81158-52P20i202312

8116AUNIT, HEADLAMP CLEARANCE LED, NO.1 LH

main8116A-52P20i202312

81175UNIT ASSY, HEADLAMP, LH

main81170-52P60supersedes 81170-52P20i202312

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81170-52P70supersedes 81170-52P30i202312

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-52350i202312

81193APROTECTOR, HEADLAMP, RH

main81117-52P20i202312

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-52350i202312

81194APROTECTOR, HEADLAMP, LH

main81157-52P20i202312

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-52360i202312

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-52360i202312

85661MOTOR, HEADLAMP LEVELING, RH

main85661-45010supersedes 85661-52030i202312

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2i202312

85691MOTOR, HEADLAMP LEVELING, LH

main85691-45010supersedes 85661-52030i202312

VISION PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

85967CCOMPUTER, LIGHT CONTROL LED, RH

85967DCOMPUTER, LIGHT CONTROL LED, LH

8155428550GASKET, REAR COMBINATION LAMP BODY, RH

main81554-28550

9007502051

main90075-02051

9007502052

main90075-02052

9007502079

main90075-02079

9007502080

main90075-02080

9010506298

main90105-06298

9015960621

main90159-60621

9018906238

main90189-06238

33 parts on this diagram · 2 diagrams in section
