SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
BLACK,TRIM0#,2#,3#,4#,8#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
BLACK,TRIM0#,2#,3#,4#,8#
73119PLATE, SEAT BELT WEBBING CLIP
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK/BLACK,TRIM0#,2#,3#,4#
DK. ROSE,TRIM01,20,21,22,30,42
FAWN,TRIM00,01,20,21,22,30,40,41,42
SADDLE TAN,TRIM01,20,22,30,40,42
BLACK,TRIM0#,2#,3#,4#,8#
DK. ROSE,TRIM01,20,21,22,30,42
FAWN,TRIM00,01,20,21,22,30,40,41,42
SADDLE TAN,TRIM00,01,20,22,30,40,41,42,43
BLACK,TRIM0#,2#,3#,4#
DK. ROSE,TRIM01,20,21,22,30,42
FAWN,TRIM00,01,20,21,22,30,40,41,42
SADDLE TAN,TRIM01,20,22,30,40,42
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK/BLACK,TRIM0#,2#,3#,4#
DK. ROSE,TRIM01,20,21,22,30,42
FAWN,TRIM00,01,20,21,22,30,40,41,42
SADDLE TAN,TRIM01,20,22,30,40,42
BLACK,TRIM0#,2#,3#,4#,8#
DK. ROSE,TRIM01,20,21,22,30,42
FAWN,TRIM00,01,20,21,22,30,40,41,42
SADDLE TAN,TRIM00,01,20,22,30,40,41,42,43
BLACK,TRIM00,01,20,21,22,30,40,41,42
DK. ROSE,TRIM01,20,21,22,30,42
FAWN,TRIM00,01,20,21,22,30,40,41,42
SADDLE TAN,TRIM01,20,22,30,40,42
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM2#
BLACK,TRIM2#
"ACTIVE"&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#,8#
"COOL"&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM0#,2#,3#,4#,8#
73233COVER, LAP BELT OUTER ANCHOR
BLACK,TRIM0#,2#,3#,4#
sub73233-35010
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM0#,2#,3#,4#,8#
"COOL"&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM0#,2#,3#,4#,8#
"ACTIVE"&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM0#,2#,3#,4#
9010510523
main90105-10523
9010511053
main90105-11053
9010911066
main90109-11066
9017911010
main90179-11010
9050105058
main90501-05058
9155380612
main91553-80612

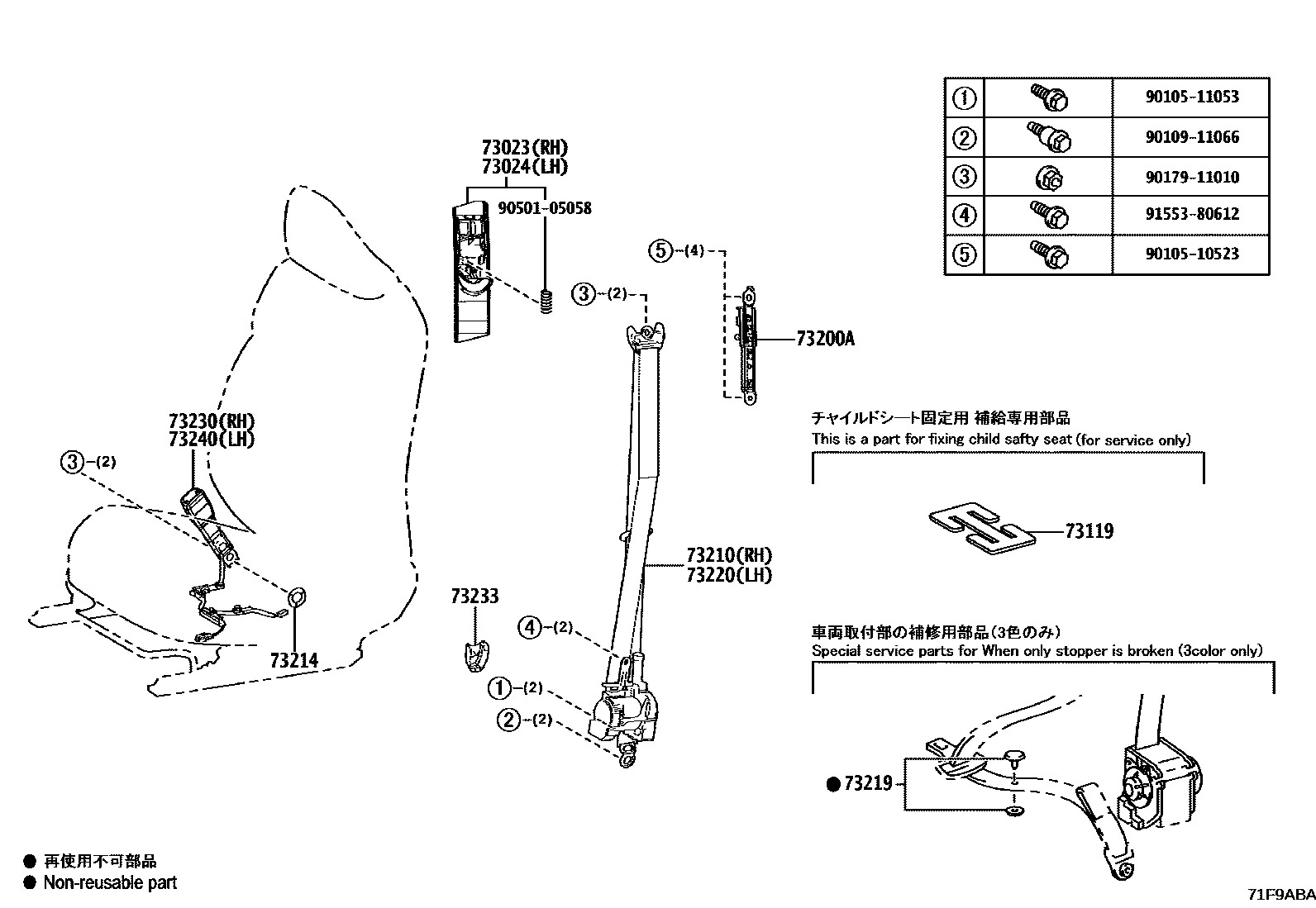

17 parts on this diagram · 2 diagrams in section
