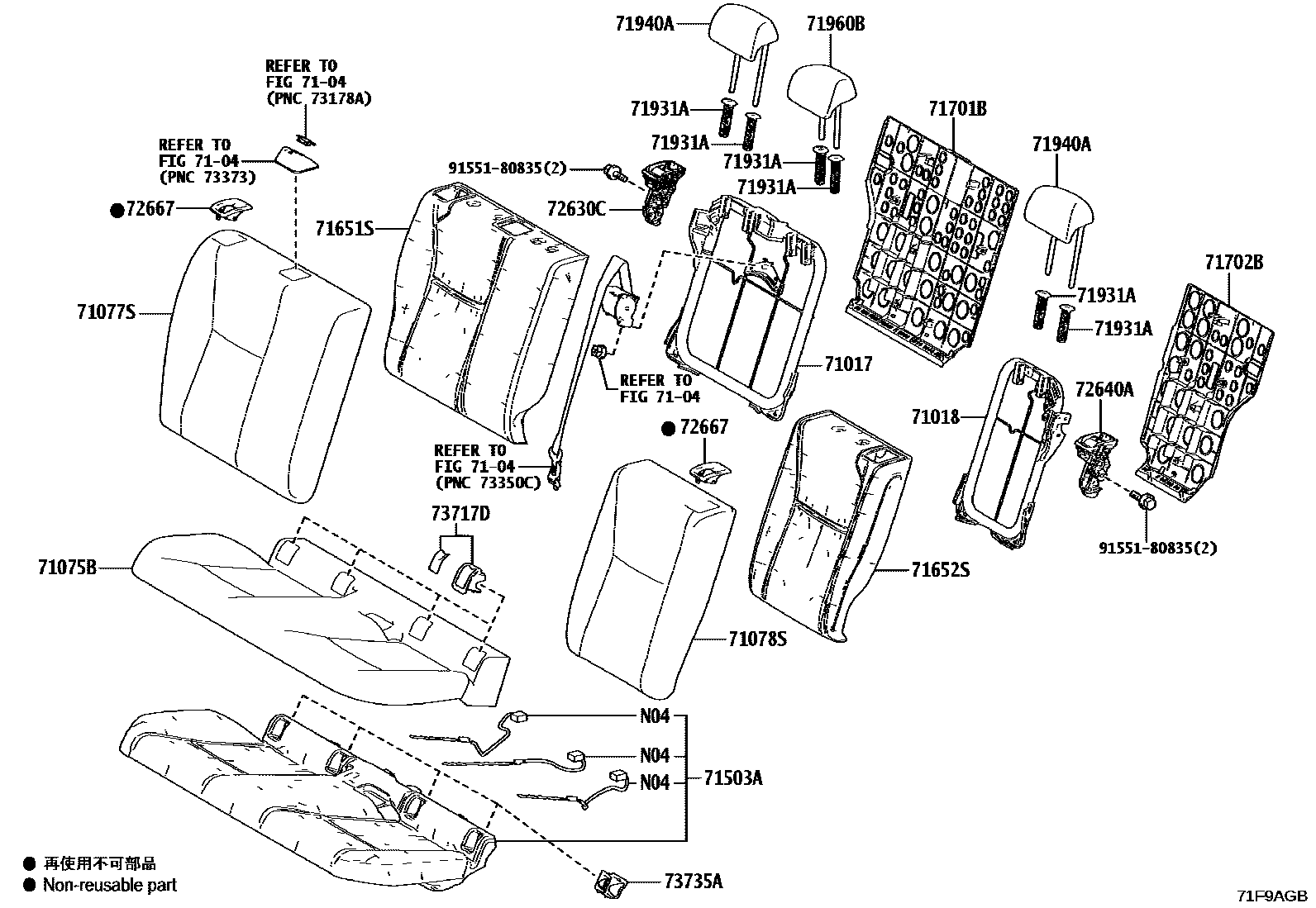

REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
71018FRAME SUB-ASSY, REAR SEATBACK, LH
7104
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
DK.GRAY,TRIM2#
DK.GRAY,TRIM2#
FROMAGE,TRIM0#
"ELEGANT"&COMFORT PACKAGE B&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),FROMAGE,TRIM0#
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONTSEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,FROMAGE,TRIM0#
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),FROMAGE,TRIM0#
MAUVE,TRIM4#
"ELEGANT"&COMFORT PACKAGE B&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),MAUVE,TRIM4#
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONTSEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,MAUVE,TRIM4#
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),MAUVE,TRIM4#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
DK.GRAY,TRIM2#
DK.GRAY,TRIM2#
FROMAGE,TRIM0#
"ELEGANT"&COMFORT PACKAGE B&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),FROMAGE,TRIM0#
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONTSEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER SEAT & PASSE
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),FROMAGE,TRIM0#
MAUVE,TRIM4#
"ELEGANT"&COMFORT PACKAGE B&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),MAUVE,TRIM4#
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONTSEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER SEAT & PASSE
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),MAUVE,TRIM4#
FROMAGE,TRIM0#
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONTSEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,FROMAGE,TRIM0#
MAUVE,TRIM4#
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONTSEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,MAUVE,TRIM4#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
DK.GRAY,TRIM2#
FROMAGE,TRIM0#
"ELEGANT"&COMFORT PACKAGE B&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),FROMAGE,TRIM0#
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONTSEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,FROMAGE,TRIM0#
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONTSEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER SEAT & PASSE
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),FROMAGE,TRIM0#
MAUVE,TRIM4#
"ELEGANT"&COMFORT PACKAGE B&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),MAUVE,TRIM4#
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONTSEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,MAUVE,TRIM4#
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONTSEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER SEAT & PASSE
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),MAUVE,TRIM4#
71503APAD SUB-ASSY, REAR SEAT CUSHION
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71701BBOARD SUB-ASSY, REAR SEATBACK, RH
71702BBOARD SUB-ASSY, REAR SEATBACK, LH
71931ASUPPORT, REAR SEAT HEADREST
W(LOCK),BLACK,TRIM0#,2#,3#,4#,8#
W/O(LOCK),BLACK,TRIM0#,2#,3#,4#,8#
71940AHEADREST ASSY, REAR SEAT
DK.GRAY,TRIM2#
FROMAGE/SHELL,TRIM0#
"ELEGANT"&COMFORT PACKAGE B&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),FROMAGE/SHELL,TRIM0#
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONTSEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,FROMAGE/SHELL,TRIM0#
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONTSEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER SEAT & PASSE
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),FROMAGE/SHELL,TRIM0#
MAUVE/MEDIUM BROWN,TRIM4#
"ELEGANT"&COMFORT PACKAGE B&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),MAUVE/MEDIUM BROWN,TRIM
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONTSEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,MAUVE/MEDIUM BROWN,TRIM4#
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONTSEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER SEAT & PASSE
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),MAUVE/MEDIUM BROWN,TRIM4#
71960BHEADREST ASSY, REAR SEAT, CENTER
DK.GRAY,TRIM2#
FROMAGE/SHELL,TRIM0#
"ELEGANT"&COMFORT PACKAGE B&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),FROMAGE/SHELL,TRIM0#
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONTSEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,FROMAGE/SHELL,TRIM0#
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONTSEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER SEAT & PASSE
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),FROMAGE/SHELL,TRIM0#
MAUVE/MEDIUM BROWN,TRIM4#
"ELEGANT"&COMFORT PACKAGE B&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),MAUVE/MEDIUM BROWN,TRIM
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONTSEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,MAUVE/MEDIUM BROWN,TRIM4#
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONTSEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER SEAT & PASSE
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),MAUVE/MEDIUM BROWN,TRIM4#
72630CLOCK ASSY, REAR SEATBACK, RH
72640ALOCK ASSY, REAR SEATBACK, LH
72667BEZEL, REAR SEATBACK LOCK, UPPER
BLACK,TRIM0#,2#,3#,4#,8#
73717DCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM2#,3#
"ELEGANT"&COMFORT PACKAGE B&PARTIAL CUSTOMIZE&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK
"ELEGANT"&COMFORT PACKAGE B&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM0#,4#
"ELEGANT"&PARTIAL CUSTOMIZE&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM0#,4#
"ELEGANT"&PARTIAL CUSTOMIZE&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(D
"ELEGANT"&PARTIAL CUSTOMIZE&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM0#,4#
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONTSEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM0#,4#
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONTSEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER SEAT & PASSE
"ELEGANT"&ORNAMENT PANEL-ELEGANT TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM0#,4#
"ACTIVE"&COMFORT PACKAGE B&PARTIAL CUSTOMIZE&ORNAMENT PANEL-ACTIVE TYPE&SEAT COVERMATERIAL-SYNTHETIC LEATHER(PERFORATION)&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER
"ACTIVE"&COMFORT PACKAGE B&ORNAMENT PANEL-ACTIVE TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION)&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
"ACTIVE"&PARTIAL CUSTOMIZE&ORNAMENT PANEL-ACTIVE TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),BLACK,TRIM2#
"ACTIVE"&PARTIAL CUSTOMIZE&ORNAMENT PANEL-ACTIVE TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION)&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,T
"ACTIVE"&PARTIAL CUSTOMIZE&ORNAMENT PANEL-ACTIVE TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION)&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HE
"ACTIVE"&PARTIAL CUSTOMIZE&ORNAMENT PANEL-ACTIVE TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION)&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
"ACTIVE"&ORNAMENT PANEL-ACTIVE TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),BLACK,TRIM2#
"ACTIVE"&ORNAMENT PANEL-ACTIVE TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION)&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM2#
"ACTIVE"&ORNAMENT PANEL-ACTIVE TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION)&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER S
"ACTIVE"&ORNAMENT PANEL-ACTIVE TYPE&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION)&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
"RELAX"&COMFORT PACKAGE B&ORNAMENT PANEL-RELAX TYPE&SEAT COVER MATERIAL-SEMI-ANILINE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER SEA
"RELAX"&ORNAMENT PANEL-RELAX TYPE&SEAT COVER MATERIAL-SEMI-ANILINE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM2#,4#
"RELAX"&ORNAMENT PANEL-RELAX TYPE&SEAT COVER MATERIAL-SEMI-ANILINE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT
"COOL"&COMFORT PACKAGE B&ORNAMENT PANEL-COOL TYPE&SEAT COVER MATERIAL-ULTRASUEDE-COMBI.&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER
"COOL"&ORNAMENT PANEL-COOL TYPE&SEAT COVER MATERIAL-ULTRASUEDE-COMBI.&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM2#
"COOL"&ORNAMENT PANEL-COOL TYPE&SEAT COVER MATERIAL-ULTRASUEDE-COMBI.&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER SEAT & PASSENGER S
PARTIAL CUSTOMIZE,BLACK,TRIM0#,4#
73735ACUP, CHILD RESTRAINT SEAT GUIDE
9155180835
20 parts on this diagram · 2 diagrams in section
