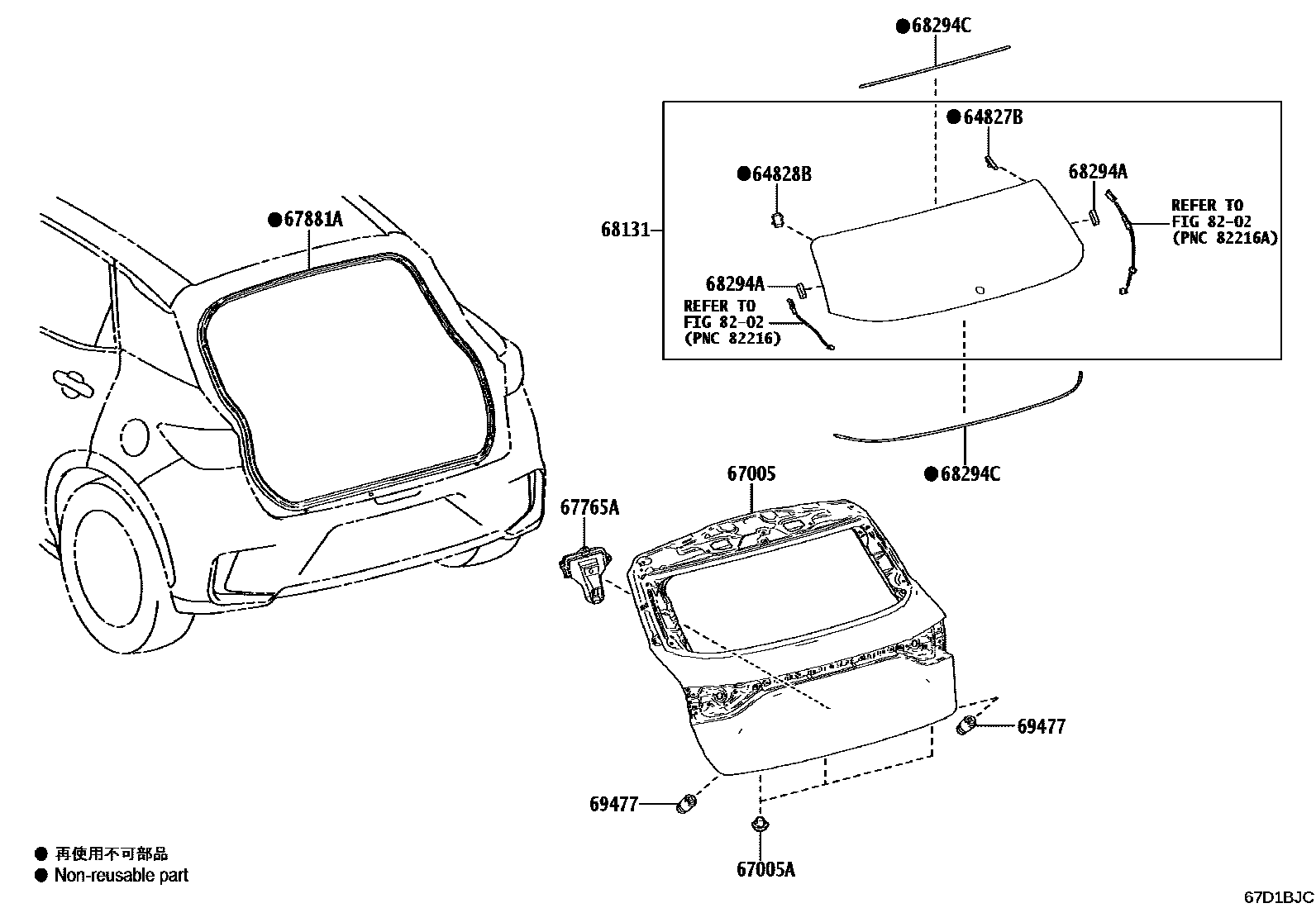

BACK DOOR PANEL & GLASS

64827BCLIP, BACK WINDOW GLASS, RH

64828BCLIP, BACK WINDOW GLASS, LH

67005PANEL SUB-ASSY, BACK DOOR

main67005-52K00supersedes 67005-52J90i202312

AUTO & EASY CLOSER DOOR-WITH(POWWER BACK DOOR)

67005APLUG, HOLE(FOR BACK DOOR PANEL)

main90950-01A34×3i202312

67765ACOVER, BACK DOOR SERVICE HOLE, NO.1

main67765-52030i202312-202506

"RELAX"&HEAD UP DISPLAY-WITH&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

67881AWEATHERSTRIP, BACK DOOR

68131GLASS, BACK DOOR

main68105-52A70supersedes 68105-52B10i202312

REAR SIDE GLASS-PRIVACY T=3.5

main68105-52A80i202312-202506

IRELAND SPEC&REAR SIDE GLASS-PRIVACY T=3.5

main68105-52A90supersedes 68105-52B20i202312-202506

BOS.HERZE,MACHE,SPEC&REAR SIDE GLASS-PRIVACY T=3.5

main68105-52B80supersedes 68105-52B90i202312

UKRAINE SPEC&REAR SIDE GLASS-PRIVACY T=3.5

68294ADAM, BACK DOOR GLASS ADHESIVE

main68294-26030×2i202312

68294CDAM, BACK DOOR GLASS ADHESIVE, NO.1

main56117-50140×2i202312

69477CUSHION, BACK DOOR UPPER STOPPER

main69477-52030×2i202312

8202

11 parts on this diagram · 2 diagrams in section
