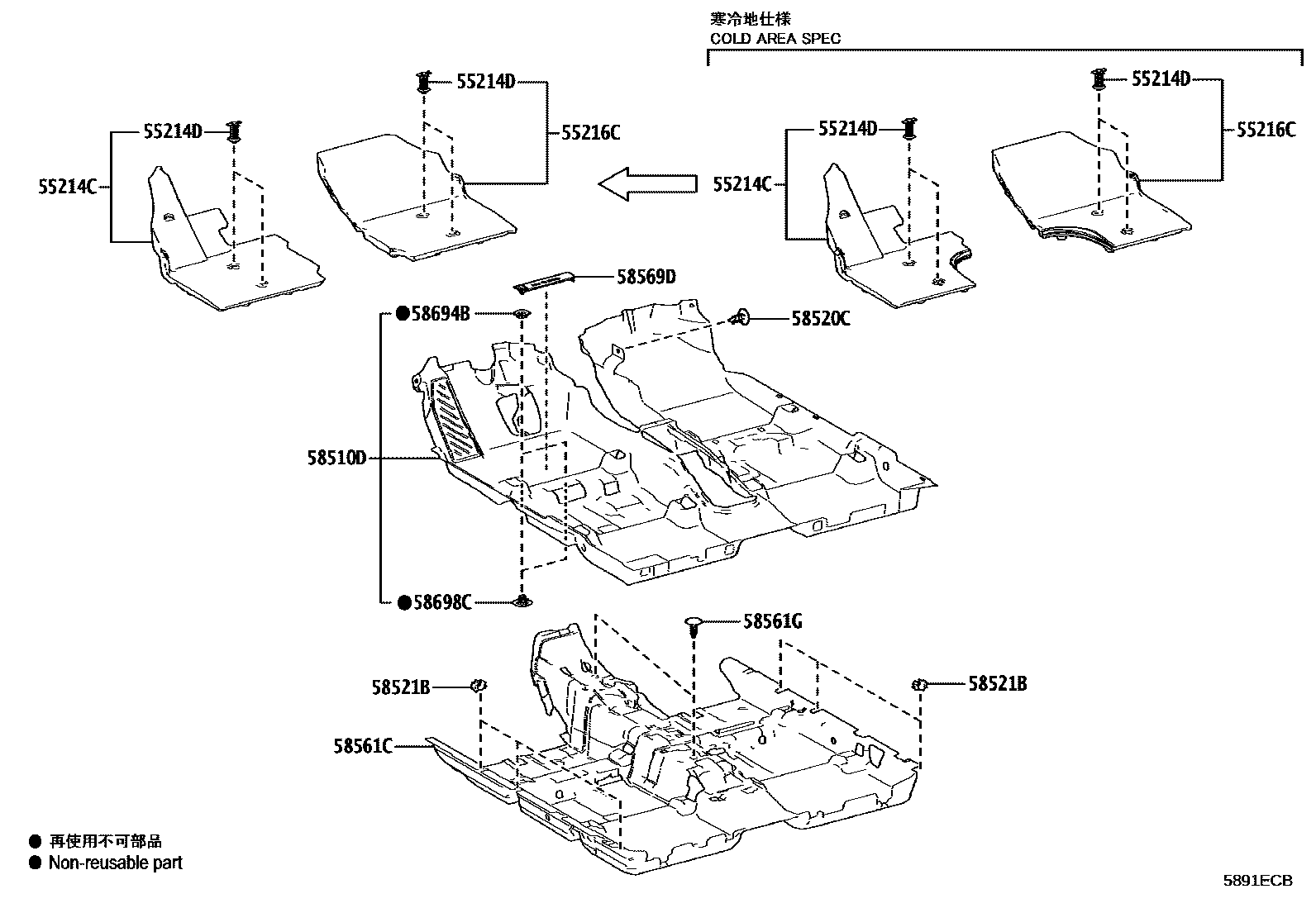

MAT & CARPET
55214CPAD, DASH PANEL INSULATOR, NO.2
COLD AREA SPEC
COLD AREA SPEC
55214DCLIP(FOR DASH PANEL INSULATOR PAD)
55216CPAD, DASH PANEL INSULATOR, NO.4
COLD AREA SPEC
COLD AREA SPEC
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,8#
INDONESIA SPEC,BLACK,TRIM0#,2#,3#,4#
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58561CSILENCER, FRONT FLOOR, NO.1
58561GCLIP(FOR FRONT FLOOR SILENCER)
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM0#,2#,3#,4#,8#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
11 parts on this diagram · 2 diagrams in section
