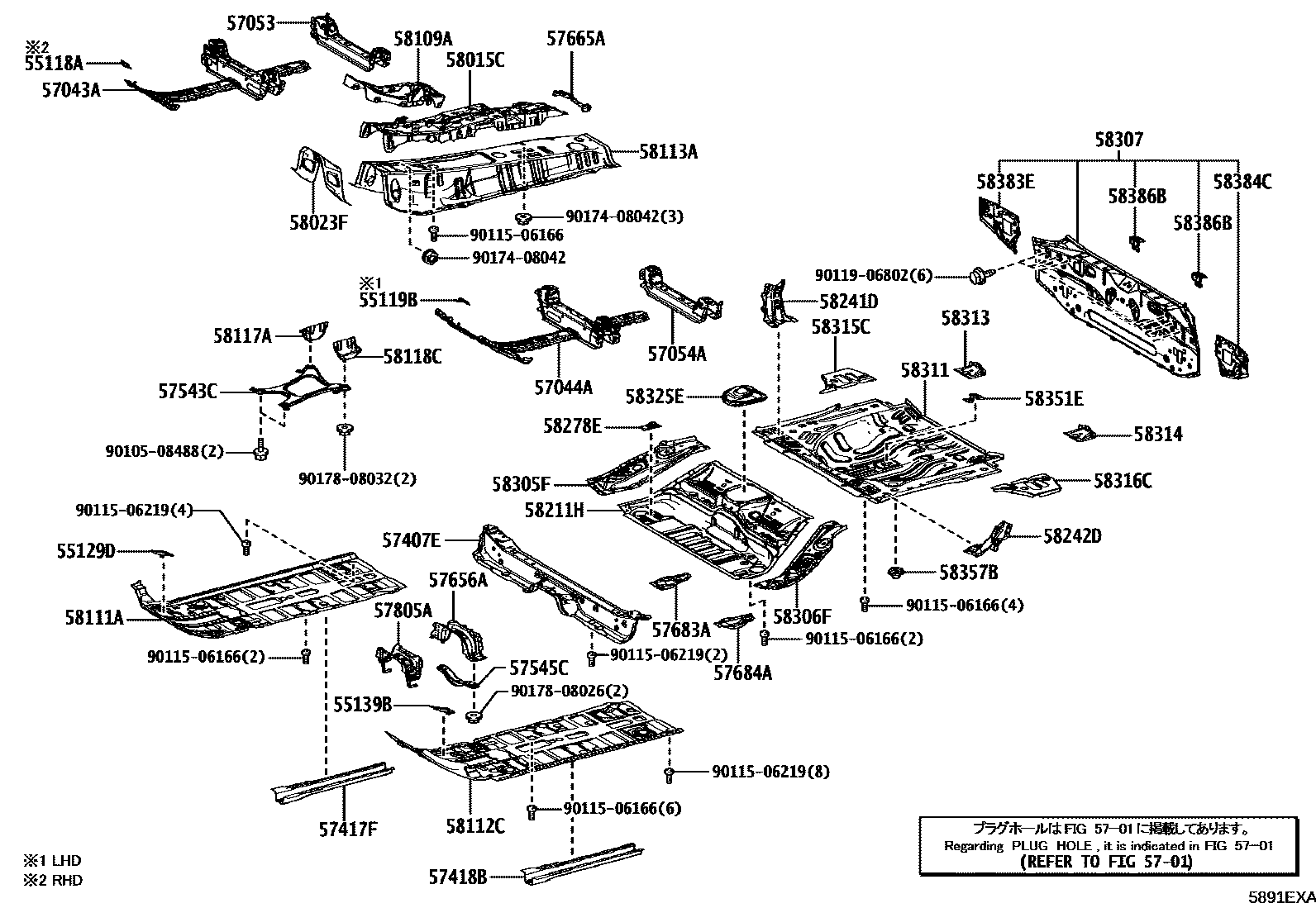

FLOOR PAN & LOWER BACK PANEL
55118AEXTENSION, DASH PANEL, RH
55119BEXTENSION, DASH PANEL, LH
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57543CBRACE, CENTER FLOOR, NO.1
57545CBRACE, CENTER FLOOR, NO.2
57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1
57665AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2
57683ABRACKET, FUEL TANK MOUNTING, NO.1
57684ABRACKET, FUEL TANK MOUNTING, NO.2
57805AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1
58015CPANEL SUB-ASSY, FRONT FLOOR HOUSING
58023FBRACKET SUB-ASSY, FLEXIBLE HOSE
58109ARETAINER SUB-ASSY, PARKING BRAKE
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
58211HPAN, CENTER FLOOR
58241DGUSSET, WHEELHOUSE INNER, FRONT RH
58242DGUSSET, WHEELHOUSE INNER, FRONT LH
58278EREINFORCEMENT, SIDE FLOOR, NO.2
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58315CEXTENSION, REAR FLOOR SIDE PANEL, RH
58316CEXTENSION, REAR FLOOR SIDE PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58351EBRACKET, SPARE WHEEL CLAMP
58357BBRACKET, ACTUATOR COVER, NO.3 RH
58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH
58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH
58386BBRACKET, REAR BUMPER COVER, NO.2
9010508488
9011506166
9011506219
9011906802
9017408042
9017808026
9017808032
52 parts on this diagram · 2 diagrams in section
