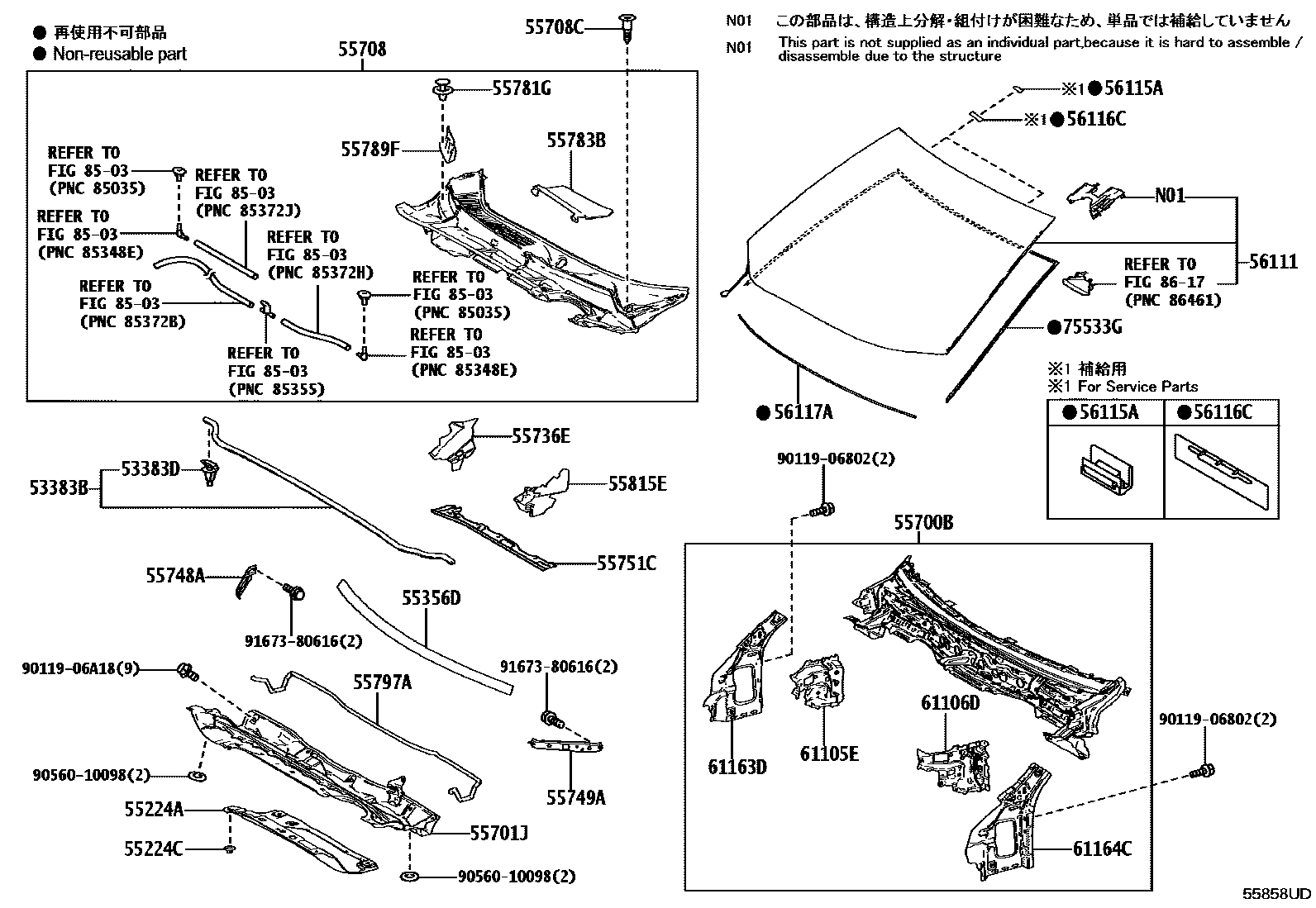

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55224AINSULATOR, DASH PANEL, OUTER NO.2
55224CCLIP, DASH PANEL INSULATOR
55356DCUSHION, INSTRUMENT PANEL, NO.2
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708CCLIP, COWL TOP VENTILATOR LOUVER
55736EPLATE, WATER GUIDE, RH
55748ABRACE, COWL TOP INNER TO PILLAR
55749ABRACE, COWL TOP INNER TO PILLAR, LH
55751CSHIELD, COWL VENTILATOR SPLASH
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55789FPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.1
55797ASEAL, COWL WATER EXTRACT
55815ESEAL, FRONT VENTILATOR, NO.1
56111GLASS, WINDSHIELD
"ELEGANT"
"ELEGANT"&COMFORT PACKAGE B
"ACTIVE"
"ACTIVE"&COMFORT PACKAGE B
"RELAX"
"RELAX"&COMFORT PACKAGE B
"COOL"
"COOL"&COMFORT PACKAGE B
COMFORT PACKAGE A
COMFORT PACKAGE B
"ELEGANT"
"ELEGANT"&COMFORT PACKAGE B
"ACTIVE"
"ACTIVE"&COMFORT PACKAGE B
"RELAX"
"RELAX"&COMFORT PACKAGE B
"COOL"
"COOL"&COMFORT PACKAGE B
COMFORT PACKAGE A
COMFORT PACKAGE B
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=2000(*D,L=1276)
L=2000(*D,L=1276),"ELEGANT"
L=2000(*D,L=1276),"ELEGANT"&COMFORT PACKAGE B
L=2000(*D,L=1276),"ELEGANT"&COMFORT PACKAGE B&COLD AREA SPEC
L=2000(*D,L=1276),"ELEGANT"&COMFORT PACKAGE B&COLD AREA SPEC&HEAD UP DISPLAY-WITH
L=2000(*D,L=1276),"ELEGANT"&COMFORT PACKAGE B&HEAD UP DISPLAY-WITH
L=2000(*D,L=1276),"ELEGANT"&COLD AREA SPEC
L=2000(*D,L=1276),"ELEGANT"&COLD AREA SPEC&HEAD UP DISPLAY-WITH
L=2000(*D,L=1276),"ELEGANT"&HEAD UP DISPLAY-WITH
L=2000(*D,L=1276),"ACTIVE"
L=2000(*D,L=1276),"ACTIVE"&COMFORT PACKAGE B
L=2000(*D,L=1276),"ACTIVE"&COMFORT PACKAGE B&COLD AREA SPEC
L=2000(*D,L=1276),"ACTIVE"&COMFORT PACKAGE B&COLD AREA SPEC&HEAD UP DISPLAY-WITH
L=2000(*D,L=1276),"ACTIVE"&COMFORT PACKAGE B&HEAD UP DISPLAY-WITH
L=2000(*D,L=1276),"ACTIVE"&COLD AREA SPEC
L=2000(*D,L=1276),"ACTIVE"&COLD AREA SPEC&HEAD UP DISPLAY-WITH
L=2000(*D,L=1276),"ACTIVE"&HEAD UP DISPLAY-WITH
L=2000(*D,L=1276),"RELAX"
L=2000(*D,L=1276),"RELAX"&COMFORT PACKAGE B
L=2000(*D,L=1276),"RELAX"&COMFORT PACKAGE B&COLD AREA SPEC
L=2000(*D,L=1276),"RELAX"&COMFORT PACKAGE B&COLD AREA SPEC&HEAD UP DISPLAY-WITH
L=2000(*D,L=1276),"RELAX"&COMFORT PACKAGE B&HEAD UP DISPLAY-WITH
L=2000(*D,L=1276),"RELAX"&COLD AREA SPEC
L=2000(*D,L=1276),"RELAX"&COLD AREA SPEC&HEAD UP DISPLAY-WITH
L=2000(*D,L=1276),"RELAX"&HEAD UP DISPLAY-WITH
L=2000(*D,L=1276),"COOL"
L=2000(*D,L=1276),"COOL"&COMFORT PACKAGE B
L=2000(*D,L=1276),"COOL"&COMFORT PACKAGE B&COLD AREA SPEC
L=2000(*D,L=1276),"COOL"&COMFORT PACKAGE B&COLD AREA SPEC&HEAD UP DISPLAY-WITH
L=2000(*D,L=1276),"COOL"&COMFORT PACKAGE B&HEAD UP DISPLAY-WITH
L=2000(*D,L=1276),"COOL"&COLD AREA SPEC
L=2000(*D,L=1276),"COOL"&COLD AREA SPEC&HEAD UP DISPLAY-WITH
L=2000(*D,L=1276),"COOL"&HEAD UP DISPLAY-WITH
L=2000(*D,L=1276),COMFORT PACKAGE A
L=2000(*D,L=1276),COMFORT PACKAGE A&COLD AREA SPEC
L=2000(*D,L=1276),COMFORT PACKAGE B
L=2000(*D,L=1276),COMFORT PACKAGE B&COLD AREA SPEC
L=2000(*D,L=1276),COLD AREA SPEC
L=2000(*D,L=1276),COLD AREA SPEC&HEAD UP DISPLAY-WITH
L=2000(*D,L=1276),HEAD UP DISPLAY-WITH
61105EPANEL SUB-ASSY, SIDE, NO.3 RH
61106DPANEL SUB-ASSY, SIDE, NO.3 LH
61163DPILLAR, FRONT BODY, LOWER INNER RH
61164CPILLAR, FRONT BODY, LOWER INNER LH
75533GMOULDING, WINDSHIELD, OUTSIDE
8503
8617
9011906802
main90119-06802
9011906A18
main90119-06A18
9056010098
main90560-10098
9167380616
main91673-80616
33 parts on this diagram · 2 diagrams in section
