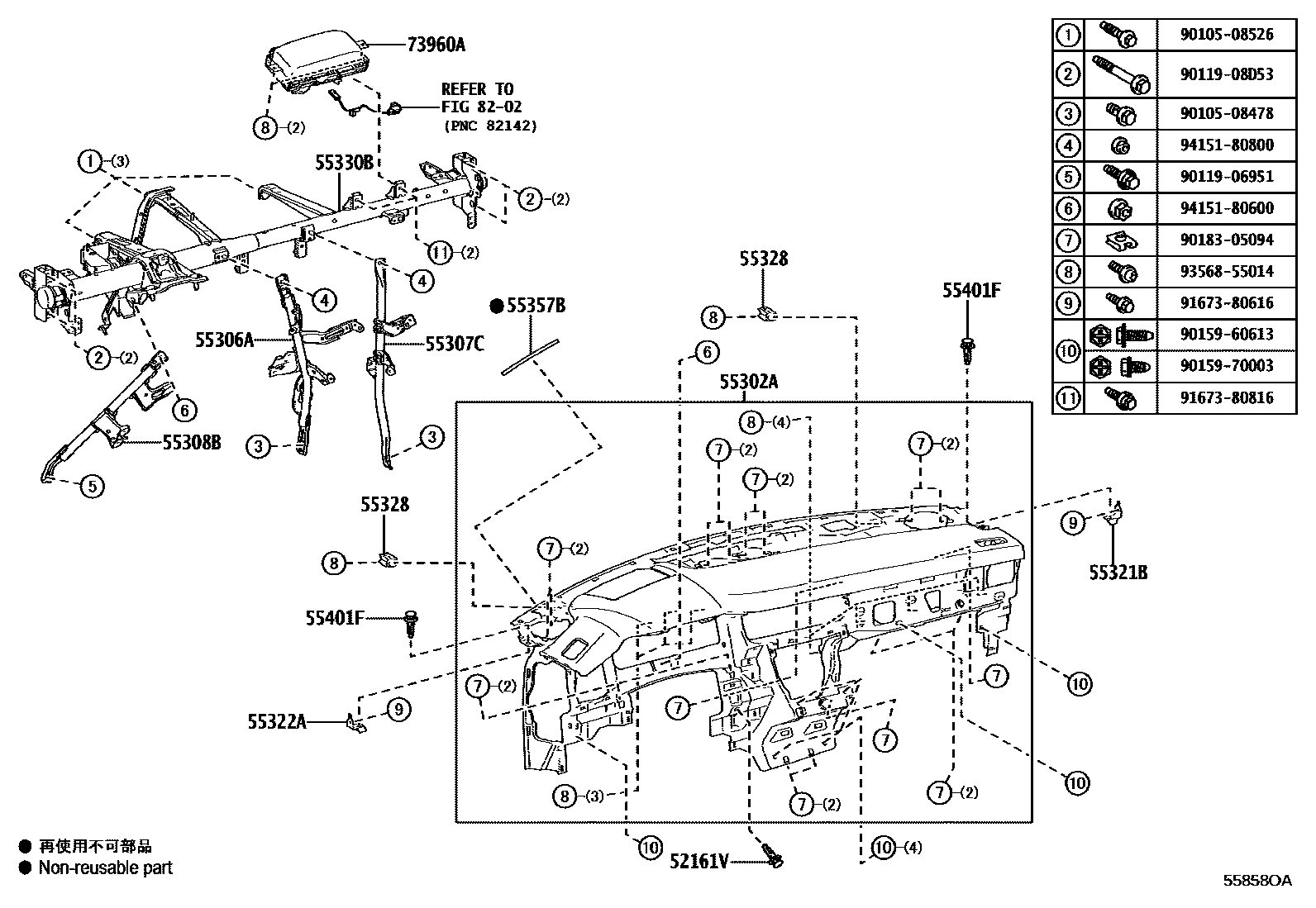

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1CENTER & PASSENGER SIDE 0005 1PASSENGER SIDE 0006 1 0007 1 0008 1DRIVER SIDE 0009 1CENTER & PASSENGER SIDE 0010 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-16010iMAYH1#202312

sub52161-0K040

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-52270-C0iMAYH1#..RHD202312

SOFT BLACK,TRIM0#,2#,3#,4#,8#

main55302-52280-C0iMAYH1#..LHD202312

SOFT BLACK,TRIM0#,2#,3#,4#,8#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52470iMAYH1#..RHD202312

main55306-52480iMAYH1#..LHD202312

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-52120iMAYH1#..RHD202312

main55307-52130iMAYH1#..LHD202312

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-52130iMAYH1#..RHD202312

main55308-52140iMAYH1#..LHD202312

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55363-52010iMAYH1#202312

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55363-52020iMAYH1#202312

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430×2iMAYH1#202312

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-52A30iMAYH1#..RHD202312

main55330-52A40iMAYH1#..LHD202312

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-52230iMAYH1#202312

55401FCLIP(FOR SAFETY PAD)

main52161-16010×2iMAYH1#202312

sub52161-0K040

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-52230iMAYH1#202312

8202

9010508478

main90105-08478

9010508526

main90105-08526

9011906951

main90119-06951

9011908D53

main90119-08D53

9015960613

main90159-60613

9015970003

main90159-70003

9018305094

main90183-05094

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

25 parts on this diagram · 10 diagrams in section
