FLOOR SIDE MEMBER
51093AHOOK SUB-ASSY, TRANSPORT, FRONT RH
51094HOOK SUB-ASSY, TRANSPORT, FRONT LH
51095BHOOK SUB-ASSY, TRANSPORT, REAR RH
51096BHOOK SUB-ASSY, TRANSPORT, REAR LH
53653ABRACE, REAR SUSPENSION, LOWER RH
53653FCLIP, REAR SUSPENSION LOWER BRACE
BLACK
53654ABRACE, REAR SUSPENSION, LOWER LH
5701
57023AMEMBER SUB-ASSY, REAR SIDE, RH
57024AMEMBER SUB-ASSY, REAR SIDE, LH
57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57028CMEMBER SUB-ASSY, FRONT SIDE, INNER LH
57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH
57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH
57142ASUPPORT, FRONT BUMPER ARM, LH
57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57616AMEMBER, REAR FLOOR SIDE, REAR LH
9010508500
main90105-08500
9011908D22
main90119-08D22

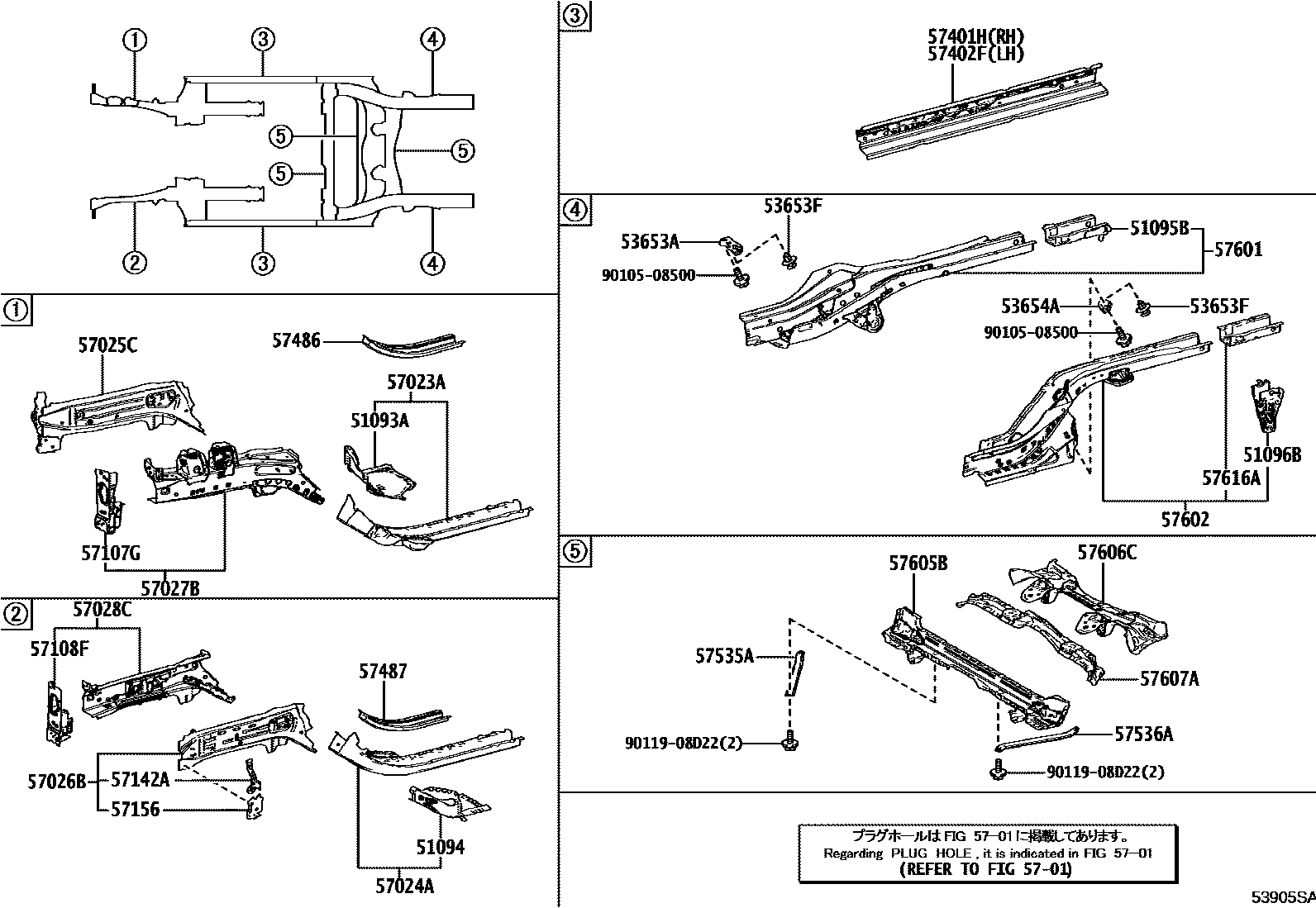

32 parts on this diagram · 2 diagrams in section
