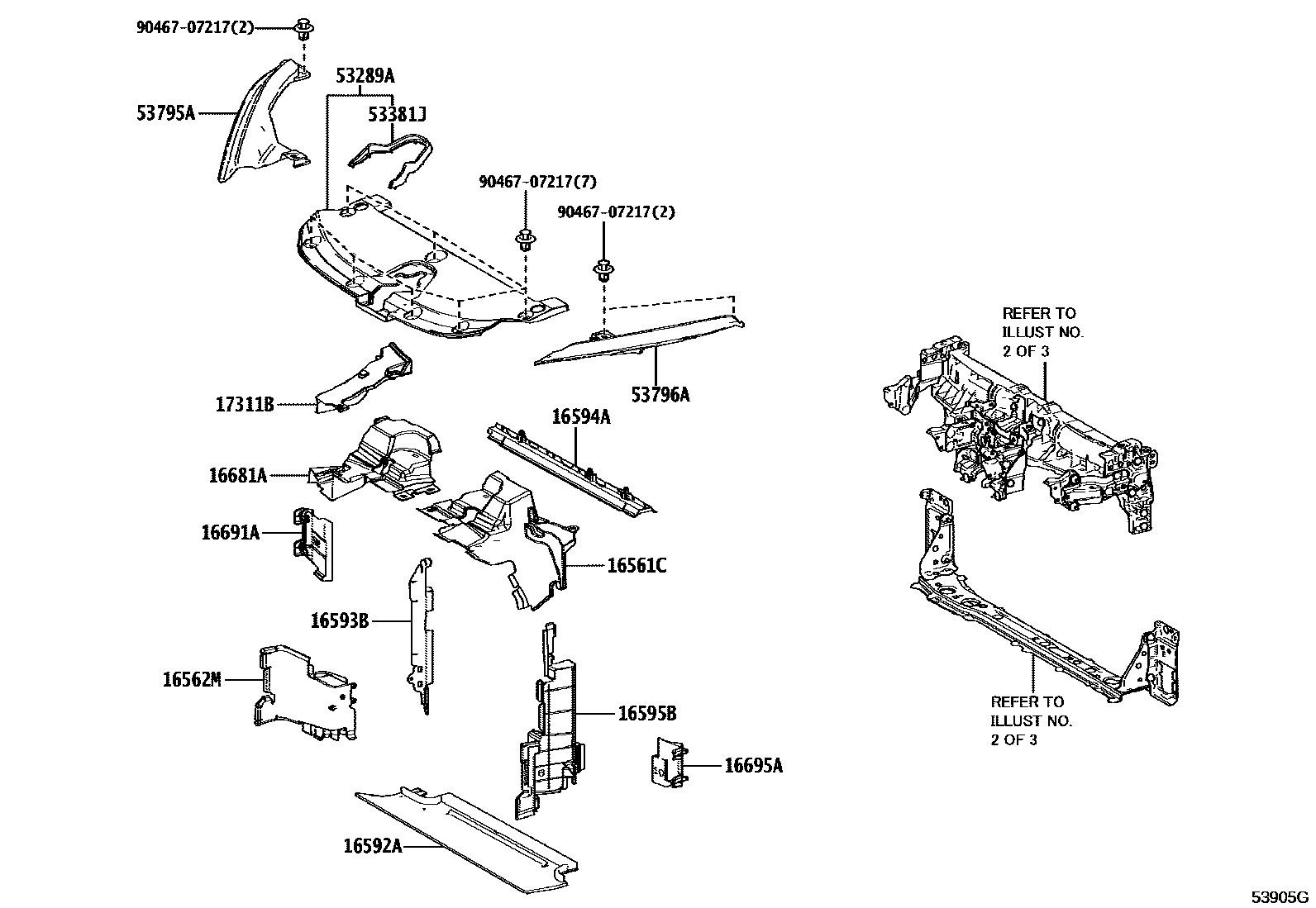

FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1RADIATOR SUPPORT & FENDER APR0003 1RADIATOR SUPPORT & FENDER APR0004 1DASH PANEL 0005 1DASH PANEL

16561CSEAL, RADIATOR TO SUPPORT, NO.1

main16561-15020iM15AFXE..MAYH1#202312

16562MSEAL, RADIATOR TO SUPPORT, NO.2

main16562-15090iM15AFXE..MAYH1#202312

16592AGUIDE, RADIATOR AIR, NO.3

main16592-15020iM15AFXE..MAYH1#202312

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-15010iM15AFXE..MAYH1#202312

16594AGUIDE, RADIATOR AIR, NO.2

main16594-15020iM15AFXE..MAYH1#202312

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-15050iM15AFXE..MAYH1#202312

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-15050iM15AFXE..MAYH1#202312

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-15010iM15AFXE..MAYH1#202312

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-15010iM15AFXE..MAYH1#202312

17311BDUCT, AIR INLET, NO.1

main17311-15050iM15AFXE..MAYH1#202312

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-52120iMAYH1#202312

53381JSEAL, HOOD TO RADIATOR SUPPORT

main53381-52070iMAYH1#202312

53795ACOVER, ENGINE ROOM, SIDE

main53795-52050iMAYH1#202312

53796ACOVER, ENGINE ROOM SIDE, LH

main53796-52020iMAYH1#202312

9046707217

main90467-07217

15 parts on this diagram · 5 diagrams in section
