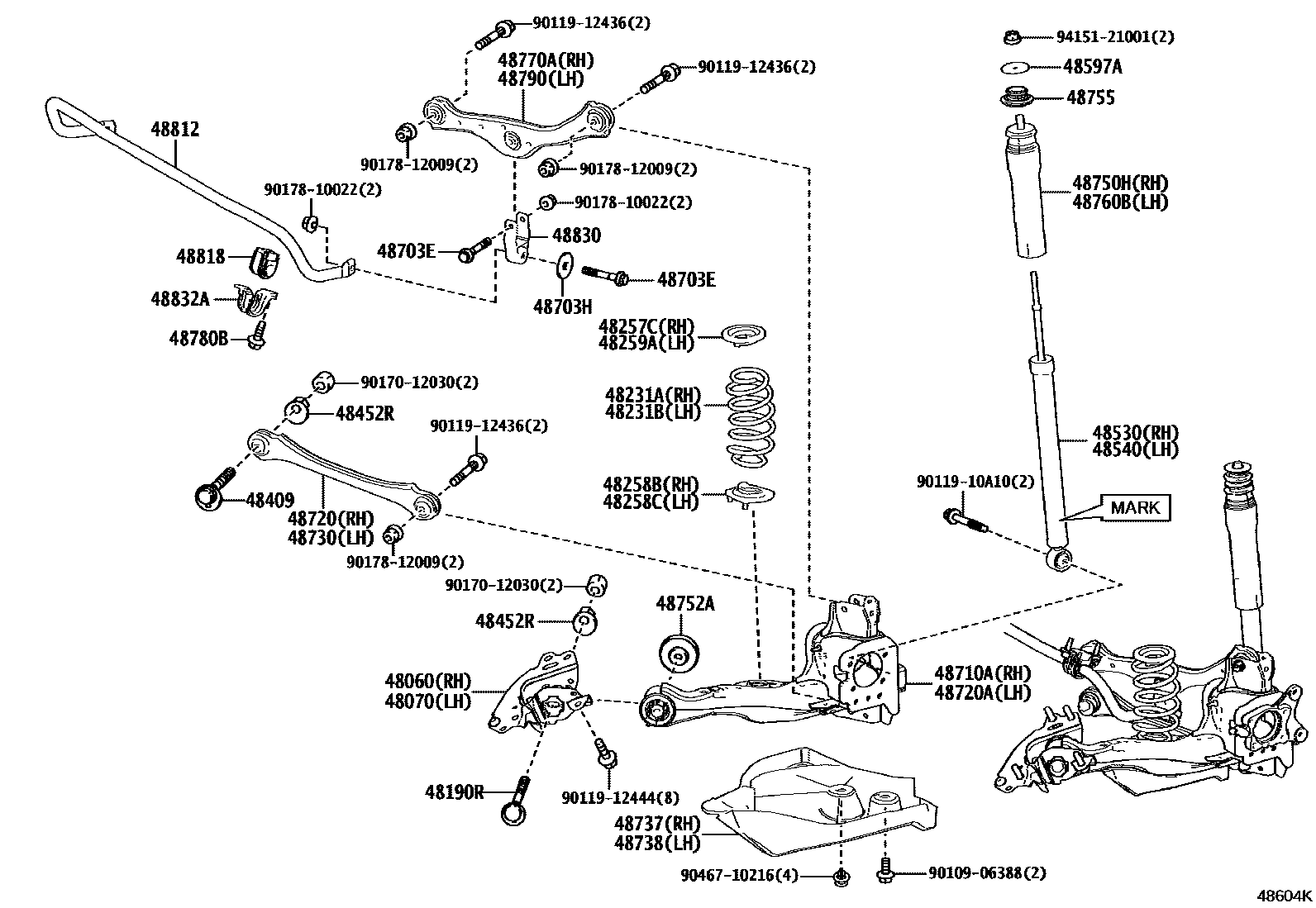

REAR SPRING & SHOCK ABSORBER
48060BRACKET ASSY, REAR SUSPENSION ARM, RH
48070BRACKET ASSY, REAR SUSPENSION ARM, LH
48190RCAM ASSY, CAMBER ADJUST
48231ASPRING, COIL, REAR RH
"RELAX"&AUTO & EASY CLOSER DOOR-WITH(POWWER BACK DOOR)&HEAD UP DISPLAY-WITH&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
"RELAX"&AUTO & EASY CLOSER DOOR-WITH(POWWER BACK DOOR)&HEAD UP DISPLAY-WITH&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
48231BSPRING, COIL, REAR LH
"RELAX"&AUTO & EASY CLOSER DOOR-WITH(POWWER BACK DOOR)&HEAD UP DISPLAY-WITH&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
"RELAX"&AUTO & EASY CLOSER DOOR-WITH(POWWER BACK DOOR)&HEAD UP DISPLAY-WITH&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-52T10
MARK 48530-52T30
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-52T10
MARK 48530-52T30
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
48703EBOLT(FOR REAR SUSPENSION ARM)
*10-1.25PX65-26
48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720ARM ASSY, LOWER CONTROL, RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730ARM ASSY, LOWER CONTROL, LH
48737COVER, REAR SUSPENSION ARM, RH
48738COVER, REAR SUSPENSION ARM, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48752ASTOPPER, REAR SUSPENSION SUPPORT
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
48770AARM ASSY, UPPER CONTROL, REAR RH
48780BBOLT(FOR STRUT ROD)
48790ARM ASSY, UPPER CONTROL, REAR LH
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48830LINK ASSY, REAR STABILIZER
48832ABRACKET, REAR STABILIZER BAR, NO.1
9010906388
main90109-06388
9011910A10
main90119-10A10
9011912436
main90119-12436
9011912444
main90119-12444
9017012030
main90170-12030
9017810022
main90178-10022
9017812009
main90178-12009
9046710216
main90467-10216
9415121001
main94151-21001
42 parts on this diagram · 2 diagrams in section
