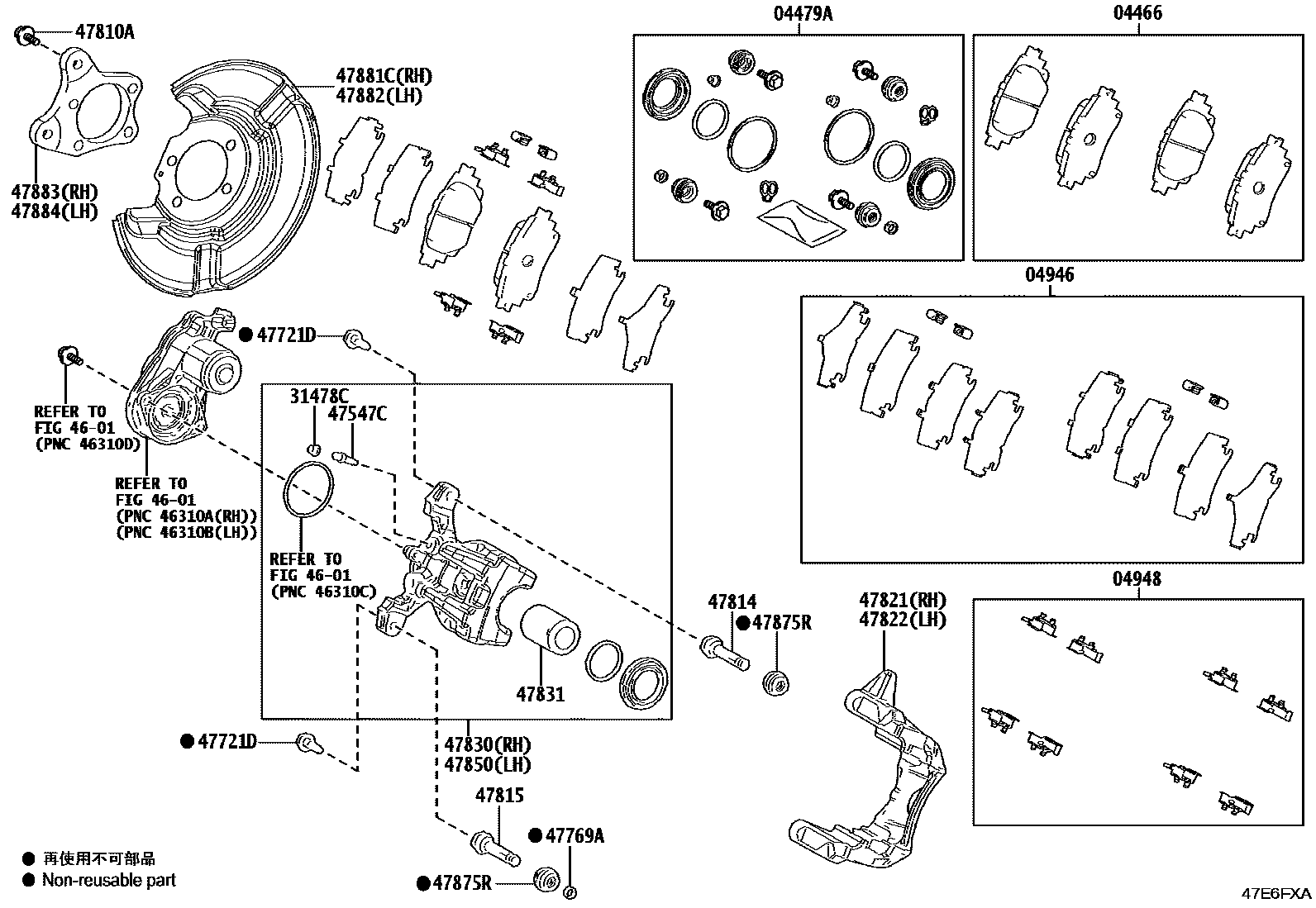

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-10011iMAYH15202312

MARK AK NS554

main04466-52210iMAYH10202312

MARK NBK D6361

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-10091iMAYH1#202312

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-48130iMAYH15202312

main04946-52130iMAYH10202312

04948FITTING KIT, DISC BRAKE, REAR

main04948-52060iMAYH10202312

main04948-58010iMAYH15202312

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iMAYH1#202312

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iMAYH1#202312

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iMAYH1#202312

*8-1.00PX23-12.5

sub90016-AA614

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iMAYH1#202312

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iMAYH1#202312

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iMAYH1#202312

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iMAYH1#202312

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-10030iMAYH15202312

main47821-52240iMAYH10202312

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-10030iMAYH15202312

main47822-52240iMAYH10202312

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-52260iMAYH15202312

main47850-12280iMAYH10202312

47831PISTON, REAR DISC BRAKE

main47831-10030iMAYH1#202312

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47830-12280iMAYH10202312

main47850-52260iMAYH15202312

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270iMAYH1#202312

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-52070iMAYH10202312

main47881-52080iMAYH15202312

47882COVER, DISC BRAKE DUST, REAR LH

main47882-52070iMAYH10202312

main47882-52080iMAYH15202312

47883BRACKET, CALIPER SUPPORT, REAR RH

main47883-52030iMAYH10202312

47884BRACKET, CALIPER SUPPORT, REAR LH

main47884-52030iMAYH10202312

22 parts on this diagram · 2 diagrams in section
