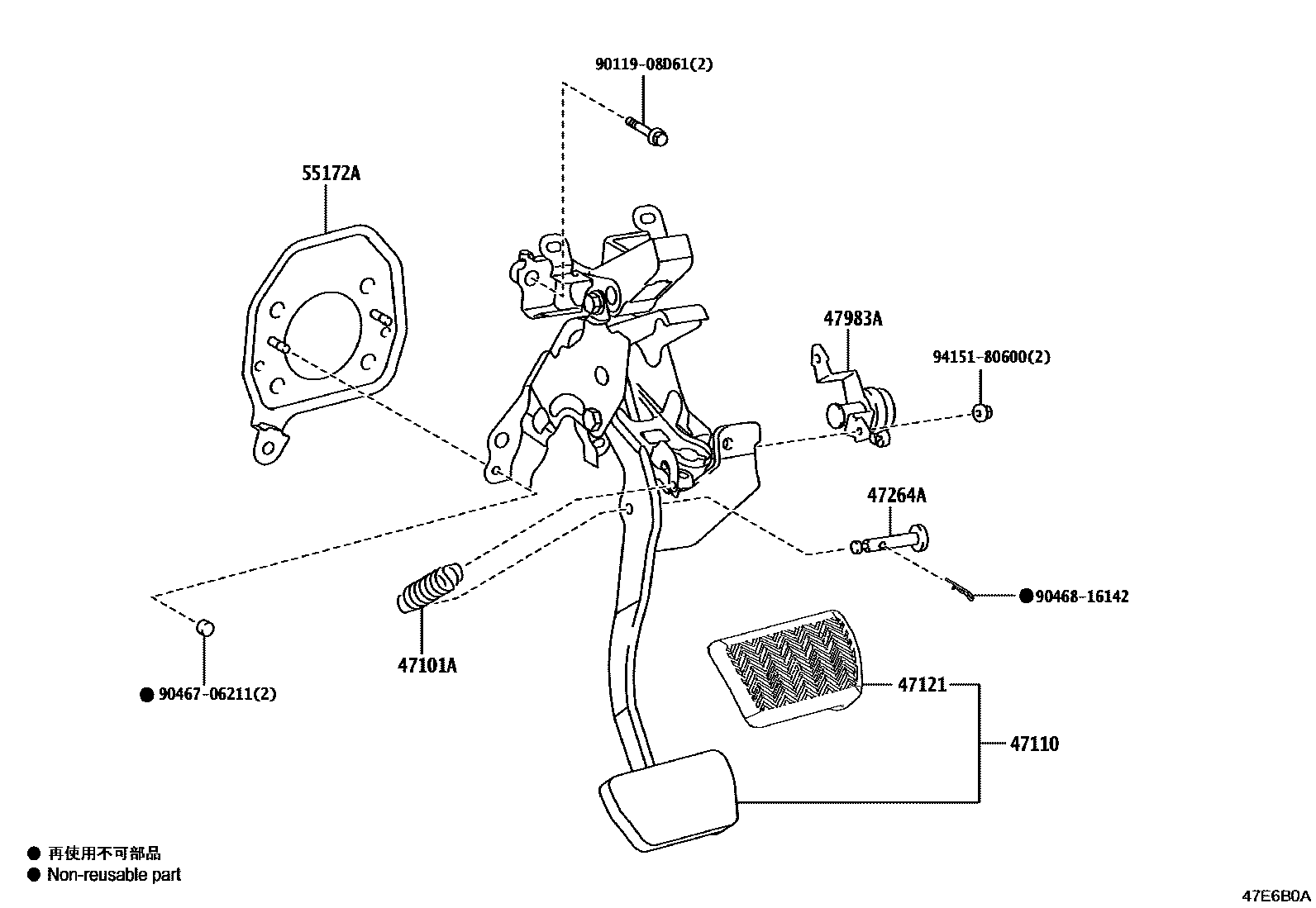

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14088iMAYH1#202312

47110SUPPORT ASSY, BRAKE PEDAL

main47110-52570iMAYH1#..LHD202312

main47110-52580iMAYH1#..RHD202312

47121PAD, BRAKE PEDAL

main47121-16020iMAYH1#202312

47264APIN(FOR PUSH ROD)

main90249-08256iMAYH1#202312

47983ADAMPER, BRAKE TRACTION

main47983-52010iMAYH1#..LHD202312

main47983-52020iMAYH1#..RHD202312

55172ABASE, BRAKE PEDAL SUPPORT

main55172-52070iMAYH1#..LHD202312

main55172-52080iMAYH1#..RHD202312

9011908D61

main90119-08D61

9046706211

main90467-06211

9046816142

main90468-16142

9415180600

main94151-80600

10 parts on this diagram · 2 diagrams in section
