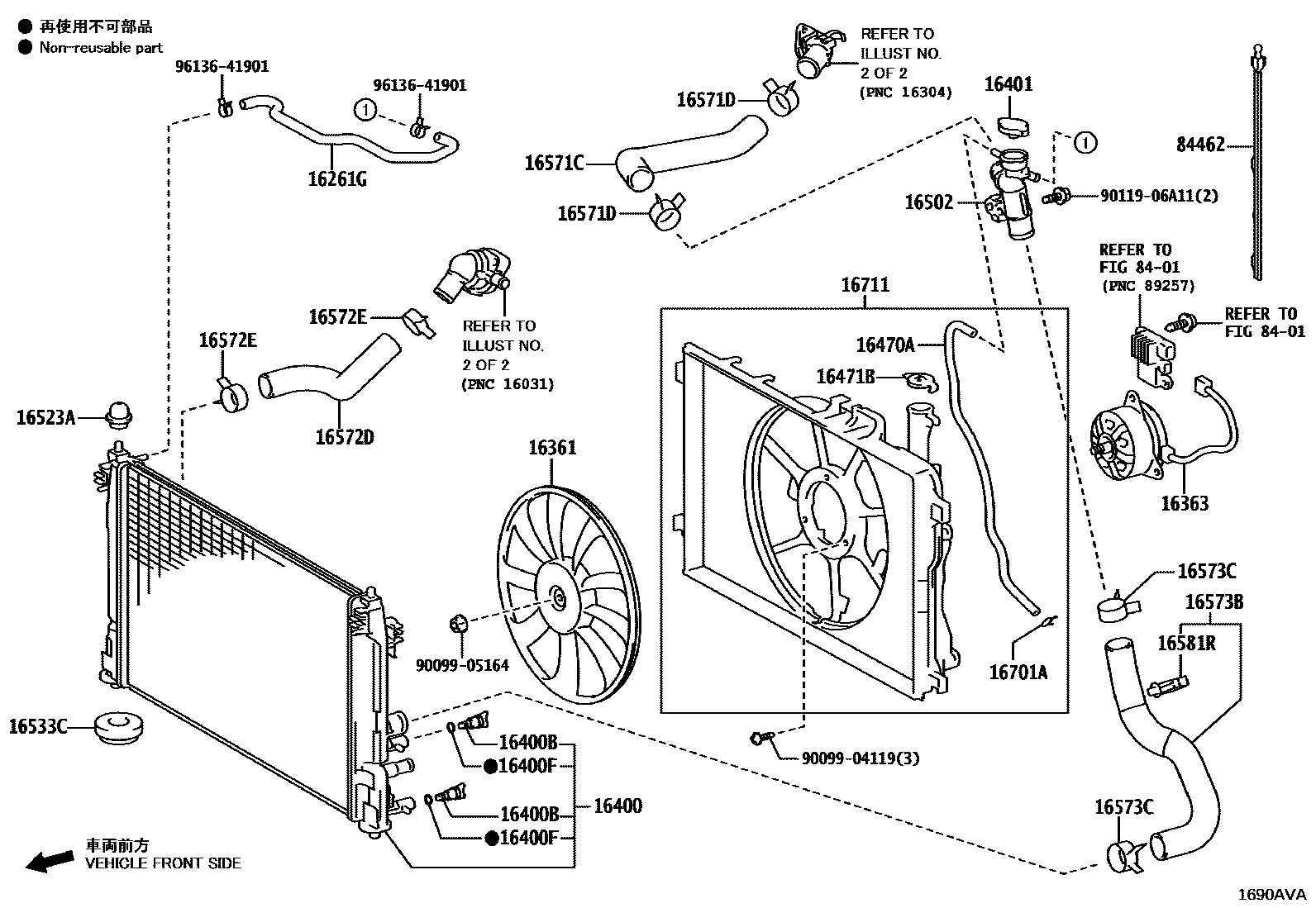

RADIATOR & WATER OUTLET
16261GHOSE, WATER BY-PASS, NO.1
16361FAN
CROATIA SPEC
16363MOTOR, COOLING FAN
CANARY SPEC,TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
16400RADIATOR ASSY
CROATIA SPEC
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
CROATIA SPEC
16471BCAP, RESERVE TANK
16502FILLER SUB-ASSY, WATER
16523ACUSHION, RADIATOR SUPPORT
16533CGROMMET(FOR RADIATOR SUPPORT)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16581RCLAMP, HOSE(FOR RADIATOR HOSE NO.3)
16701ACLIP(FOR FAN SHROUD)
16711SHROUD, FAN
CROATIA SPEC
8401
84462FLOAT, LEVEL WARNING
9009904119
main90099-04119
9009905164
main90099-05164
9011906A11
main90119-06A11
9613641901
main96136-41901
27 parts on this diagram · 3 diagrams in section
