CRANKSHAFT & PISTON

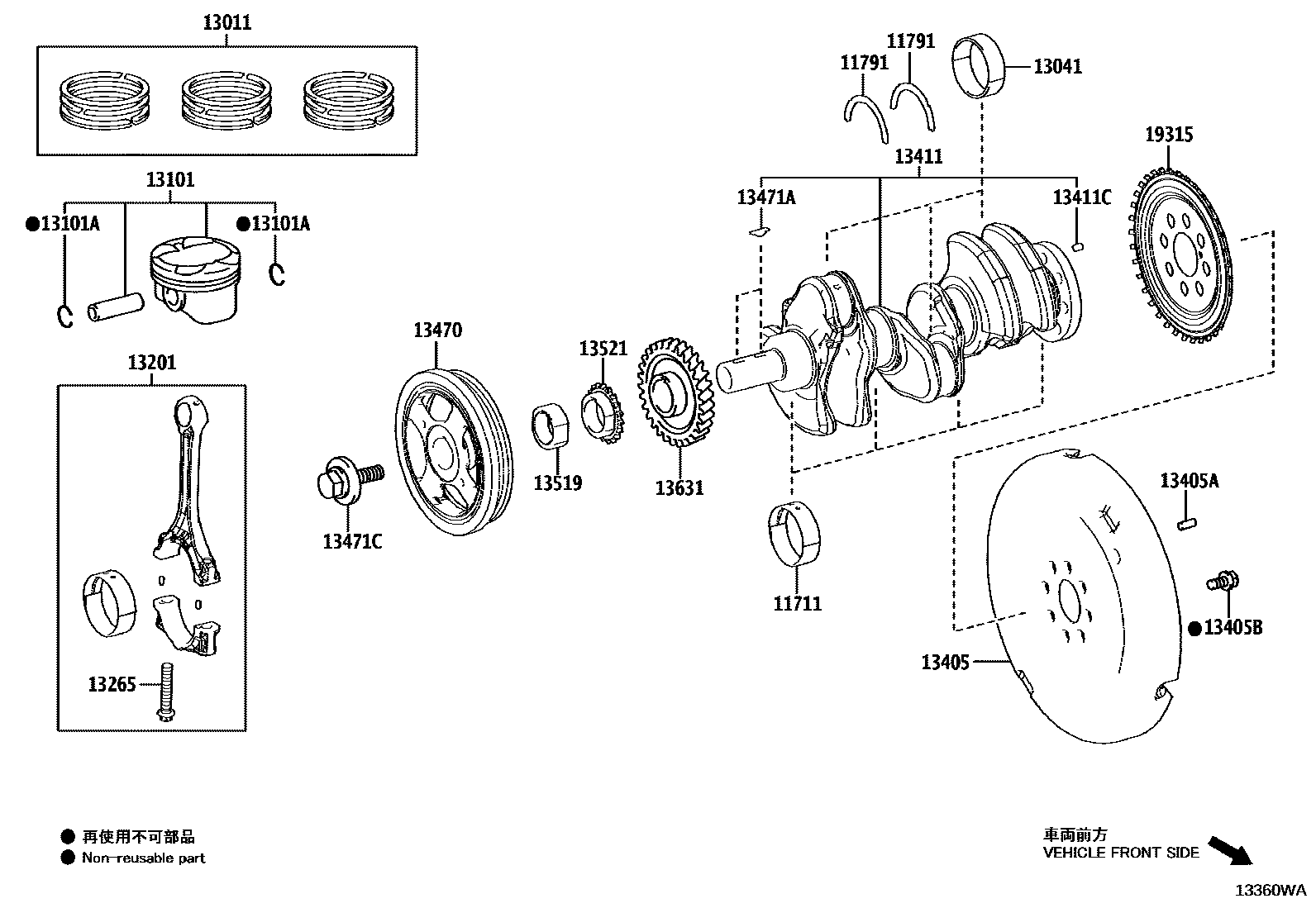

Parts diagram

11711BEARING, CRANKSHAFT

main11701-15061-01i202312

MARK 1,REFER REPAIR MANUAL

main11701-15061-02i202312

MARK 2,REFER REPAIR MANUAL

main11701-15061-03i202312

MARK 3,REFER REPAIR MANUAL

main11701-15061-04i202312

MARK 4,REFER REPAIR MANUAL

main11701-15061-05i202312

MARK 5,REFER REPAIR MANUAL

main11701-15061-06i202312

MARK 6,REFER REPAIR MANUAL

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-15030i202312

STD

13011RING SET, PISTON

main13011-15150i202312

STD

13041BEARING, CONNECTING ROD

main13041-24020-01i202312

MARK 1,REFER REPAIR MANUAL

main13041-24020-02i202312

MARK 2,REFER REPAIR MANUAL

main13041-24020-03i202312

MARK 3,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13101-F2040i202312

STD

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-19019i202312

13201ROD SUB-ASSY, CONNECTING

main13201-29835-A0i202312

MARK A,REFER REPAIR MANUAL

main13201-29835-B0i202312

MARK B,REFER REPAIR MANUAL

main13201-29835-C0i202312

MARK C,REFER REPAIR MANUAL

13265BOLT, CONNECTING ROD

main13265-25020i202312

13405FLYWHEEL SUB-ASSY

main13451-15120i202312

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120i202312

L=18,OD=8

13405BBOLT, FLYWHEEL SETTING

main90105-12404i202312

13411CRANKSHAFT

main13401-15010i202312

(J)

main13401-F3030i202312

(L)

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035i202312

(J)

main90250-C0025i202402

(L)

13470PULLEY ASSY, CRANKSHAFT

main13470-15140i202312-202502

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001i202312

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020i202312

13519GEAR, OIL PUMP DRIVE

main13519-15010i202312

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-15030i202312

13631GEAR, BALANCESHAFT DRIVE

main13631-15010i202312

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-24010i202312

20 parts on this diagram · 1 diagram in section
