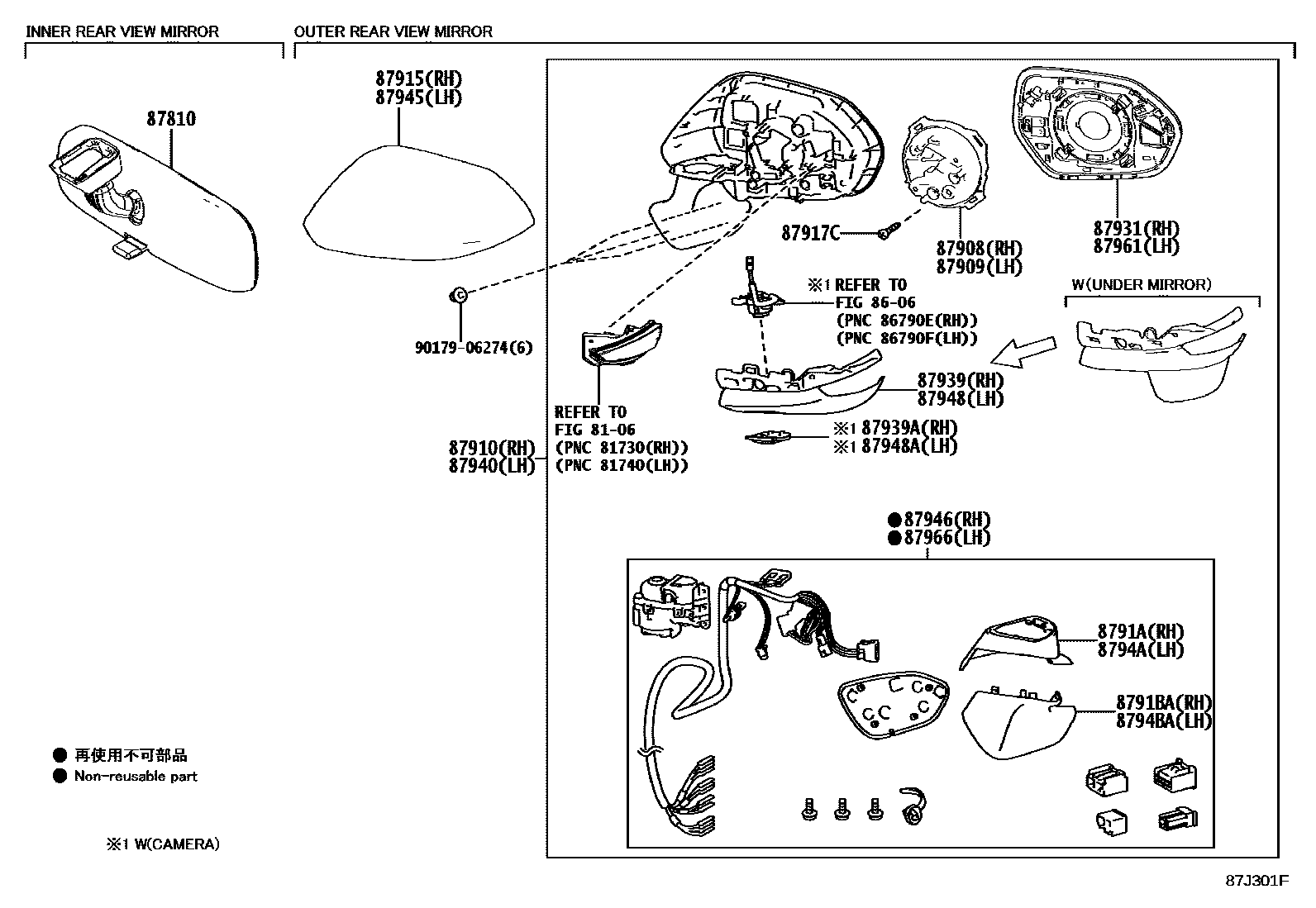

MIRROR
8106
8606
87810MIRROR ASSY, INNER REAR VIEW
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.,REFER86-06:PNC86790E
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1L0
MASSIVE GRAY,1L6
BLACK MC.,209 ,2PN ,2PU ,2SG ,2TY ,2UR ,M23
BLACK MC.,209 ,2KR ,2PN ,2PU ,2SG ,2TX ,2TY ,2UR
BLACK MC.,089 ,1L0 ,1L6 ,209 ,2PN ,2PU ,3T3 ,8W7
BLACK MC.,209 ,2PN ,2PU ,2SG ,2TY ,2UR
BLACK MC.,070 ,089 ,1L0 ,209 ,2KR ,2PN ,2PU ,2TX ,3T3 ,8W7
RED MC.,3T3
BEIGE,4V6
BRASS GOLD ME.,2UB ,5C2
DK.BLUE M.M.,8W7
GRAYISH BLUE,8W2
87917CSCREW, OUTER MIRROR
8791ACOVER, OUTER MIRROR, RH NO.2
NO PAINT REQ.
8791BACOVER, OUTER MIRROR, RH NO.3
87939COVER, OUTER MIRROR HOLE, RH
87939ACOVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.,REFER86-06:PNC86790F
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1L0
MASSIVE GRAY,1L6
BLACK MC.,089 ,1L0 ,1L6 ,209 ,2PN ,2PU ,3T3 ,8W7
BLACK MC.,209 ,2KR ,2PN ,2PU ,2SG ,2TX ,2TY ,2UR
BLACK MC.,209 ,2PN ,2PU ,2SG ,2TY ,2UR
BLACK MC.,209 ,2PN ,2PU ,2SG ,2TY ,2UR ,M23
BLACK MC.,070 ,089 ,1L0 ,209 ,2KR ,2PN ,2PU ,2TX ,3T3 ,8W7
RED MC.,3T3
BEIGE,4V6
BRASS GOLD ME.,2UB ,5C2
DK.BLUE M.M.,8W7
GRAYISH BLUE,8W2
87946RETRACTOR, OUTER MIRROR, RH
87948COVER, OUTER MIRROR HOLE, LH
87948ACOVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
NO PAINT REQ.
8794BACOVER, OUTER MIRROR, LH NO.3
87966RETRACTOR, OUTER MIRROR, LH
9017906274
main90179-06274
23 parts on this diagram · 1 diagram in section
