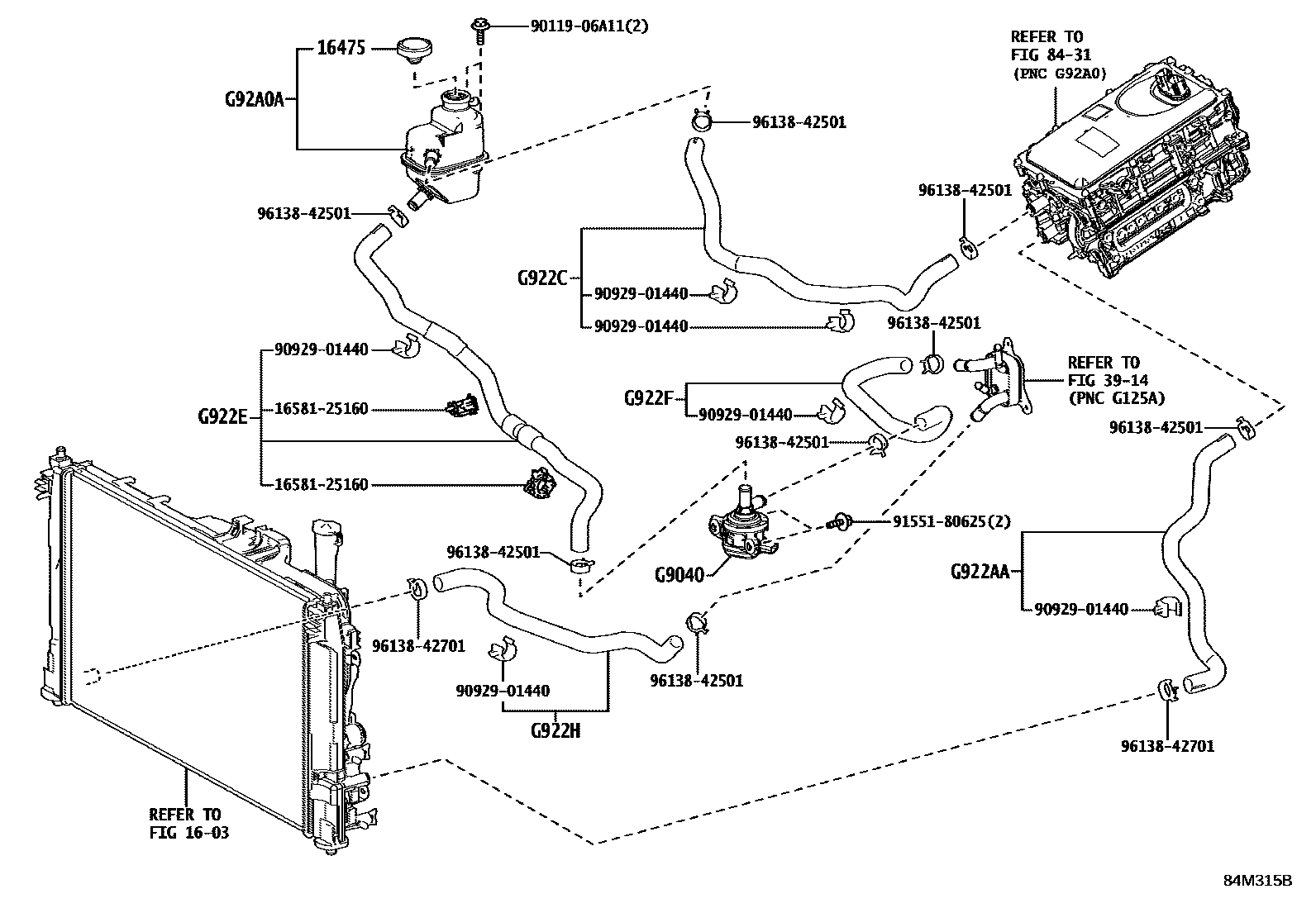

INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-28140iM15AFXE..MXPJ1#202401

3914

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904052030iMXPJ1#202108-202401

MARK=G9040-52030

mainG9040K0010iMXPJ1#202008-202108

MARK=G9040-K0010

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A52010iMXPJ1#202401

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C52010iMXPJ1#202401

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E52030iMXPJ1#202008-202401

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F52040iMXPJ1#202008-202401

G922HHOSE, HYBRID RADIATOR INLET

mainG922H52010iMXPJ1#202008-202401

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H052010iMXPJ1#202008-202401

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

9011906A11

main90119-06A11

9092901440

main90929-01440

9155180625

main91551-80625

9613842501

main96138-42501

9613842701

main96138-42701

17 parts on this diagram · 1 diagram in section
