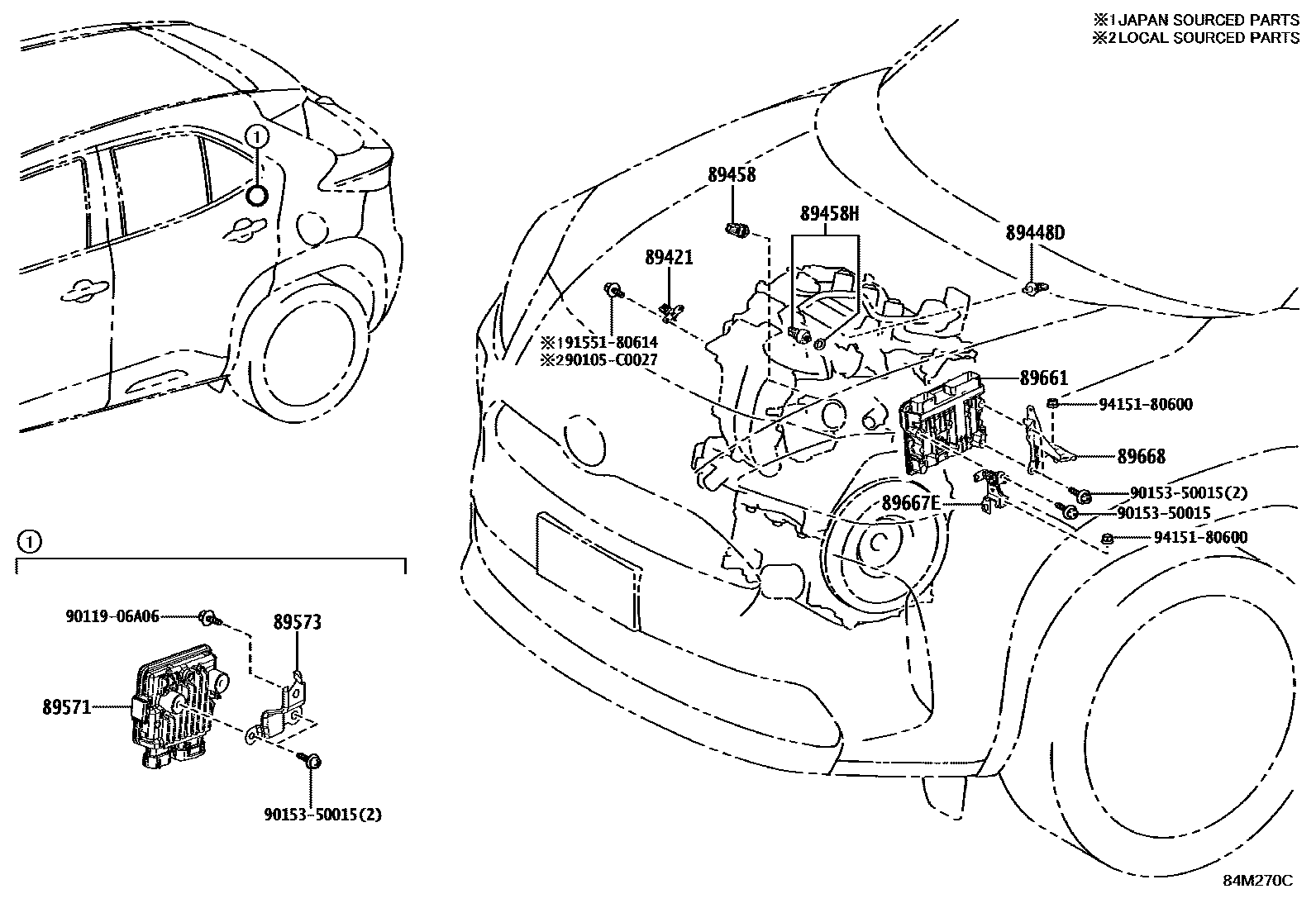

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iMXPJ1#202008-202401

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iMXPJ1#202008-202401

89458SENSOR, FUEL PRESSURE

main89458-33030iMXPB10202008-202401

main89458-33041iMXPJ1#202008-202206

main89458-33042iMXPJ1#202207-202401

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041iMXPB10202008-202206

main89458-33042iMXPB10202207-202401

89571COMPUTER, FUEL PUMP CONTROL

main89570-52070iMXPJ1#202401

main89571-10010iMXPB10,MXPJ1#202105-202401

main89571-K0010iMXPB10,MXPJ1#202008-202104

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-K0010iMXPB10,MXPJ1#202008-202401

89661COMPUTER, ENGINE CONTROL

main89661-5CA60iMXPB10202008-202106

DENSO,*614

sub89661-5CA61

main89661-5CA61iMXPB10202107-202401

DENSO,*614

main89661-5CB00iMXPJ10202008-202011

DENSO,*614

sub89661-5CB01

main89661-5CB01iMXPJ10202012-202106

DENSO,*614

sub89661-5CB02

main89661-5CB02iMXPJ10202107-202401

DENSO,*614

main89661-5CB10iMXPJ15202008-202011

DENSO,*614

sub89661-5CB11

main89661-5CB11iMXPJ15202012-202106

DENSO,*614

sub89661-5CB12

main89661-5CB12iMXPJ15202107-202401

DENSO,*614

main89661-5CK00iMXPJ1#202401

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-K0010iMXPB10202008-202401

main89667-K0020iMXPJ1#202008-202401

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52430iMXPB10202008-202401

main89668-K0020iMXPJ1#202008-202401

90105C0027

main90105-C0027

9011906A06

main90119-06A06

9015350015

main90153-50015

9155180614

main91551-80614

9415180600

main94151-80600

14 parts on this diagram · 2 diagrams in section
