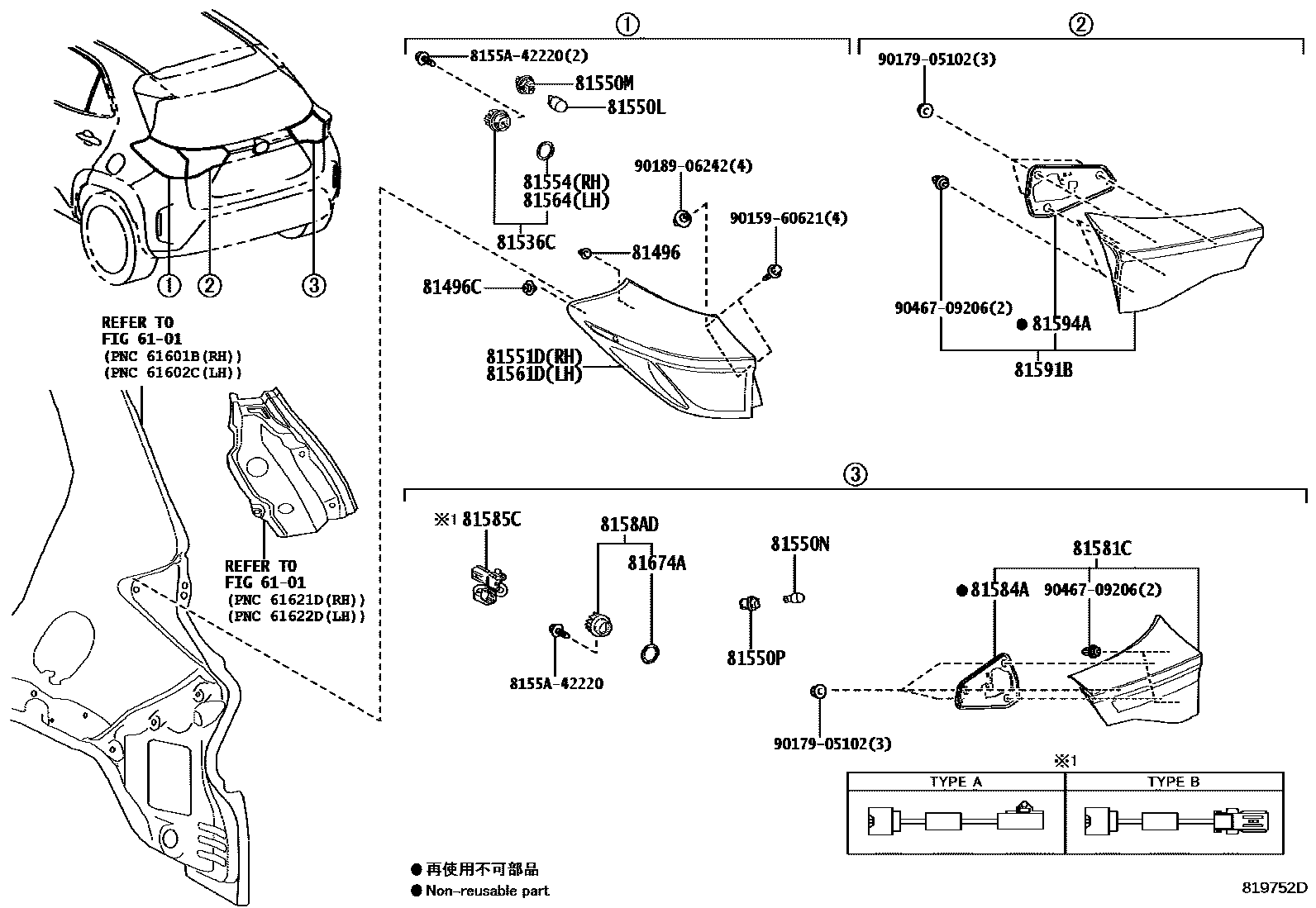

REAR COMBINATION LAMP
6101
81496GUIDE, REAR COMBINATION LAMP
81496CGUIDE, REAR COMBINATION LAMP, NO.2
81536CLED, TAIL & STOP LAMP
81550LBULB, REAR TURN SIGNAL LAMP
12V 21W,AMBER
81550MSOCKET, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
12V 16W
81550PSOCKET, BACK UP LAMP
81551DLENS & BODY, REAR COMBINATION LAMP, RH
HEADLAMP-LED
81554GASKET, REAR COMBINATION LAMP BODY, RH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
HEADLAMP-LED
81564GASKET, REAR COMBINATION LAMP BODY, LH
81581CLENS AND BODY, REAR LAMP, RH
REFER TO PNC 81585C
sub81581-52431
WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&HEADLAMP-LED
HEADLAMP-LED
81584AGASKET, REAR LAMP RH
HEADLAMP-LED
81585CSOCKET & WIRE, REAR LAMP, RH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
HEADLAMP-LED
8158ADLED, REAR FOG LAMP
81591BLENS AND BODY, REAR LAMP, LH
sub81590-52401
sub81591-52421
WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&HEADLAMP-LED
HEADLAMP-LED
81594AGASKET, REAR LAMP LH
HEADLAMP-LED
81674AGASKET, BACK-UP LAMP
WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&HEADLAMP-LED
HEADLAMP-LED
8155A42220
main8155A-42220
9015960621
main90159-60621
9017905102
main90179-05102
9018906242
main90189-06242
9046709206
main90467-09206
24 parts on this diagram · 2 diagrams in section
